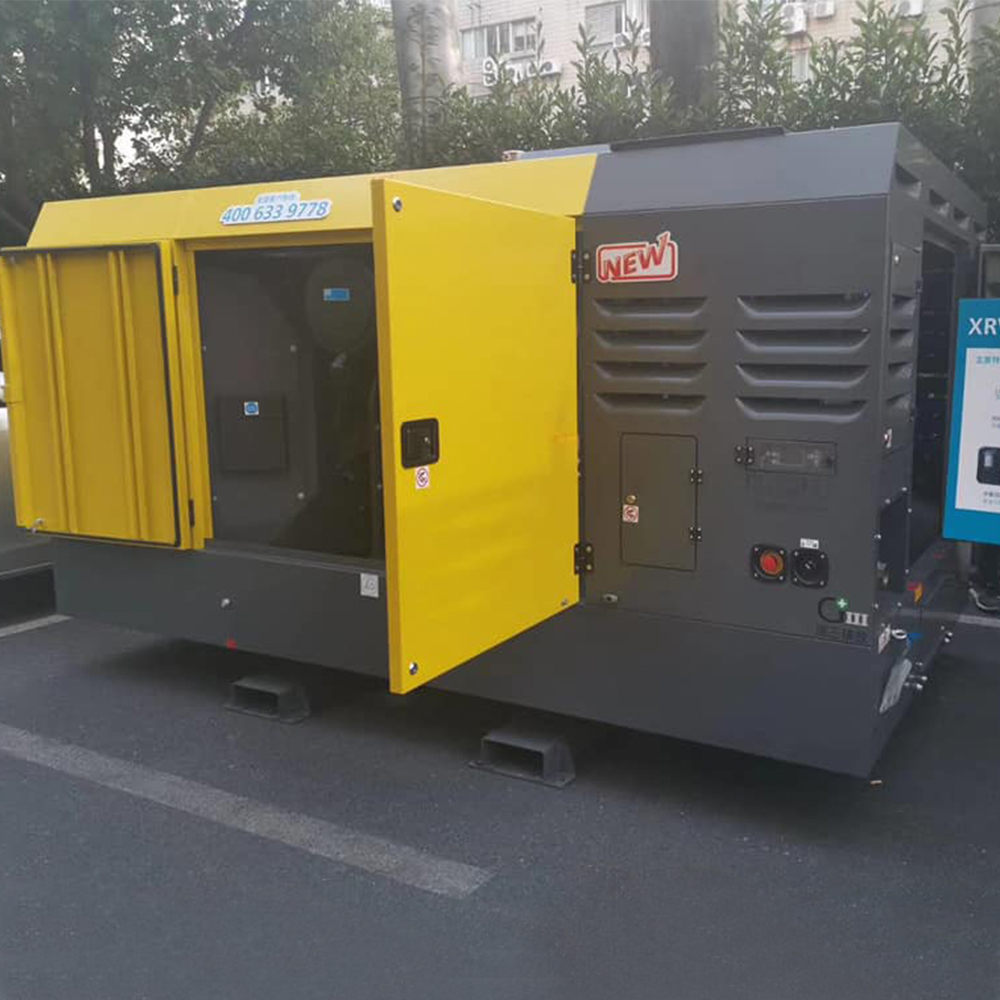

XRVS1100 is a new product designed by Atlas Copco according to the actual needs of customers with excellent performance, reliability and durability, and low overall cost. The model is paired with Atlas Copco’s high-efficiency screw rotor, powered by a National III emission Cummins engine with a reasonable pressure and air volume ratio, which is especially suitable for drilling applications. It adopts the technologies of energy-saving expert and fuel-saving expert, which can effectively reduce the fuel consumption of the whole machine. The humanised design and solid structure make the equipment strong enough to withstand all kinds of harsh working conditions and easy to maintain. All these are aimed at improving the sustainable productivity of customers.
Engine manufacturer： Commins
Exhaust volume (m³/min)：30/27
Rated working pressure (bar)：20/25
Energy saving expert ECO：√
Fuel saving expert：√

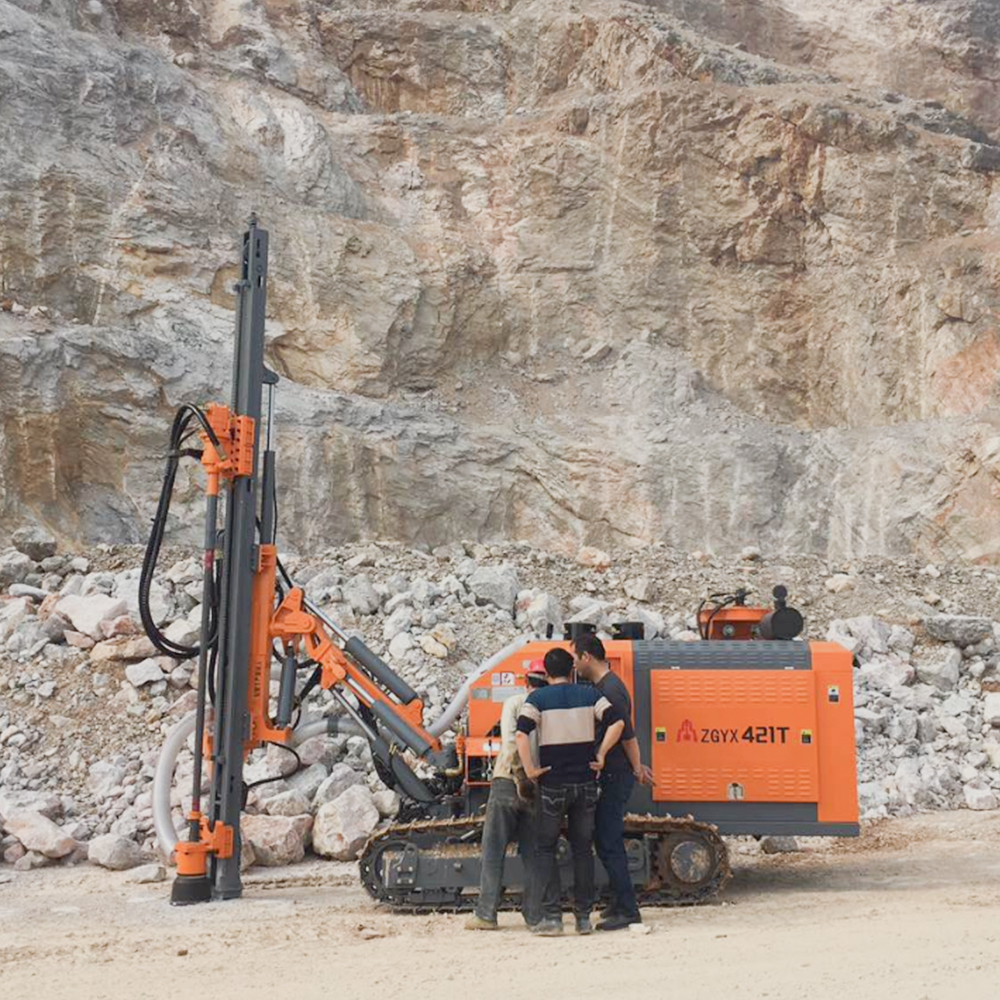

As the key equipment for modern mining and infrastructure construction, ZGYX-420/420-1/420D series split open pit drilling rigs have attracted much attention in the industry due to their excellent performance and flexible adaptability. This series of drilling rigs includes three models: ZGYX-420, ZGYX-420-1 and ZGYX-420D, which are widely used in perforating operations in metal mines, non-metal mines and large-scale earthwork projects.
ZGYX-420D
Hole depth:30m
Drill Pipe Sizes:Φ76mm×3,000mm
Hole Dia:Φ110-138mm

Today, our company welcomes an important Malaysian customer, who is the senior representative of a local water company in Malaysia. As people’s demand for drinking water quality continues to improve, this customer adheres to the concept of letting the public drink better and healthier water, after a number of visits and comparisons, and finally chose to buy an advanced MW350 water well drilling rig in our company.
Drill Hole Diameter:140-325mm
Drilling depth:350m
Walking speed:2.5km/h
Equipped capacitor:91kW

MWGF150 multi-functional crawler drilling rig is a multi-purpose drilling rigintegrating photovoltaicpiling,foundation piling,blasting hole drilling,and down-the-hole drilling.It adopts a new single-ribhigh-strength crawler and an excavator travel motor,which offers the advantages of strong climbingability,hard to be damaged,and long service life.
The drilling rig is equipped with Yuchai 75KW turbocharged diesel engine,and adopts new hydraulictechnology with low air consumption.The rotary gearbox adopts dual motors and high-torque gearbox,which is convenient to move and compact structure.At the same time,the sliding frame has the functionof expansion and contraction compensation.When drilling,the sliding frame supports the ground,andthe drilling performance is stable.The diameter of photovoltaic piling can reach 150mm-400mm,and thediameter of DTH hammer construction can reach 100mm-350mm.The rig adopts a high-torque motor.The drilling rig has the characteristics of flexible maneuverability,strong climbing ability,suitable forrough site operations,convenient perforation and displacement,high drilling efficiency,easy mainte-nance and high reliability.It is an ideal multi-purpose drilling rig for photovoltaic piling,mining,road,water conservancy,power station and other construction facilities。

MW300G Reverse Circulation Drilling Rig: Efficient and Stable Engineering Tool
In modern engineering construction, efficient and stable drilling equipment is the key to the smooth progress of the project. MW300G Reverse Circulation Drilling Rig, with its excellent technical parameters and outstanding performance characteristics, has become an ideal choice for mining, infrastructure construction, water well drilling and other fields.
Its drilling diameter ranges from 89-150mm, and the maximum drilling depth reaches 300m, which is applicable to the drilling needs of a variety of stratum conditions, whether it is loose and soft soil or hard rock layer, all can work efficiently. The main engine has a lifting force of 20T and a maximum rotary torque of 9000-4500N-m, providing strong power output; the feed efficiency of 20-35m/h ensures fast drilling and shortens the working period. Recommended air consumption is 18-35m³/min with 1.7-3.0MPa working air pressure, which not only guarantees the drilling efficiency, but also adapts to different air source conditions; the climbing capacity is 21°, and the crawler chassis design makes it move flexibly in complex terrain, and it is easy to cope with mountainous areas, construction sites and other scenarios. The machine weighs 8.2 tonnes and measures 7000×1950×2500mm, which ensures stability while taking into account the convenience of transport and on-site deployment; the 92kW engine power provides long-lasting power and reduces energy consumption and maintenance costs.

LUY180-19 is a mobile screw air compressor manufactured by Liuzhou Fuda Machinery Co., Ltd, designed for mining, construction, municipal engineering and other high-pressure, high-flow compressed air demand scenarios. As a wholly-owned subsidiary of Swedish Atlas Copco Group, Liuzhou Fuda relies on the group’s hundred years of technological accumulation and deep understanding of the Chinese market working conditions to create industrial equipment of excellent quality.

Exhaust pressure: 19 bar
Exhaust flow: 18 m³/min
Engine: Yuchai 191kw
Overall dimensions: 2926 mm × 1660 mm × 1920 mm
Weight: 3000 kg
Noise level: 83±3 dB(A)

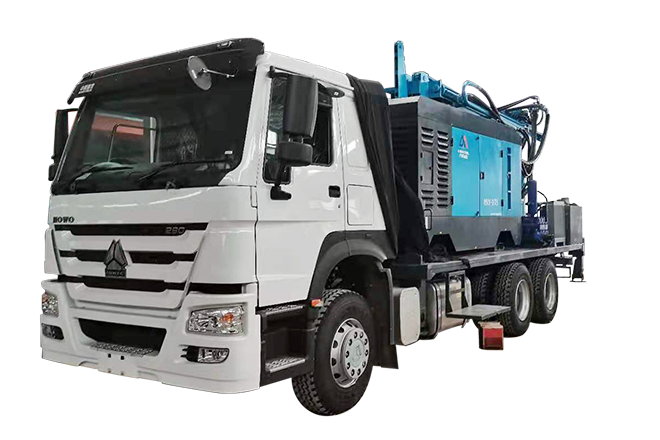

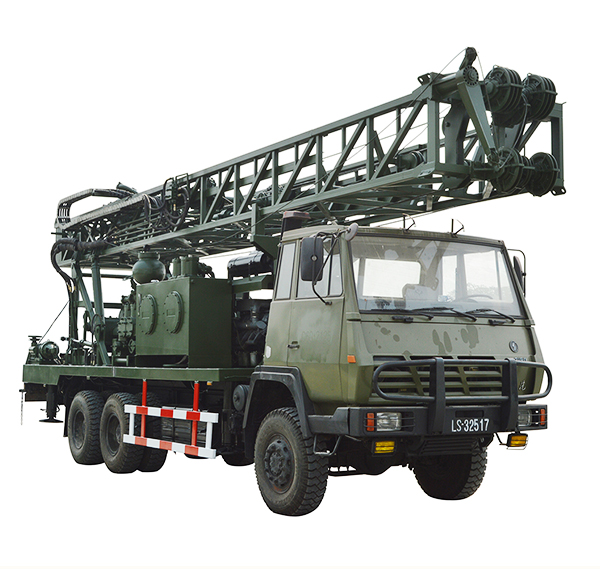

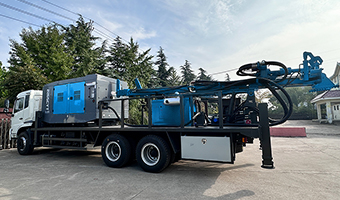

MWT series water well drilling rig is a vehicle-mounted air compressor type water well drilling rig with high efficiency and stability, which is widely used in excavation of domestic water, irrigation water and industrial water.
MWT250 water well drilling rig is an intelligent dual-use water and gas drilling rig designed for complex geological conditions. It adopts the modular design concept, and realises the flexible adaptation of drilling scenarios through the dual power system switching technology. Its core innovation lies in the patented rotary head structure, which can seamlessly switch between high-pressure air compressor (pneumatic mode) and high-pressure mud pump (hydraulic mode), breaking through the limitations of the single power system of traditional drilling rigs. Adopting the new four-wheel drive off-road vehicle chassis, matched with the PTO (Power Take-Off) system, realising that the drilling rig and the chassis share the same diesel engine.
Our vehicle-mounted water well drilling rigs are customised products, and customers can customise them according to their actual needs. Customers can choose from chassis brand, boom length, mud pump selection, chassis mounted air compressor and so on. Vehicle-mounted water well drilling rigs are divided into different models according to the drilling depth, and the maximum drilling depth can reach 1500 metres.

D Miningwell T635 fully hydraulic down hole drilling rig is designed for open pit mining, rock drilling and engineering exploration. Its core strengths are efficient rock drilling, flexibility in adapting to complex terrain and low energy consumption.
The track levelling device makes the drilling rig’s centre of gravity more stable up and down the slope, and the track adhesion is stronger. The protection design of the drilling chamber and cab eliminates personnel safety hazards; the drilling rig can drill multiple holes in one positioning, and the flexible drilling arm and off-road function can cope with the requirements of drilling in a variety of primitive terrains. The drilling speed can be increased by 50% compared with the high-pressure integrated down hole drilling rig when the hole diameter is ≤115mm and the hole depth is less than 15m;
Equipped with self-designed ZY103/104 high-frequency high-power hydraulic rock drill, the energy consumption of the drilling rig is unrivalled.

The 500SCYT stationary screw air compressor is equipped with a 563kW high power motor, which can meet the high load demand of large industrial scenarios. Its two-stage compression design combined with the high-efficiency screw mainframe ensures stable output at the rated working pressure of 34/25 bar, with an exhaust capacity of 34/41m³/min (corresponding to different pressure conditions), taking into account the dual demands of high pressure and high flow rate, which is suitable for high-energy consumption and high-precision production environments.

This series of products is designed for Wells and geothermal projects and related compressed gas stations that require Φ115-254mm Wells drilling rigs.The S100T compressor is capable of generating high-pressure air up to 25Bar, which is suitable for operating environments that require highly pressurised air. With an air flow rate of 1000 cfm (approximately 31 cubic metres per minute), the S100T compressor ensures a constant supply of air during intensive operations. The range has been upgraded and optimised for continuous use and transport size requirements. Upgraded and optimised for continuous use and transport size requirements. More durability and lower fuel consumption.

MWLH-800 Full Hydraulic Core Drilling Rig is a high-efficiency drilling equipment designed for deep-hole geological exploration, with the following core parameters and technical features:
Performance Parameters
Drilling capacity: Supporting three standard core pipe diameters of BQ, NQ and HQ, the maximum drilling depth reaches 800-1200 metres, adapting to complex stratigraphic conditions.
Power system: Hydraulically driven power head with 0-1400rpm rotary speed and 1800N-m torque, combined with 150kN propulsion force and 300kN lifting force to ensure drilling efficiency and stability.
Modular design: Split structure, power head stroke 3500mm, machine weight 6000kg, dimensions 5900×2500×2100mm, easy to transport and rapid deployment.

This drilling rig is powered by Yuchai YC6A180Z and equipped with 10/14.5 screw air compressor. Equipped with φ60mm three-metre
drilling rod. It is equipped with dry integrator as standard.The machine has strengthened the strength of each structural part, which can fully withstand the requirements of the original ZGYX-420A drilling rig.

Atlas Copco mobile screw air compressor X-AIR+ 600-17 is powered by Cummins National IV diesel engine.
The air compressor operates at 78 dB noise control, adapting to noise-sensitive operating environments; the Atlas Copco air compressor with the lowest life cycle cost. Atlas Copco air compressors are energy-efficient and have a small footprint, making them suitable for complex scenarios such as mine blasting and construction sites. Towable design for flexibility and ease of operation. Reduced long-term operating costs through fuel economy and low maintenance requirements.

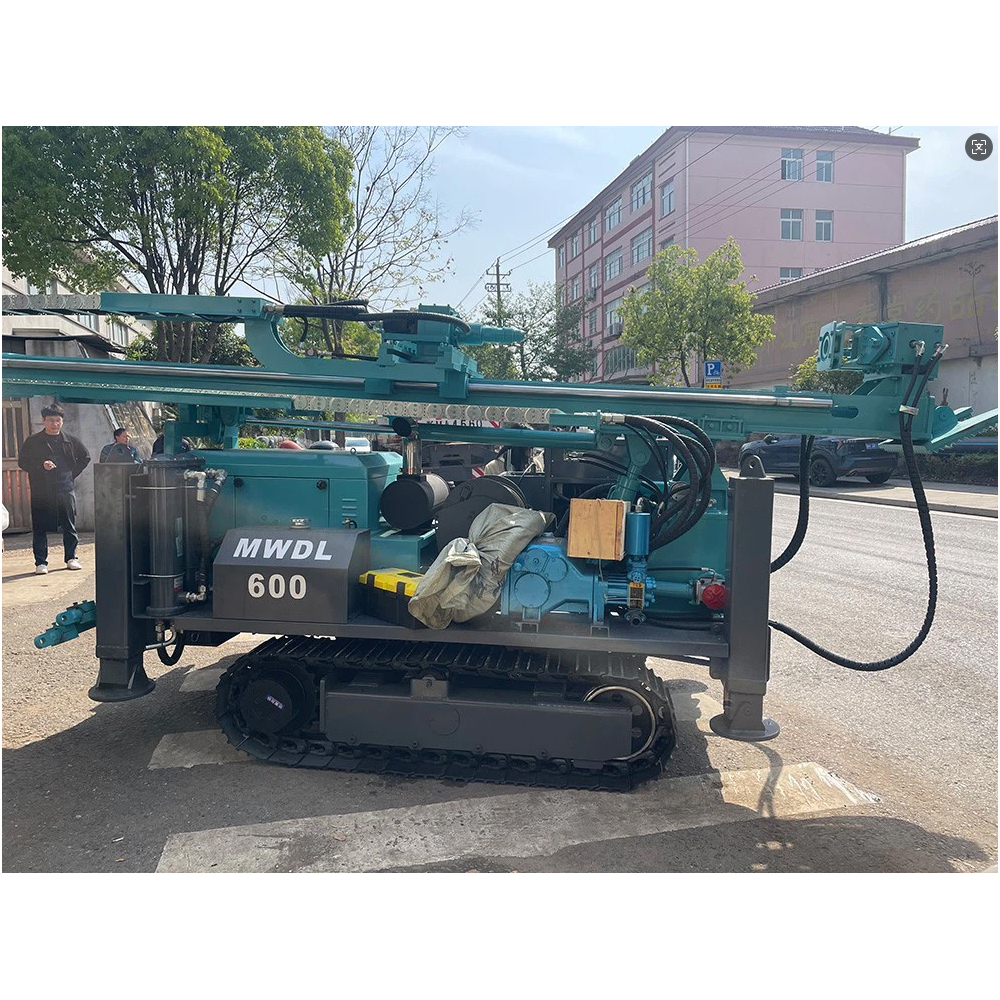

This MWDL600 core drilling rig is a fully hydraulic core drilling rig that we are about to send out to our customers.This machine is designed for mineral exploration, geological sampling and water well drilling.The ‘MWDL Series’ is a fully hydraulic rope core drilling rig developed by D Mingwell.The MWDL Series is the most versatile and efficient model in the industry today. The ‘MWDL Series’ integrates D Mingwell’s latest technology and can be customised to suit a wide range of needs to suit a variety of working environments. It can be easily completed for rock, concrete and other hard ground. With its hydraulic clamping system supporting 45°-90° drilling angle adjustment, drilling tasks can be completed with ease!

We specialize in producing efficient wheeled water well drilling rigs, which are easy to move and have a strong drilling depth. They are suitable for rural irrigation, construction site water supply, agricultural drilling, etc. We provide customized solutions, durable and energy-saving, 24-hour after-sales support, consult now to get a quote!

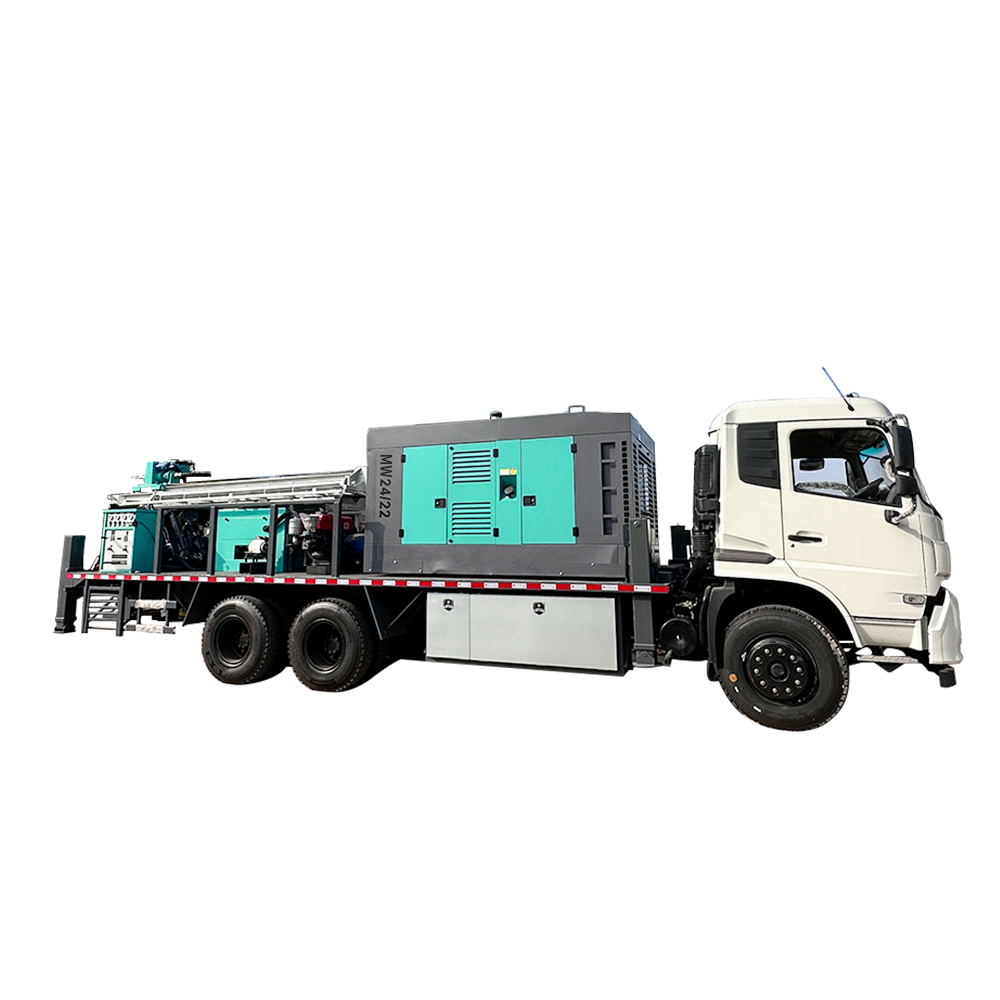

MWT series water well drilling rig is a vehicle-mounted air compressor type water well drilling rig, which has the characteristics of high efficiency and stability, and is widely used in the excavation of domestic water, irrigation water and industrial water.

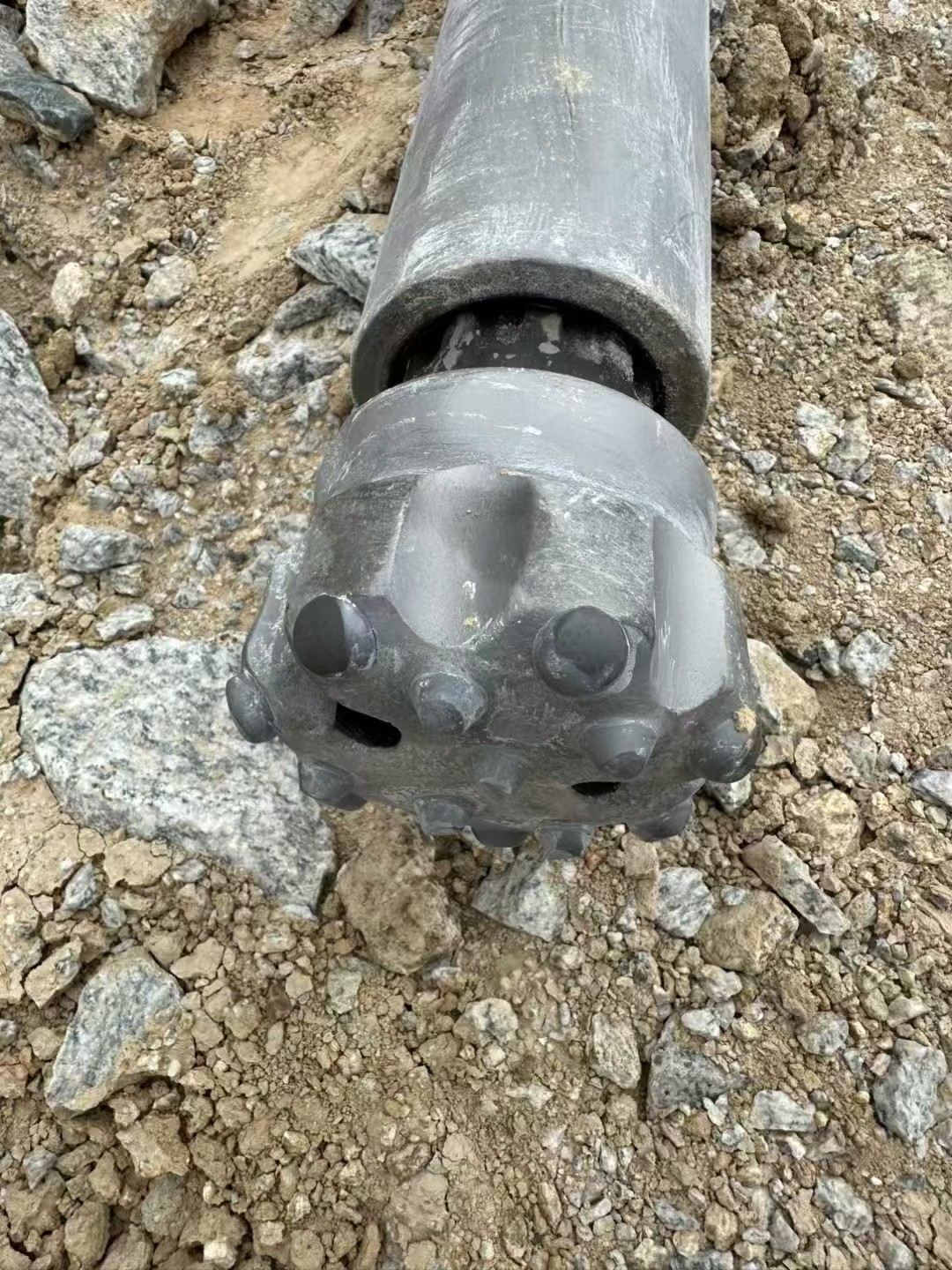

D Miningwell DTH hammer works efficiently at the same time, reliability and long life are the advantages of our products. Among all industrial equipment, DTH hammer and drill have the worst working environment, and the working process is uncontrollable and unpredictable. D Miningwell DTH hammer has high matching precision of its internal parts. D Miningwell guarantees the material and processing quality of each part of DTH hammer, and good lubrication conditions can significantly improve the efficiency, stability and life of DTH hammer.

D Miningwell drilling dth hammer is widely used for drilling various medium-hard, high-hard and other tough rocks with poor drillability in geotechnical engineering.

D Miningwell’s DTH hammer has the advantages of high drilling efficiency, low failure rate and long service life. Our drill tools enable efficient and economical drilling even in all types of hard and abrasive harsh rocks.

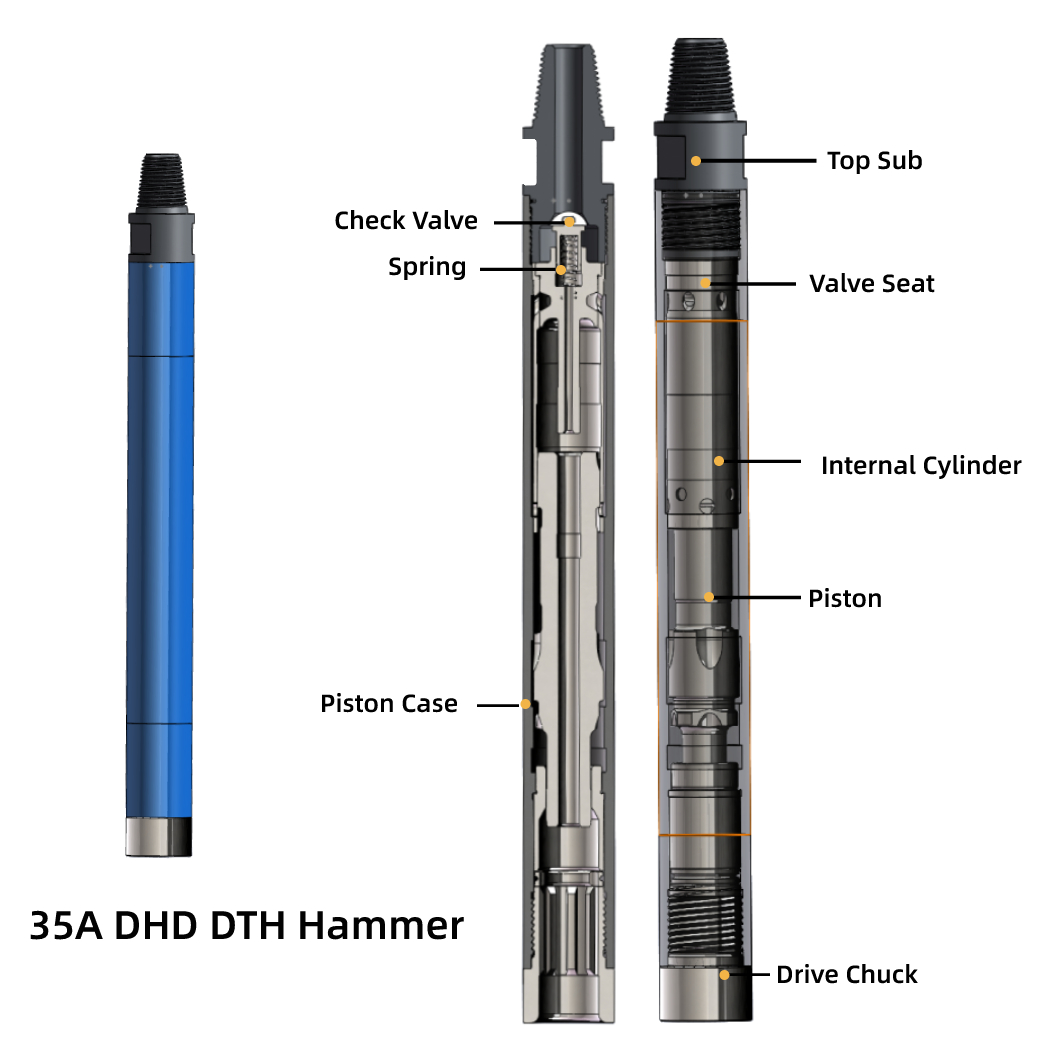

The DTH hammer is pneumatically driven, with compressed air propelling it forward to impact and break the rock. The reciprocating motion of the piston is controlled by the gas distribution device, and the impact drill bit transmits energy to the drill bit to break the rock. Compressed air also enters the hole through the drill (exhaust), blowing chips and dust out of the hole.

The DMiningwell Crawler water well drilling rig 350III offers low-cost drilling tools. This rig is equipped with features that make it a reliable and efficient choice for drilling water wells. With its crawler design, it can access various terrains. The low-cost drilling tools ensure cost-effectiveness without compromising on quality. The rig is suitable for different applications and provides a practical solution for those in need of water well drilling equipment.

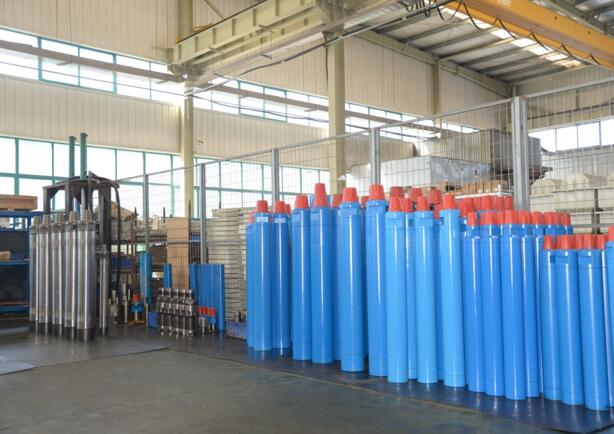

D Miningwell was founded in Quzhou city, China in 2001. For more than 28 years production and operation process. D Miningwell has been on the leading edge of mining equipment. We has its own drilling rig, DTH hammer, and drill pipe production workshops. provides a wide range of quality tools to mining, tunnelling, quarrying, water-well projects and urban transportation construction. D Miningwell is committed to providing customers with the most efficient and cost-effective drilling solution. Our team of drilling specialists are standing by to assist.

DMiningwell 416T-1 small split down-the-hole drill rig is mainly used in quarries, cement mines, open-pit coal mines and other types of mines. It is equipped with a 3.5-inch impactor, a main hole diameter of 90, high drilling efficiency, excellent dust collection effect, and a wide range of applications. It is widely used in mines and national defense, transportation, water conservancy, stonework and other projects. It is an ideal rock drilling equipment that is deeply welcomed by users.

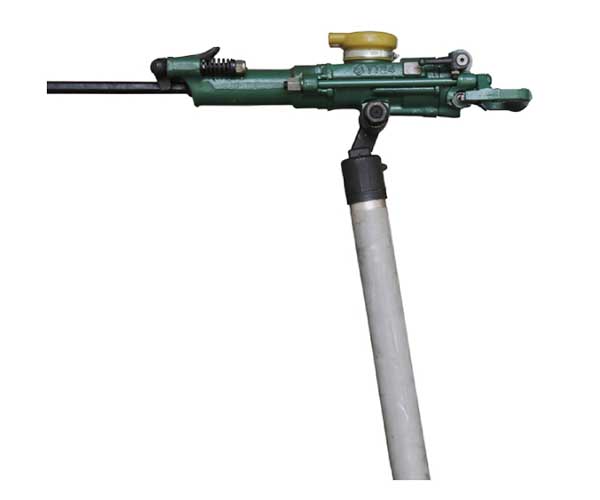

The air-leg rock drill is installed on the air leg for operation, and the air leg can play the role of support and propulsion, which reduces the labor intensity of the operator, and the rock drilling efficiency is higher than the former. The drilling depth is 2-5m and the diameter is 34- 42mm horizontal or with a certain inclination of the blasthole, which is widely used in mines. Such as YT23, YT24, YT28, YTP26 and other models are such rock drills.

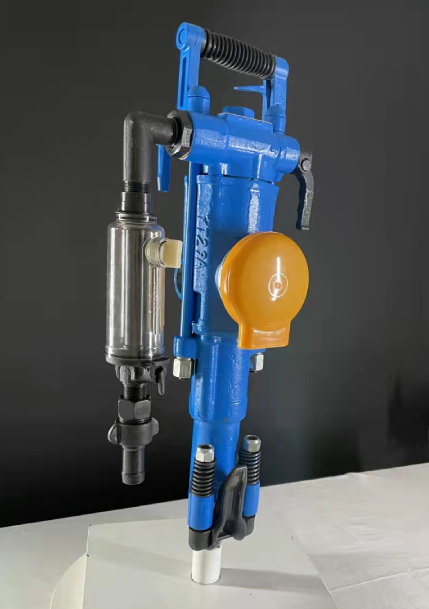

The weight of the hand-held rock drill is relatively light, generally below 25kg, and it is operated by hand when working. A variety of small diameter and shallow holes can be drilled, generally only down holes and near-horizontal holes. Because it relies on manual operation, high labor intensity, small impact energy and torque, and slow rock drilling speed, it is rarely used in underground mines now. Rock drills belonging to this category include models such as Y3 and Y26.

D Miningwell DTH hammer adopts advanced drilling theory design, which enables our DTH hammer to obtain good energy transmission, fast drilling speed and low air consumption. The raw materials are of good quality, the processing technology is advanced, the performance is stable, and the service life is long. Easy to use, easy to install and remove, easy to service, easy to service.

The DMiningwell MW series crawler-type deep well drilling rigs are highly remarkable. Their operating system is comfortable and convenient, with an integrated console for easy operation, a single-lever-controlled dual-pump confluence rotation system, and a hoisting-priority system to save time. The top drive power head is mature and reliable, having over 20 years of proven technology and a long lifespan. The patented double-isolation rotary joint meets different drilling process needs. The large-amplitude telescopic drill mast offers high stability and meets special construction requirements with adjustable gaps and short transport size. It also has upgrade options and focuses on safety details like the Desert Storm air filter system and safety locks. The hydraulic system is powerful and efficient, precisely configured and using quality components, making these drilling rigs stand out in the industry.

Dth hammer is mainly used in: engineering survey, mineral exploration, bolt hole forming, water well hole forming, pile foundation hole forming, oil and gas forming hole, ground source air conditioning hole forming, blasting hole, etc.

Assembly process and principle
1.Initial installation
2.Drill bit connection
3.Sealing treatment
4.Overall debugging

First you need to consider where your rock drill is going to be used and how big of a hole are you going to drill? How soft is the rock? Is the punching direction down, horizontal or up?

1. The larger the aperture, the larger the rock drill model.
2. The higher the hardness, the higher the impact energy and power of the rock drill.
3. The drilling direction determines the support method you choose for the rock drill. There are hand-held and outriggers.
