Composition and configuration selection of Truck-mounted water well drilling rig

With the continuous development of science and technology, machinery and equipment are developing in the direction of automation, and truck-mounted water well drilling rig are also one of them. In the drilling rig industry, the automation and remote control technology of truck-mounted drilling rigs are getting faster and faster, which is also the general trend of future development. The benefits brought by the automated production of truck-mounted drilling rigs are that it improves the production efficiency of truck-mounted drilling rigs, effectively reduces production costs, and virtually improves production quality.


The mud pump of the D Miningwell truck-mounted drilling rig has a relatively strong self-priming capacity, and the flow rate can be adjusted to 10 levels to meet production;
At the same time, the drill pipe of the truck-mounted drilling rig has good performance and large self-weight, and high-efficiency production can be completed by relying on the self-weight pressure when drilling;
The hydraulic pressure of the drilling rig is strong, which can reduce the labor intensity of the operators and save the operators at the same time;

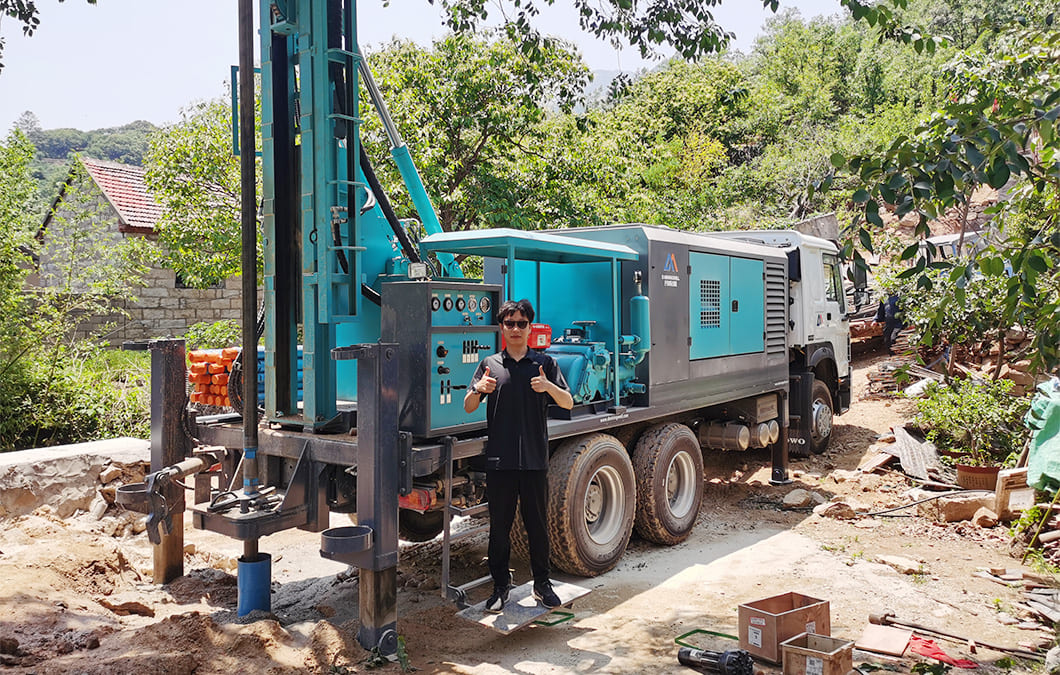

The whole vehicle of D Miningwell truck-mounted drilling rig is equipped with four sets of hydraulic outriggers. The extension length of different legs can be adjusted at will to adapt to different workplaces, and the forward and reverse circulation work of the water well drilling rig can be realized on the operating table, so that it can be operated Convenient and flexible production.
The three major components of a truck-mounted water well drilling rig are trucks, water well drilling rigs, air compressors or mud pumps. The configuration selection of the vehicle-mounted water well drilling rig is mainly selected according to the customer's drilling depth and diameter and the customer's construction conditions.

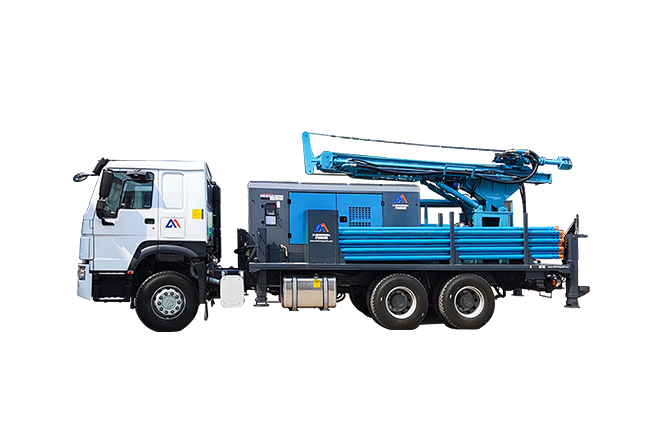

D Miningwell is named MWT200-MWT1000 according to the drilling depth, which means that the water well drilling rig can achieve drilling depth from 200 meters to 1000 meters, and the drilling rigs above 1,000 meters can be customized according to customer requirements.
The following is a detailed introduction to the configuration options of the vehicle-mounted water well drilling rig.

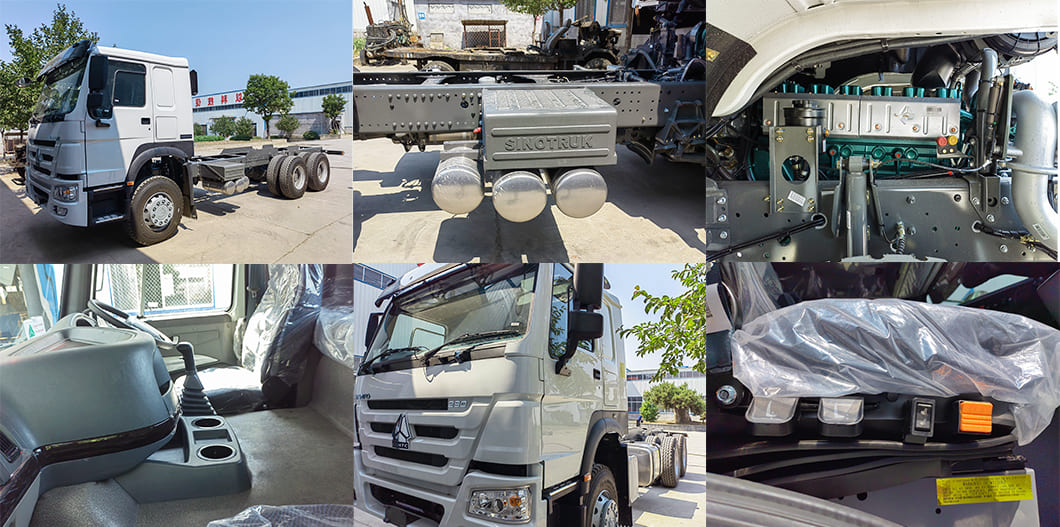

1. Truck
For truck mounted water well drilling rigs, D Miningwell can provide multi-brand options such as HOWO DONGFENG MAN
D Miningwell currently chooses the most brand is China HOWO, and the truck also needs to be configured with appropriate specifications according to the customer's drilling requirements, such as 4X2, 4X4, 6X4, 6X6, 8X4. For detailed parameters, see the configuration list.

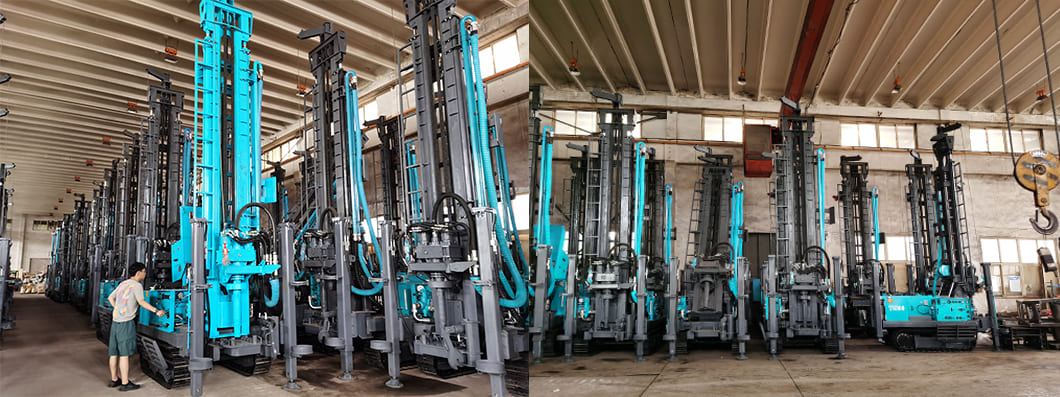

2. Water Well Drilling Rig
According to the drilling diameter and depth requirements, 200m-800m can be selected. The vehicle-mounted water well drilling rig can be selected for forward circulation and reverse circulation. A single engine (PTO) for drilling and drilling can also be configured with an independent engine.

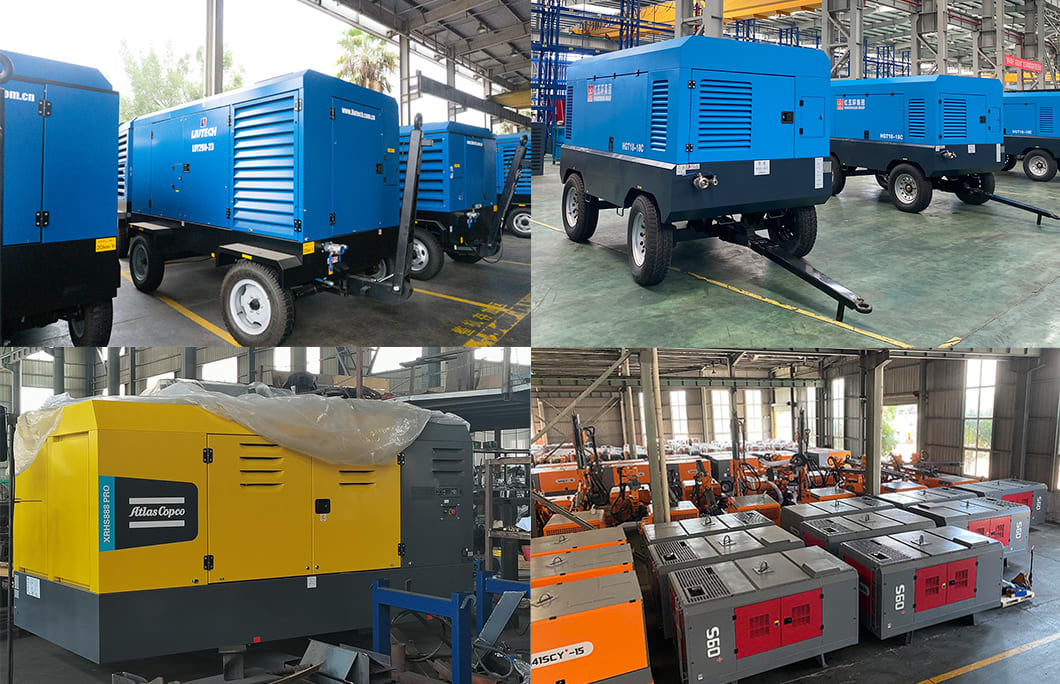

3. Air  Compressor
Air compressors can be selected from Sullair, Atlas, Liutech, Japan Fusheng, China Kaishan Zhigao Hongwuhuan and other brands, (pressure and displacement are customized according to drilling requirements)
Mud pump options: BW250/BW450/BW600/BW850 and other models.


The following link is the explanation and construction video of D Miningwell Truck-mounted water well drilling rig.
https://www.youtube.com/watch?v=ZMwX8VSAUSI
