D Miningwell truck-mounted water well drilling rig
Aug 30, 2024
Judging from industry reports, the global water well drilling rig market has broad prospects. http://www.jx.cn/The "2021-2027 Global and Chinese Water Well Drilling Rig Market Research Report" pointed out that the global water well drilling rig market size reached 1 billion yuan in 2020, and is expected to reach 1.3 billion yuan in 2026, with a compound annual growth rate of 2.8%. China is the world's largest market for water well drilling rigs, with about 37% of the market share. The "Global and Chinese Water Well Drilling Rig Industry Development Status Research and Investment Prospects Analysis Report (2016 - 2027)" shows that the global water well drilling rig market size reached 840 million yuan in 2019, and is expected to reach 970 million yuan in 2026, with a compound annual growth rate of 3.5 %. The "2022-2028 Global and Chinese Trailer-Type Water Well Drilling Rig Market Analysis Report" provides an in-depth analysis of the basic overview of the industry, market conditions and prospects in different regions.
In the context of the continued development of the global water well drilling rig market, the MWT series of truck-mounted water well drilling rigs launched by D Miningwell is becoming the focus of the industry with its excellent performance and wide applicability.
Technical data
In the context of the continued development of the global water well drilling rig market, the MWT series of truck-mounted water well drilling rigs launched by D Miningwell is becoming the focus of the industry with its excellent performance and wide applicability.
Technical data
| Technical Parameters | MWT-180 | MWT-260 | MWT-280 | MWT-350 | MWT-400 | MWT-500 | MWT-680 | MWT-800 |
| Drill depth(m) | 180 | 250 | 280 | 350 | 400 | 500 | 680 | 800 |
| Drill diameter(mm) | 140-254 | 140-254 | 140-305 | 140-325 | 140-350 | 140-350 | 140-400 | 140-400 |
| Equipped Engine | Yuchai 65kW or PTO | Yuchai 70kW or PTO | Yuchai 75kW or PTO | Yuchai 92kW or PTO | DEUTZ 103kW or PTO | Yuchai 118kW or PTO | Cummins 154kW or PTO | Cummins 194kW or PTO |
| Feed Stroke(m) | 3.3 | 3.3 | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 |
| Drill pipe length(m) | 1.5/2.0/3.0 | 1.5/2.0/3.0 | 1.5/2.0/3.0/6.0 | 1.5/2.0/3.0/6.0 | 1.5/2.0/3.0/6.0 | 1.5/2.0/3.0/6.0 | 1.5/2.0/3.0/6.0 | 1.5/2.0/3.0/6.0 |
| Swing speed(rpm) | 45-70 | 45-70 | 40-70 | 40-70 | 50-135 | 40-130 | 45-140 | 45-140 |
| Swing torque(N.m) | 3200-4600 | 3300-4500 | 4500-6000 | 5700-7500 | 7000-9500 | 7500-10000 | 8850-13150 | 9000-14000 |
| Rig lifting force(T) | 12 | 14 | 17 | 18 | 25 | 26 | 30 | 36 |
The MWT series of truck-mounted water well drilling rigs from D Miningwell has the following characteristics:
1. It is a water-air dual-purpose drilling rig. The unique rotary head design can be used for high-pressure air compressors and high-pressure mud pumps at the same time.
2. Select a new truck chassis and equip it with a PTO system. The drilling rig and the truck chassis share the engine to improve energy utilization efficiency.
3. The vehicle body is loaded with auxiliary tools such as mud pumps, welding machines, and foam pumps to meet the needs of various situations.
4. Customized designs can be made according to customer's drilling needs and preferences, including the brand and model of the truck chassis, the models of air compressors and mud pumps, and the height of the derrick.
5. Equipped with a HOWO brand truck chassis to provide convenient after-sales service for global customers.
6. The PTO system can be added or a separate engine can be configured according to customer preferences.
7. The truck-mounted drilling rig is equipped with a high-pressure screw air compressor and a mud pump, which can be switched freely in different geological environments and is suitable for various drilling projects.
8. It adopts an integrated welded telescopic derrick, uses Q345B high-temperature and low-temperature resistant materials, and all components are strengthened by welding. After 30 years of actual use tests, the quality is reliable.
1. It is a water-air dual-purpose drilling rig. The unique rotary head design can be used for high-pressure air compressors and high-pressure mud pumps at the same time.
2. Select a new truck chassis and equip it with a PTO system. The drilling rig and the truck chassis share the engine to improve energy utilization efficiency.
3. The vehicle body is loaded with auxiliary tools such as mud pumps, welding machines, and foam pumps to meet the needs of various situations.
4. Customized designs can be made according to customer's drilling needs and preferences, including the brand and model of the truck chassis, the models of air compressors and mud pumps, and the height of the derrick.
5. Equipped with a HOWO brand truck chassis to provide convenient after-sales service for global customers.
6. The PTO system can be added or a separate engine can be configured according to customer preferences.
7. The truck-mounted drilling rig is equipped with a high-pressure screw air compressor and a mud pump, which can be switched freely in different geological environments and is suitable for various drilling projects.
8. It adopts an integrated welded telescopic derrick, uses Q345B high-temperature and low-temperature resistant materials, and all components are strengthened by welding. After 30 years of actual use tests, the quality is reliable.

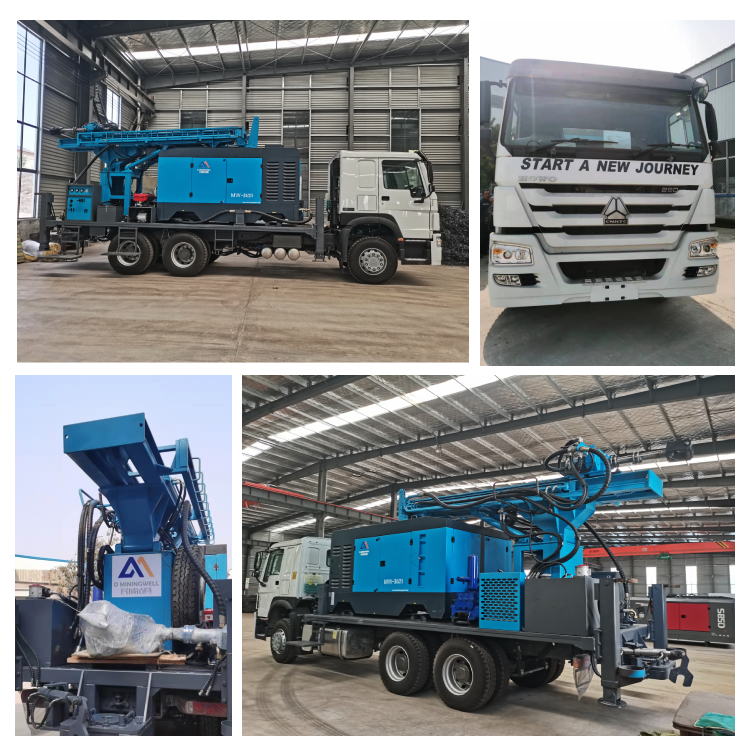

(1).jpg)
D Miningwell is always committed to providing customers with high-quality, high-performance truck-mounted water well drilling rigs to meet the individual needs of different customers. Choosing D Miningwell means choosing efficient, stable and reliable drilling solutions.
