Truck mounted water well drilling rig MWT-300K

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40FR/Bulk Carrier
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union

MWT-300K water well drilling rig is a vehicle-mounted mud pump type water well drilling rig, which is characterized by large drilling depth and strong terrain adaptability. At the same time, it can also be used with air compressors to increase drilling efficiency.
Product Introduction
MWT-300K water well drilling rig is a vehicle-mounted water well drilling rig produced and developed by our company with mud pump as the main drilling power. The rotary head of mechanical transmission makes it have strong torque and efficient rotation speed. Take into account efficiency and drilling depth. In complex construction environments such as sand, gravel, and soft stone formations, MWC series water well drilling rigs can also complete the construction purpose. Generally speaking, we will choose a new car chassis, and equip the drilling rig and the large upcoming pump with a special engine. At the same time, the body is also equipped with auxiliary tools such as foam pump and electric welding machine. In hard rock construction, MWC series water well drilling rigs can also be used externally with air compressors.

MWT-300K water well drilling rigs are all customized drilling rigs. We will customize the design of the drilling rig according to your drilling needs and preferences. The customized content includes:
1. The brand and model selection of the car chassis;
2. Selection of the model and connection method of the mud pump
3. Drill tower height
Show details

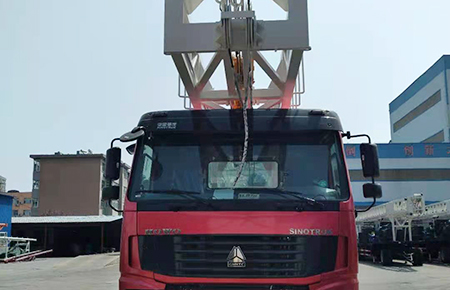

Sino HOWO Tuck

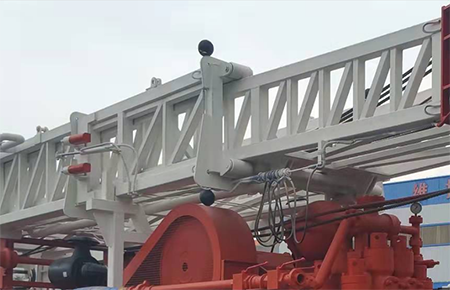

Compound Drill Tower

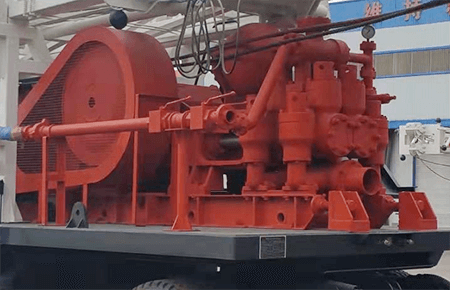

Powerful mud pump
Technical data
Comprehensive overview
Total Weight:25000KG
Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer.
Code Name
A01 Truck chassis SINOTRUK
B.Drilling tower, Second floor chassis
Code Name Parameter
B01 Drilling tower Drill tower load:30T
Operation:Two hydraulic support Drill tower height:7M
B02 Pull up-Pull down cylinder Pull down:11T
Pull up:20T
B03 Outrigger cylinder Brace:Four hydraulic leg cylinders
Equipped with hydraulic lock to prevent leg retraction
C.Drilling rig power
Code Name Parameter
C01 Diesel engine Rated power:132KW
maximum power:153KW     revolutions:1500RPM
Upgrade according to drilling rig construction characteristics
D.Tool hoist
Code Name Parameter
E01 Hoist Single rope pull up:2T
E. Rotation form
hydraulic power head
Code Name Parameter
F01 Power head Torque:9500NM
Revolutions:0-90 RPM
G.operating system
Code Name Parameter
G01 Control box Integrated console
Lifting and boring tower, outrigger cylinder, lifting, lowering, power head , etc.
Instrument: drilling tool weight gauge, system pressure gauge, etc.
H.Air compressor + mud pump
Code Name Parameter
H01 Air compressor PRESS:2.1 MPA
H02 Mud pump Type:
Double Cylinder Reciprocating Double-acting Piston Pump
Maximum pressure:3MPA
Cylinder liner diameter:130MM
