Equipments You Will Need for Well Drilling

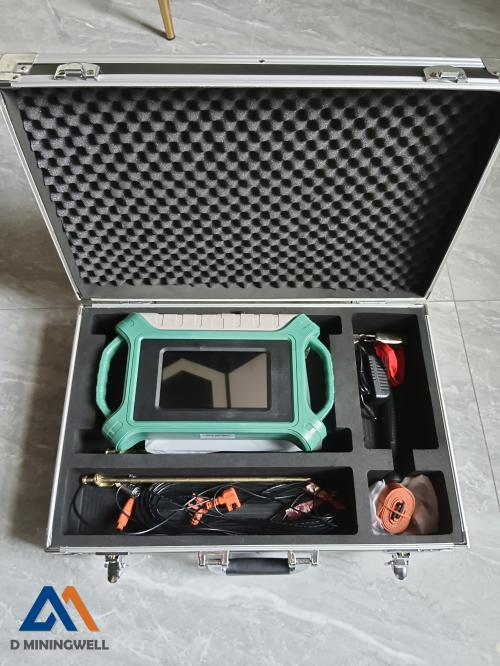

1. Water Detector

Before starting your drilling, you need to know where to drill. If you drilling blind, you may waste a lot time and get nothing. So knowing where to drill is very important.
The water detector can tell you where the water is and the difficulty to drill to the water source.

The Operation Video: https://youtu.be/XjtmQyzUTiE

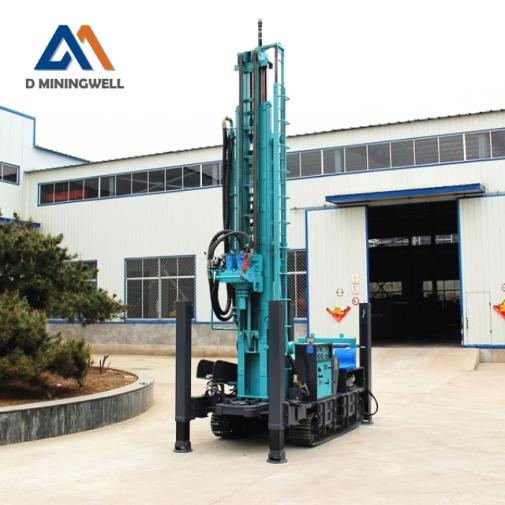

2. Drilling Rig

Drilling rig is one of the fundamental machines for well drilling. Whatever kind of drilling rig you choose, crawler, tricycle, wheel, skid, the rig offers the rotary and downforce to the drilling tools.
Pneumatic drill rig has the advantages of safety and explosion-proof, large torque, high speed, small size, light weight, simple structure, convenient disassembly and assembly. The rotation of the main machine of the pneumatic drill rig has the function of forward and reverse rotation, which can easily drill the rig and push out the drilling tool; the independent motor is adopted, the feed force is large, and the failure rate is low; the rotation speed and the feed speed can be adjusted by controlling the air intake.

Drilling Rig Operation Video https://www.youtube.com/watch?v=ZMwX8VSAUSI

3. Air Compressor

In the well drilling industry, another basic machine is the screw air compressor. Within the compressor, there is a set of male and female rotors. These two rotors compress the air, which is then sended through the outlet turnel to the air loop system in the rig to power the DTH Hammer. In well drilling, especially in rocky area, an air compressor is essentional. Compared with traditional mud pumps, it has twice the stone conquering ability of mud pumps.

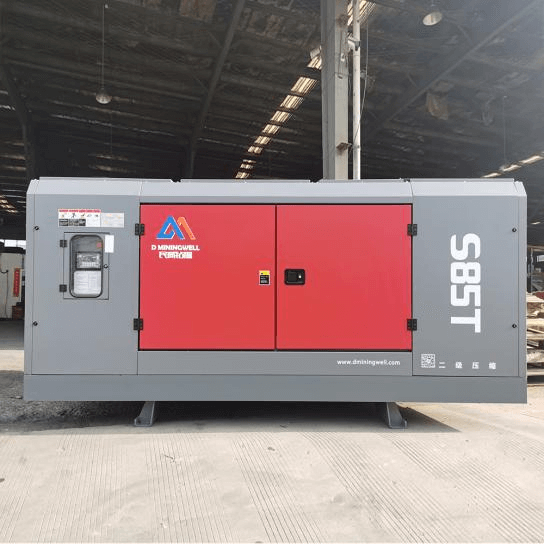

This picture shows our S85T Screw air compressor. It is two-stage compression, offering a better working effiency. A 228Kw Yuchai Engine allows it to produce 22 bar (320Psi) pressure, 24m³/min (857CFM) flow. So it is widely used in 200m well drilling.

4. Air Hose

Air Hose to connect the drilling rig and air compressor. It plays the role sending the compressed air into drilling rig.

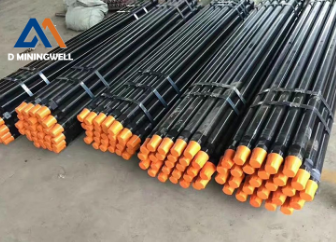

5. Drill Rod

The drill pipe i

s a steel pipe with threads at the end, which is used to connect the surface equipment of the drilling rig and the drilling and grinding equipment or the bottom hole device at the bottom of the drilling well. The purpose of the drill pipe is to transport the drilling mud to the drill bit and together with the drill bit to raise, lower or rotate the bottom hole device (DTH Hammer and Bits).

6. DTH Hammer

A down-the-hole drill, usually called DTH by most professionals, is basically a jackhammer screwed on the bottom of a drill string. Powered by the air compressor, the fast hammer action breaks hard rock into small cuttings and dust that are evacuated by air. DTH Hammers are divided into three types, low pressure(≤1.0MPa), medium pressure(≤1.6MPa), and high pressure(1.6-2.2MPa). You can choose according you air compressor Rated Pressure.

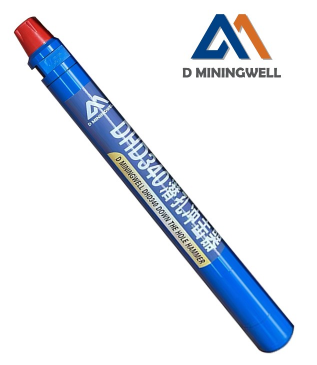

The Pircture shows our 4 inch high pressure DTH hammer. It has the frenquency of 60Hz, It can be used with 105-150mm DTH bit.

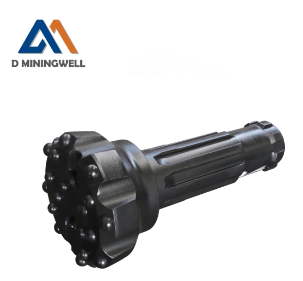

7. DTH Bit

Down-the-hole (DTH) hammer bits are used with Down-the-hole(DTH) hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground. Drill bits are available in different sizes and different styles so they can drill a wide range of hole sizes.

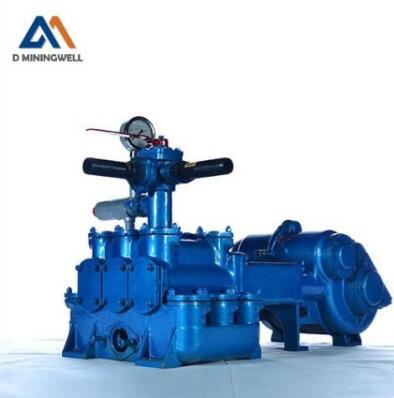

8. Mud Pump

If the air compressor determines the working-effiency of drilling, then the mud pump determines the maximum depth of drilling. It helps to circulate the drilling fluid through the drill bit and back up to the surface. The mud pump also provides pressure to keep the drill bit from becoming plugged.

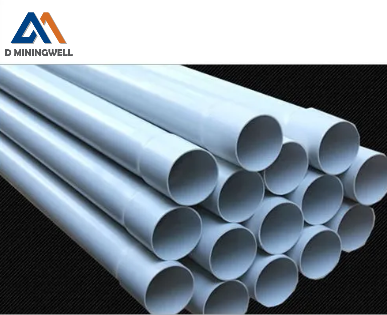

9. Casing Pipe in Clay Area

The casing pipe is normally used in first clay area drilling, also can be used when there is underground cave. To prevent the soil layer from collapsing, resulting in insufficient pressure, which will affect the subsequent drilling. The sleeves need to be tightly connected to prevent air leakage and collapse.

10. Drag Bit

This kind of bit uses the action of the stem rotation to drag the bit over the surface of the formation. With softer formations, like sand, clay, or soft rock, which is found throughout the Country, a drag bit loosens the material sufficiently for the drilling process to proceed. In well drilling, it is widely used for hole opening and first clay area drilling.

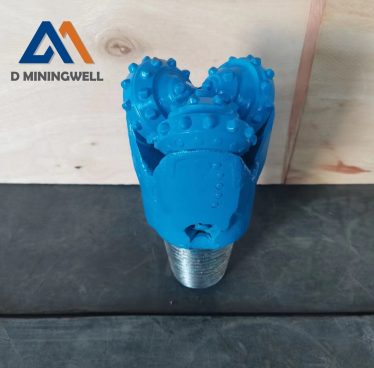

11. Tricone Bit

The tricone bit is firstly invented in the 1930s. Tricone bits are used for medium and hard rock formations. These bits are designed with smaller teeth, which are more closely arranged together. Mud is pumped down the drill string and out through the tricone bit to keep the bit clean from cuttings and to move these cuttings back to the surface. By using with mud pump it can drill to the depth where DTH drilling tools can’t.
