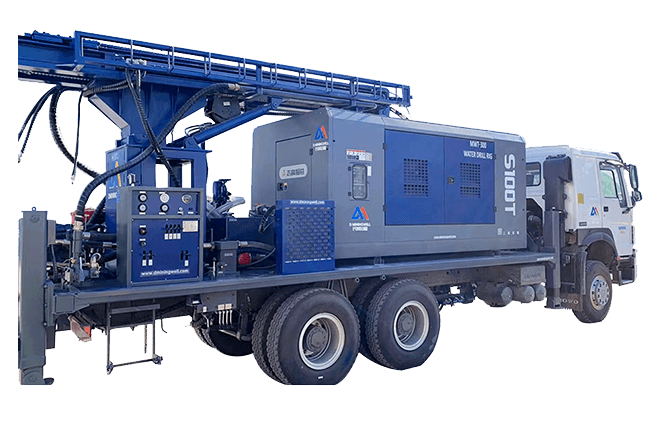

Truck mounted water well drilling rig MWT-300

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40FR/Bulk Carrier
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union

Our truck-mounted water well drilling rig is a customized product that customers can customize according to their actual needs.

Product Introduction

Show details

Technical data

Application

Related cases

Product Introduction

Main features:
1. PTO system to save power

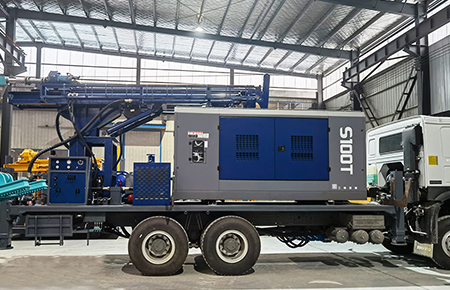

2. The truck body loads a high-pressure screw air compressor and a mud pump at the same time.
One car solves all equipment transport problems.
3.The air compressor and mud pump can be placed on a car chassis.
4.Patent design hydraulic drive power head, large torque and large aperture

Show details

Technical data

Technical Parameters	MWT-180	MWT-260	MWT-280	MWT-350	MWT-400	MWT-500	MWT-680	MWT-800
Drill depth(m)	180	250	280	350	400	500	680	800
Drill diameter(mm)	140-254	140-254	140-305	140-325	140-350	140-350	140-400	140-400
Equipped Engine	Yuchai 65kW or PTO	Yuchai 70kW or PTO	Yuchai 75kW or PTO	Yuchai 92kW or PTO	DEUTZ 103kW or PTO	Yuchai 118kW or PTO	Cummins 154kW or PTO	Cummins 194kW or PTO
Feed Stroke(m)	3.3	3.3	6.6	6.6	6.6	6.6	6.6	6.6
Drill pipe length(m)	1.5/2.0/3.0	1.5/2.0/3.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0
Swing speed(rpm)	45-70	45-70	40-70	40-70	50-135	40-130	45-140	45-140
Swing torque(N.m)	3200-4600	3300-4500	4500-6000	5700-7500	7000-9500	7500-10000	8850-13150	9000-14000
Rig lifting force(T)	12	14	17	18	25	26	30	36
