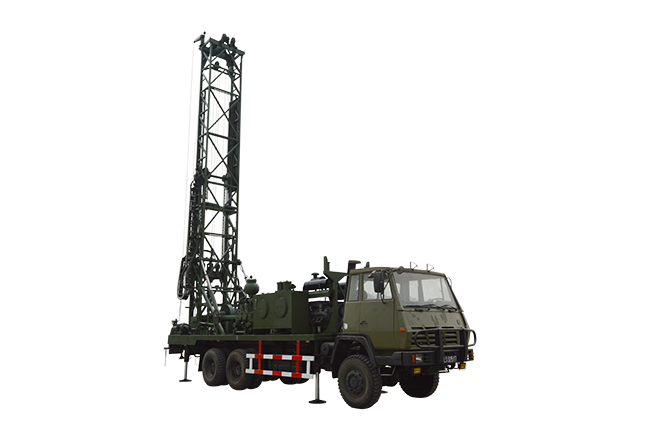

Truck mounted water well drilling rig MWT-1000HK

Product Introduction

Our truck-mounted water well drilling rig is a customized product that customers can customize according to their actual needs. Customers can choose from: chassis brand, boom length, mud pump selection, chassis installation air compressor and so on. The vehicle-mounted water well drilling rig is divided into different models according to the drilling depth, the maximum depth can reach 1500 meters.

Show details

Technical data

MW-1000HK water well drilling rig
Comprehensive overview
Depth：800-1000M Aperture：90MM-450MM Dimensions:12000mm×2500MM×4150MM Total Weight：26500KG Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer.
Drilling tower, Second floor chassis
Code	Name	Model	Parameter
B01	Drilling tower	Truss type	Drill tower load:60T Operation：Two hydraulic support cylinders Drill tower height：11M
B02	Pull up-Pull down cylinder	Cylinder-wire rope structure	Pull down:274KN Pull up: 35000KG
B03	Second floor chassis	Connecting drill rig and truck chassis	Brace: Four hydraulic leg cylinders Equipped with hydraulic lock to prevent leg retraction
Drilling rig power
Code	Name	Model	Parameter
C01	Diesel engine		Power:265 KW Type：Water Cooling and Mechanical Supercharging Revolutions:1800R/MIN Compression Ratio: 18:1
C02	Diesel Engine Monitor	Matching	Monitoring information such as speed, temperature and so on through diesel engine sensors
Mud pump
Code	Name	Model	Parameter
D01	Mud pump	BW1200/8	Type：Double Cylinder Reciprocating Double-acting Piston Pump Maximum pressure：8MPA Cylinder liner diameter：150MM MAXIMUM DISPLACEMENT：1200L/MIN
D02	Matching pipe	complete set	Inner diameter of drainage pipe：3' Inner diameter of suction pipe: 6'
Tool hoist
Code	Name	Model	Parameter
E01	Hoist	CJY-14	Single rope pull up：3T
Rotation form: hydraulic power head
Code	Name	Model	Parameter
F01	Power head	CD-1	Torque：NM: 32300 Revolutions：RPM: 0-90 Maximum safe load: 70T
Operating system
Code	Name	Model	Parameter
G01	Control box		Integrated console Lifting and boring tower, outrigger cylinder, lifting, lowering, clutch,etc. Instrument: drilling tool weight gauge, system pressure gauge, etc.
