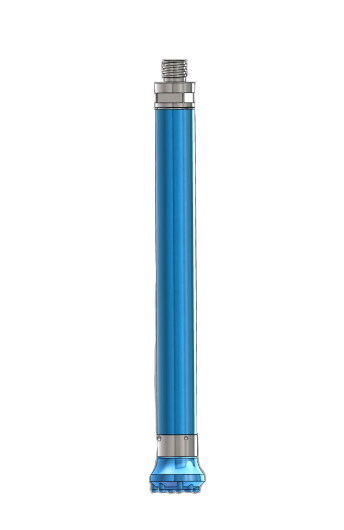

CIR 90 A DTH Hammer (Low pressure)

Brand Name: D miningwell
Minimum Order Quantity: 1 set
Packaging Details: Plastic/Wooden Case
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union
Usage: Quarry, Mining, Water well drilling, Foundation piling, Tunneling ...

D Miningwell's DTH hammer has the advantages of high drilling efficiency, low failure rate and long service life.
Our drill tools enable efficient and economical drilling even in all types of hard and abrasive harsh rocks.

Inquiry Now

Send Email

Product Introduction

Show details

Technical data

Warehouse

Related cases

Product Introduction

Water well drilling hammer is mainly used in mining, quarry, road construction and other engineering drilling blasting holes, landslide protection, dam site reinforcement, anchoring and other engineering holes, hydrology, water well holes and other fields.

1. The drill bit does not require nylon tubes, thus eliminating the trouble of nylon tubes being broken, damaged and hard due to thermal expansion and contraction.

2. DTH hammer without nylon tube has low energy consumption, high impact frequency, and the drilling speed is 15%-30% faster than the same type of DTH hammer with nylon tube.

3. Because the structure is very simple and the components are reliable, DTH hammer is easy to maintain and has a longer service life.

Show details

Cylinder

Piston

CIR90A Parts

Technical data

Technical Parameters
Length(Lessbit)	628（mm）
Weight (Lessbit)	19.76kg
External diameter	80（mm）
Bit Shank	CIR90
Hole Range	90-130（mm）
Connection Thread	T48X10 Square Thread
WorkingPressure	0.7-1.0MPa
Recommend edrotation speed	5-7m³/min

CIR90A	Item Description	Weight(Kg)
	Check Valve	0.04
	Big Spring	0.01
	Spacer Ring	0.02
	Rubber Ring	0.008
	Cap	0.38
	Valve	0.04
	Valve Seat	1.48
	Cylinder	1.92
	Piston	4.24
	Guide Sleeve	1.18
	Rear Connector	2.78
	Outer Casing	5.96
	Front Connector	1.68
