MW380 water well drilling rig shipped to Mongolia
Feb 29, 2024
.jpg)

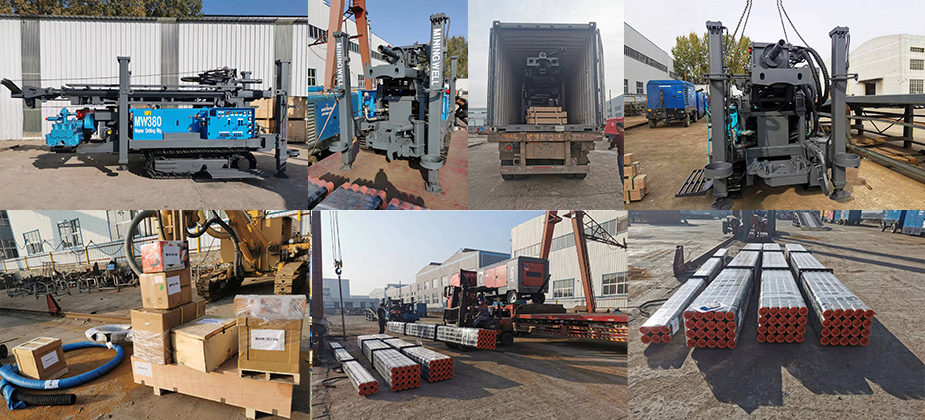

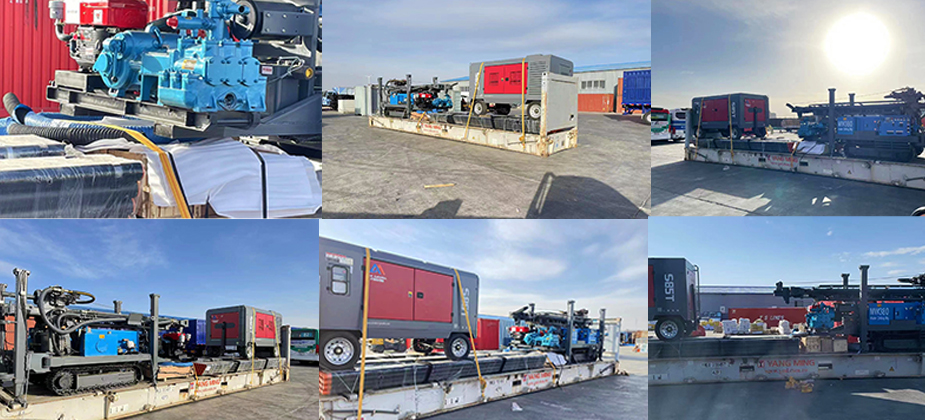

MW380 water well drilling rig sent to Mongolia for military use.

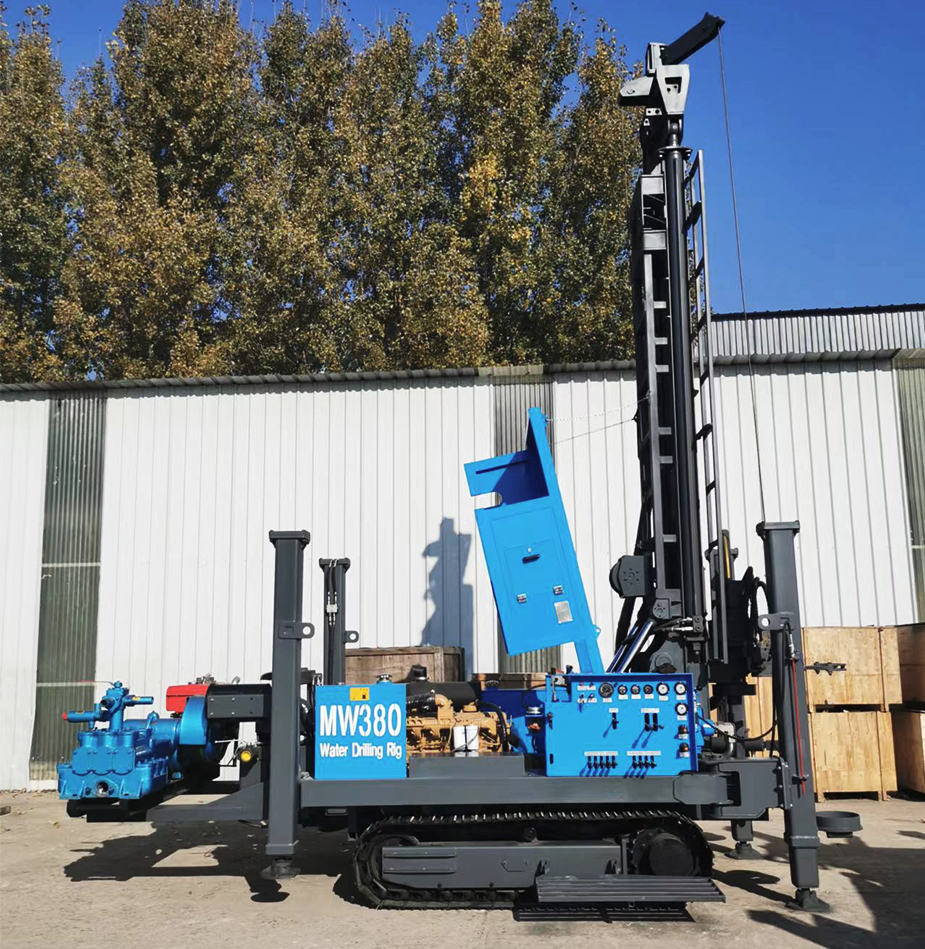

| MW380 | |
| Drilling Depth (m) | 380 |
| Drilling Diameter（mm） | 140-325 |
| One-Time Advance Length (m) | 6.6 |
| Rapid rise speed (m/min) | 20 |
| Walking Speed (km/h) | 2.5 |
| Fast feeding speed (m/min) | 40 |
| Climbing Angles | 30 degree |
| Width of loading (m) | 2.8 |
| Equipped capacitor (Kw) | 96 |
| Hoisting force of winch (T) | 2 |
| Swing torque (N.m) | 6500-9000 |
| Using air pressure (MPA) | 1.7-3.4 |
| Air Consumption (m3/min) | 17-36 |
| Drill Pipe Length (m) | 1.5m, 2m, 3m, 6m |
| Drill Pipe Diameter（mm） | Φ89 Φ102 |
| Rig Lifting Force (T) | 24 |
| Swing Speed (rpm) | 66-135 |
| Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency (m/h) | 15-35 |
| High leg stroke (m) | 1.6 |
| The engine brand | Yuchai engine (national 3) |
| Dimensions (mm) | 5950*2100*2550 |
| Weight (kg) | 9200 |
