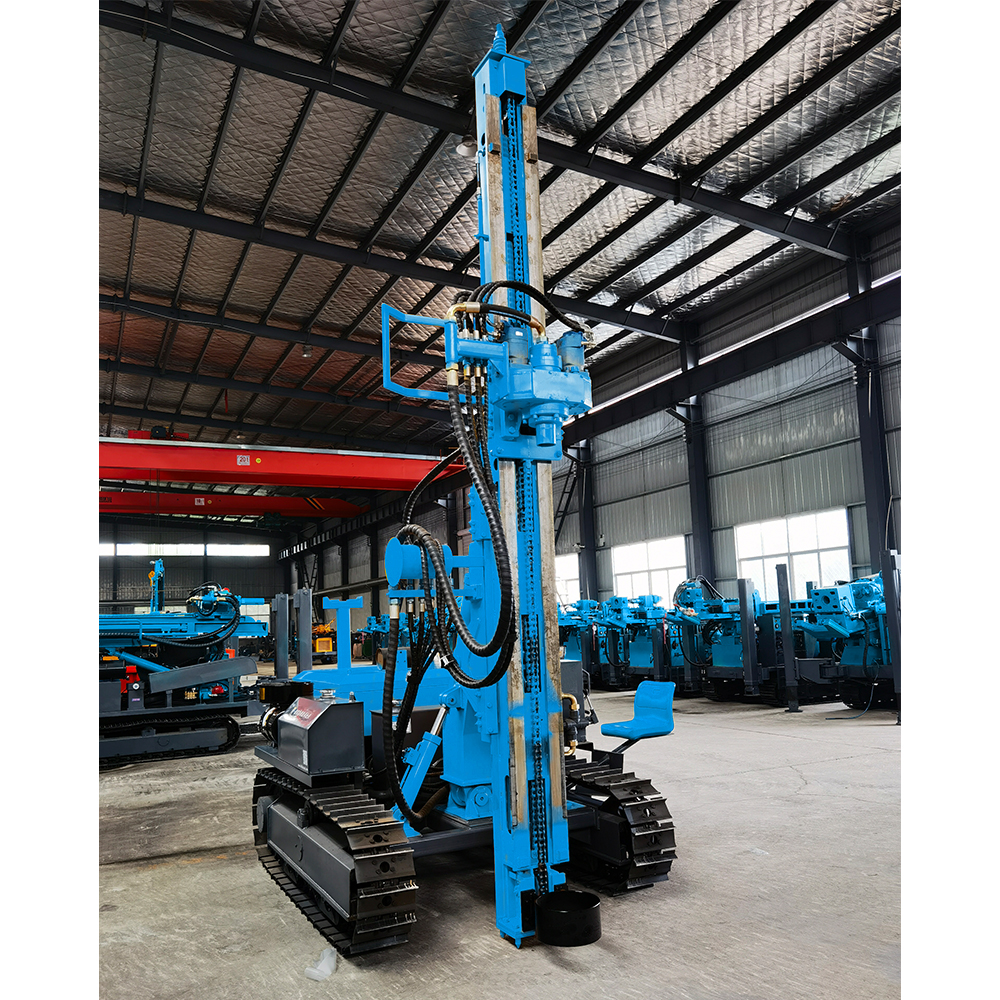

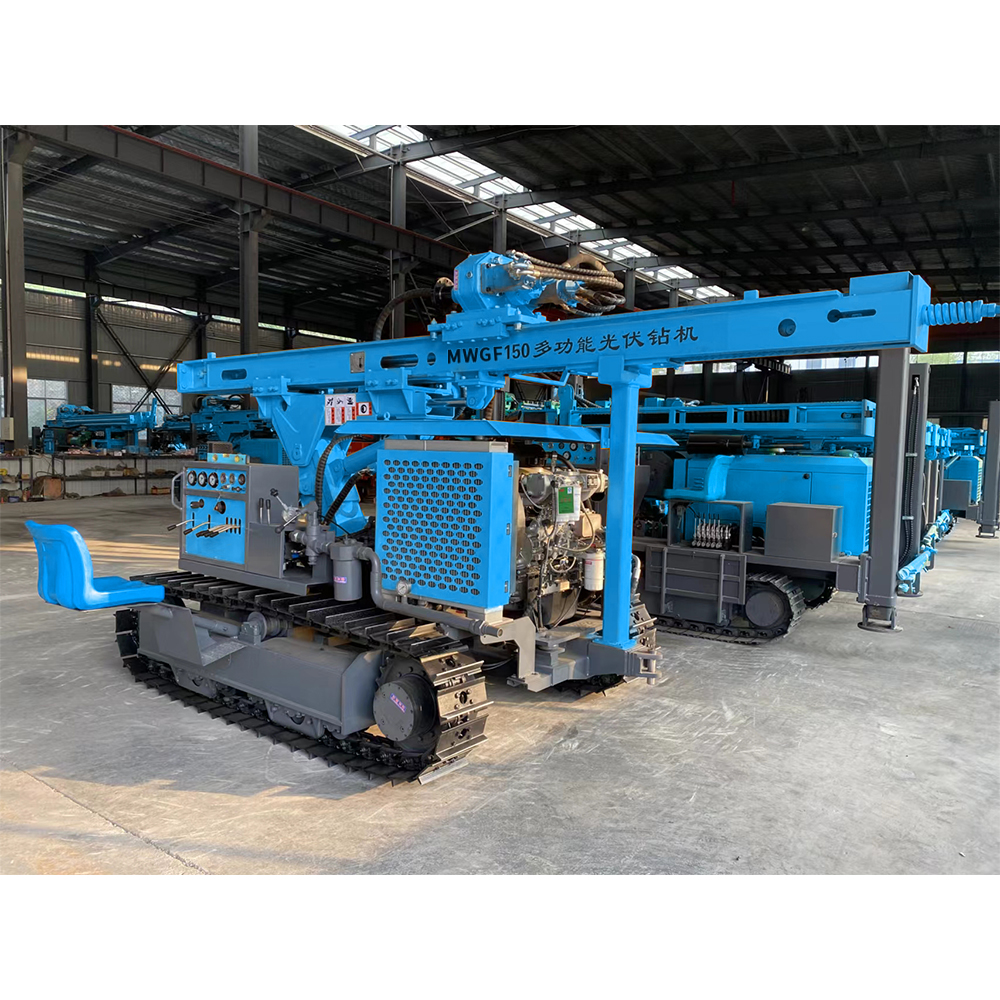

DMiningwell MWGF150 MultifunctionalCrawler Photovoltaic Drilling Rig Mine Mining Drilling Machine
MWGF150 multi-functional crawler drilling rig is a multi-purpose drilling rigintegrating photovoltaicpiling,foundation piling,blasting hole drilling,and down-the-hole drilling.It adopts a new single-ribhigh-strength crawler and an excavator travel motor,which offers the advantages of strong climbingability,hard to be damaged,and long service life.
The drilling rig is equipped with Yuchai 75KW turbocharged diesel engine,and adopts new hydraulictechnology with low air consumption.The rotary gearbox adopts dual motors and high-torque gearbox,which is convenient to move and compact structure.At the same time,the sliding frame has the functionof expansion and contraction compensation.When drilling,the sliding frame supports the ground,andthe drilling performance is stable.The diameter of photovoltaic piling can reach 150mm-400mm,and thediameter of DTH hammer construction can reach 100mm-350mm.The rig adopts a high-torque motor.The drilling rig has the characteristics of flexible maneuverability,strong climbing ability,suitable forrough site operations,convenient perforation and displacement,high drilling efficiency,easy mainte-nance and high reliability.It is an ideal multi-purpose drilling rig for photovoltaic piling,mining,road,water conservancy,power station and other construction facilities。
MWGF150 Multi-functional Crawler PV Drilling Rig is a kind of high-efficiency and multi-functional engineering machinery and equipment designed for drilling operations in PV power plant construction and other engineering fields.12 Below is the detailed introduction of MWGF150 Drilling Rig:
Main Features
1. Strong power: Equipped with a 75 kW turbocharged four-cylinder diesel engine provided by Yuchai, it has plenty of power and can continuously provide stable support for the construction process
2. High-efficiency oil pump and double-layer air filtration: Equipped with 35-35-20 triplex pump, which has high oil pressure, high flow rate and low energy consumption to ensure efficient pumping operation. Double-layer air filtration system effectively protects the engine to work normally under bad working conditions and reduces the cost of maintenance.

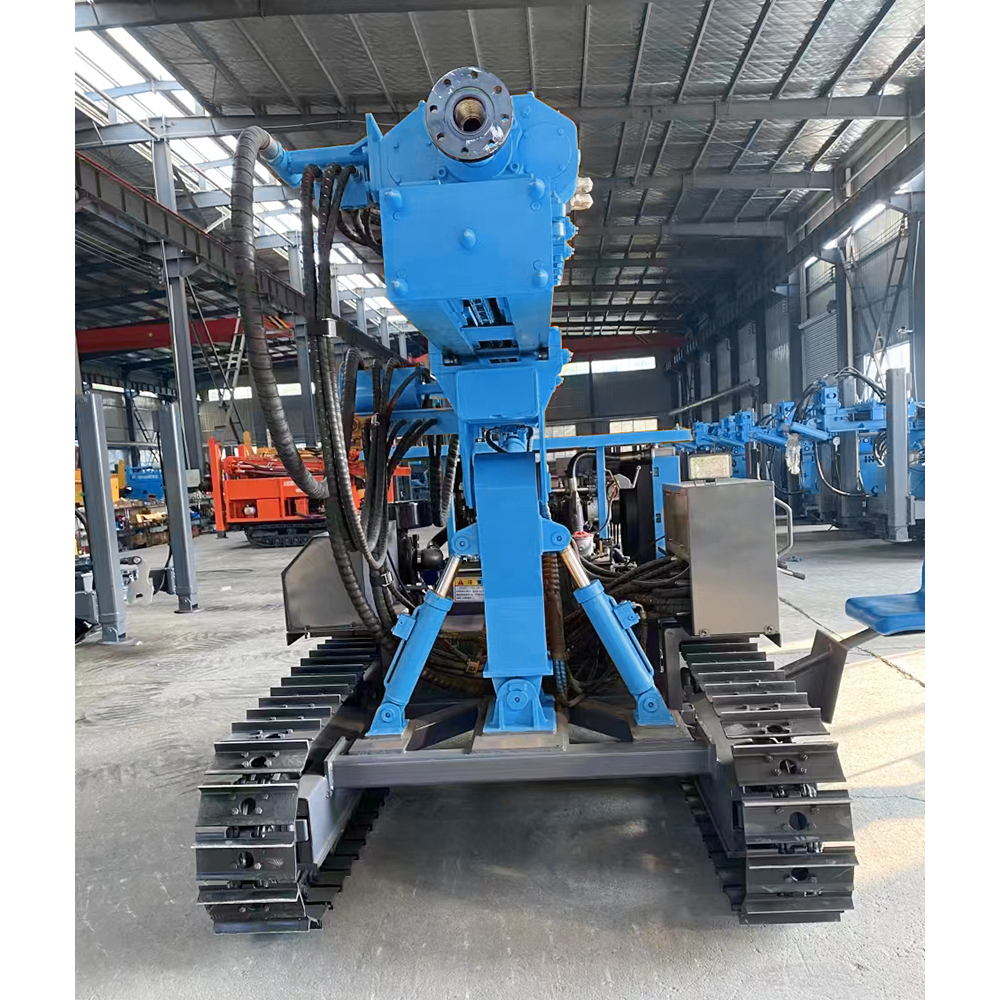

3. Flexible swinging boom and durable steel tracks: the left and right sides of the boom are equipped with large hydraulic cylinders, which can easily swing 60 degrees left and right to adapt to complex terrain. The steel tracks have excellent loading capacity and anti-wear ability, adapting to the complex environment in the field.
4. Driving wheels and operation panel: Equipped with large star-walking driving wheels, it has strong driving power and excellent passability. The operation panel is designed to be simple and clear, easy to operate and improve working efficiency.

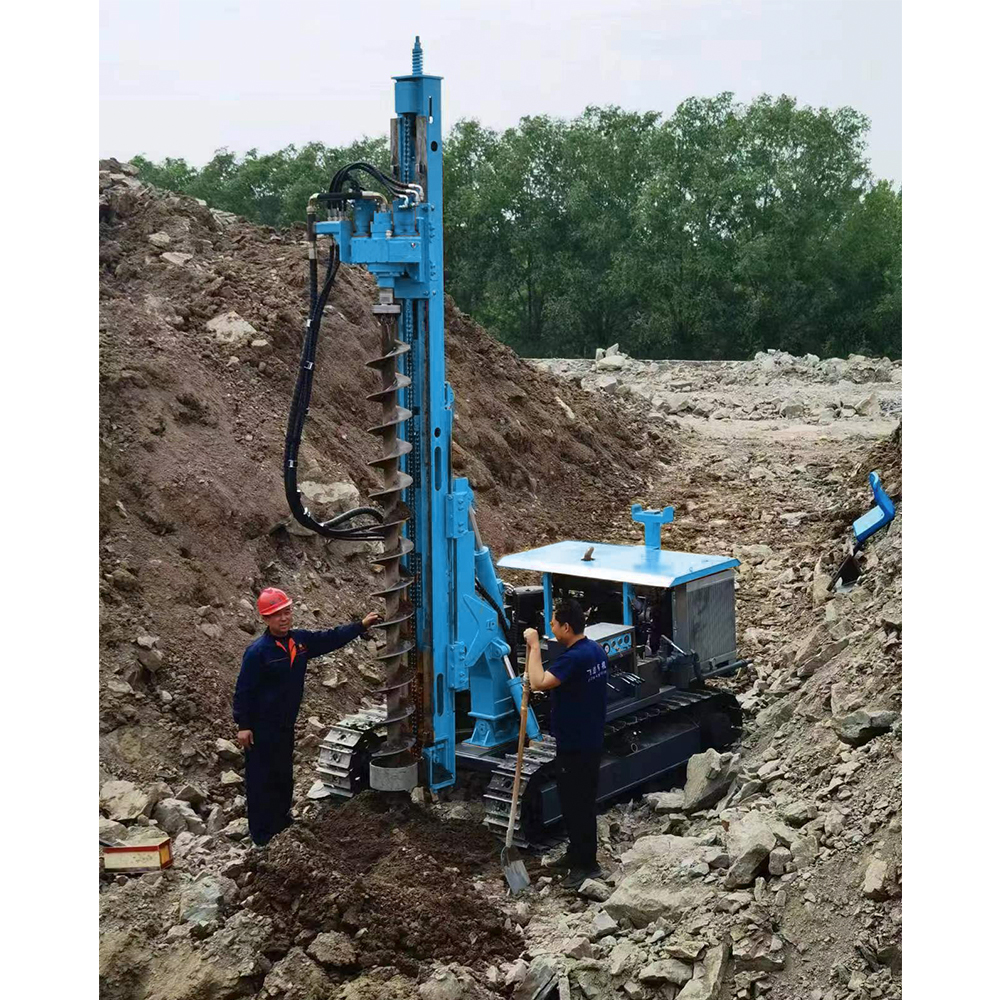

5. Multi-functionality: Combining various functions such as photovoltaic piling, foundation piling, blasting and percussion drilling, it is suitable for photovoltaic piling, mining, highway, water conservancy, power plant and other construction facilities.
6. High efficiency and energy saving: adopting new hydraulic technology, low air consumption, high rotary torque, easy to shift the hole, reliable performance, high drilling efficiency, and diversified working conditions.
