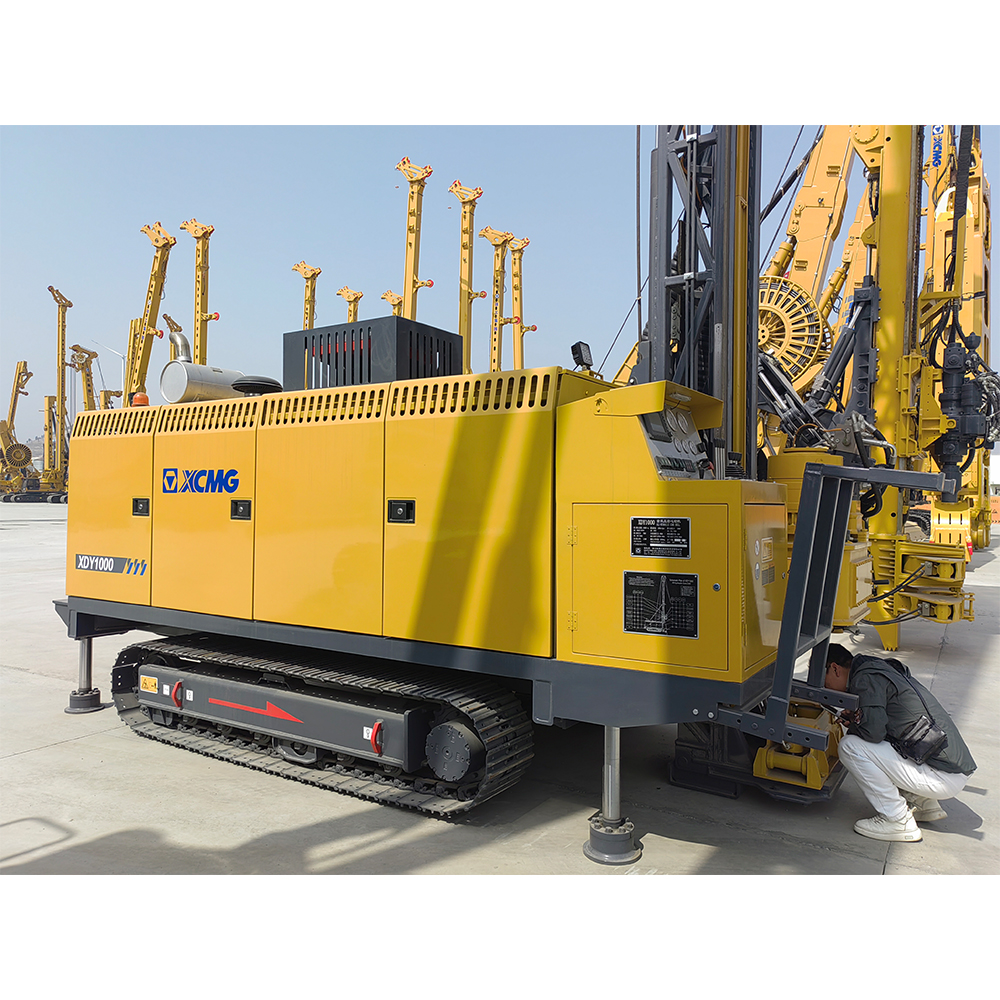

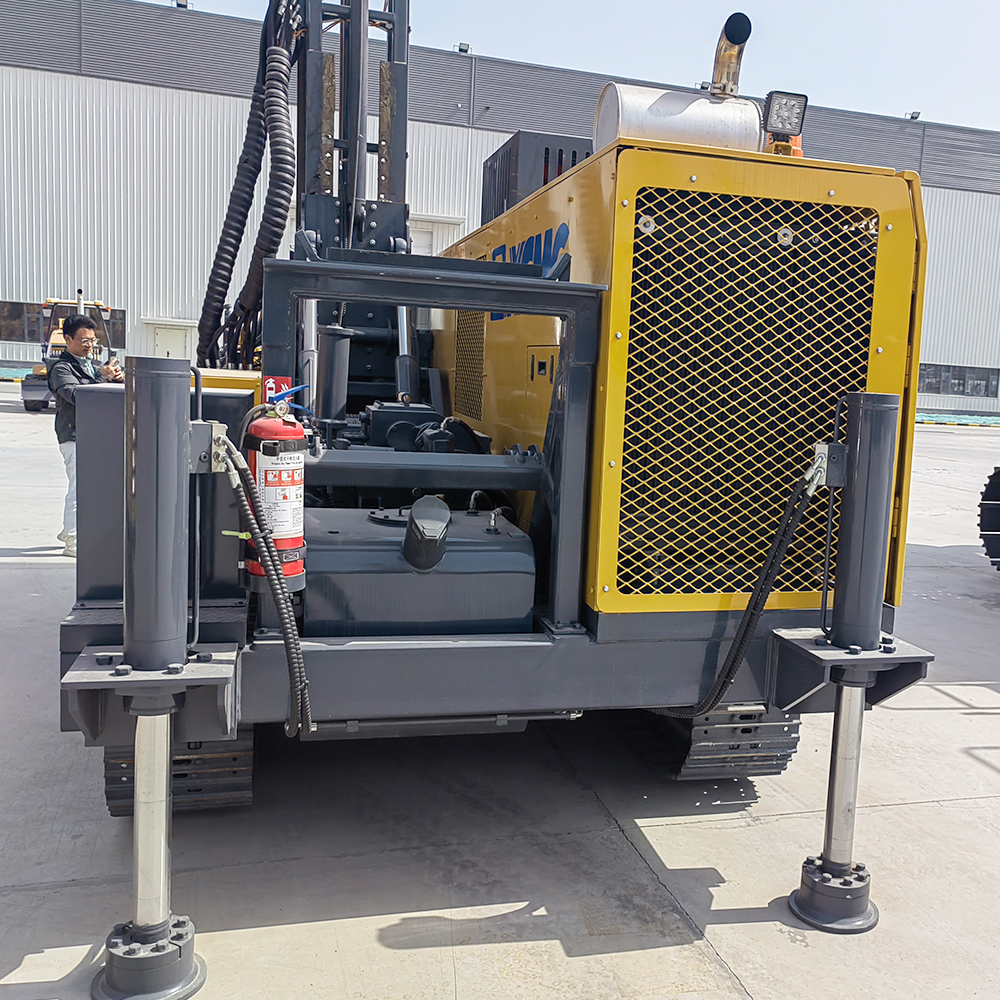

DMiningwell 1000-meter prospecting core exploration drilling rig – crawler-type full-hydraulic wireline core drilling rig
Advantages of the fully hydraulic power head tunnel core drill: long feed stroke, stable drilling, stepless adjustment can be achieved, rods can be added on the machine, it is convenient to protect the borehole wall, auxiliary time is short, drilling efficiency is high, it is convenient for inclined hole construction, it is more suitable for the diamond wire-line coring drilling process, and the operation is simple.
Contact US
Get Price
Share:
Next:
This is already the latest article
Content
Selling Points of Dminingwell XDY1000 Core Drilling Rig
- Wide Application Range: It’s made just for core sampling work like mineral prospecting and exploration. It fits well with efficient drilling methods such as diamond wire-line coring. You’ll find it useful in mining, non-ferrous metals, chemical industry, and coal field exploration. Whether it’s deep metal mine exploration or large-scale coal field prospecting, it does a great job.
- Hydraulic Drive Brings Big Benefits: With a hydraulic system, it’s really easy to operate. Even new operators can learn quickly, saving time and money on training. What’s more, it’s easy to transport. Its compact design and detachable parts make moving it around simple, so it can get to work sites easily—whether that’s a hard-to-reach mountain mine or a tight urban construction area.
- Strong and Steady Power: It has a powerful Cummins engine, giving plenty of power. It works steadily even in tough conditions like high altitudes, cold temperatures, and sandy areas, making sure the drilling goes on without a hitch. The hydraulic system uses good tech like load-sensitive and electro-hydraulic proportional control, with imported parts. That keeps it reliable, reduces breakdowns, and makes it last longer.
- Great Winch and Power Head Design: The main winch uses single-row rope tech, which stops the steel rope from getting damaged. That means the rope lasts longer, so you spend less on replacements. The power head uses oil cylinders to lift and feed, running smoothly and steadily. It controls drilling speed and depth precisely, so you get accurate, complete cores. The power head’s speed changes with electromechanical-hydraulic control, and each gear can adjust smoothly. Its good torque-speed ratio works for all kinds of tricky ground—soft soil, hard rock, or mixed layers.
- Safety and Eco-Friendly Features: It has a safety control system to stop mistakes, making work safer for operators. There’s also an independent cooling system that’s energy-saving and eco-friendly. This helps the hydraulic system work well in complex environments and doesn’t harm the surroundings much.
- Handy and Safe Chassis: It has a homemade steel crawler chassis with wire-controlled movement, making it easy and safe to operate. It moves smoothly over rough mining roads, so adjusting where the rig works is both easy and safe.
- Technical Parameters
Item Unit Parameter Drilling depth m 1000(BQ) Max.torque Nm 4000 Max.rotation speed rpm 1250 Max.pull of main winch kN 68 Rated power kW 119 Engine QSB4.5 Emission standard – CNⅢ Weight t 12.1 Transport dimensions mm 6100×2410×2730
