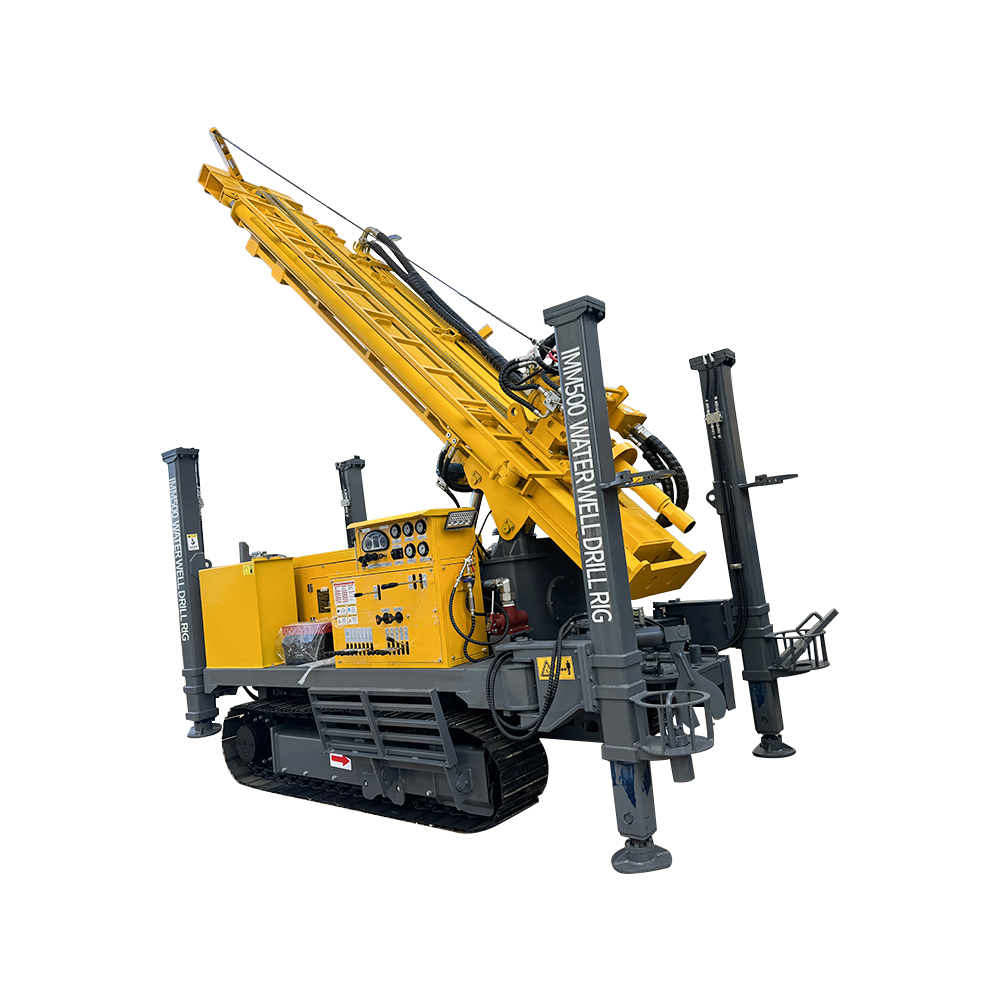

Custom Crawler Water Well Drilling Rig IMM500
Nov 28, 2024
The IMM500 Custom Crawler Water Well Drilling Rig is a standout in the drilling equipment market. Engineered to meet diverse client requirements, its performance capabilities are second to none. With a powerful drilling mechanism, it ensures efficient and precise operations, whether for shallow or deep water well drilling tasks. What sets it apart further is the option for customization. Clients can choose the color that aligns with their branding or personal preferences, making the rig not just a functional tool but also a visual representation of their identity. The prominent logo placement, carefully integrated as per request, adds a unique touch of professionalism. And of course, the IMM500 model itself is renowned for its reliability and durability, being designed with top-notch engineering standards. Whether you're in the agricultural, industrial, or domestic water supply sector, this custom rig offers the perfect blend of aesthetics and functionality, ensuring your drilling projects are executed with excellence and style.
IMM500 Water Well Drilling Rig | |||
项目Model | 单位Units | 参数Parameters | |
钻进能力 Drilling capacity |
最大钻孔深度 Max drilling depth |
m | 500 |
最大钻孔直径 Max drilling diameter |
mm | Φ400 | |
发动机 Engine |
发动机品牌Engine brand | / | 玉柴yuchai |
额定功率Rated power | Kw | 118/6cyl | |
进给系统 Feed system |
提升力Lifting force | T | 28 |
快速提升速度 Speed of fast lifting |
m/min | 30 | |
加压力Feeding force | T | 10 | |
快速下放速度 Speed of fast putting down |
m/min | 60 | |
最大进给行程 Max feeding stroke |
mm | 6600 | |
回转系统 Rotation system |
最大回转扭矩Rotary torque | Nm | 8000/4000 |
最大回转速度Rotary speed | r/min | 70/140 | |
行走系统 Travelling system |
行走速度Travel speed | Km/h | 2.5 |
爬坡能力Grade ability | ° | 21 | |
工具卷扬 Tool winch |
提升力Lifting force | T | 1.5 |
推荐钻杆直径 Drilling rods diameter |
/ | mm | 89/102 |
运输尺寸 Transport dimension |
长x宽x高 Length x Width x Height |
mm | 5800x2000x2600 |
整机重量 Machine weight |
/ | T | 9 |
可选配的配件 Optional accessories |
发电电焊机、泥浆泵、泡沫泵 Welding generator、Mud pump、Foam Pump |

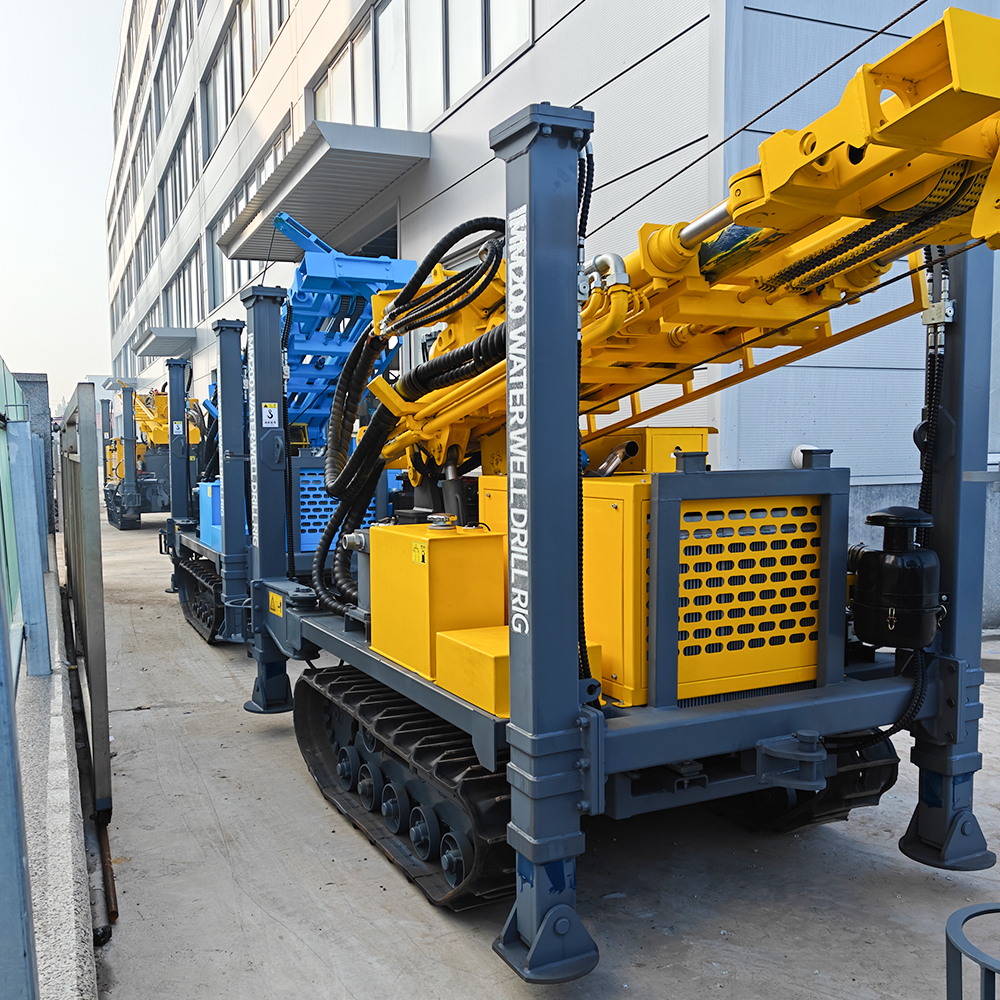

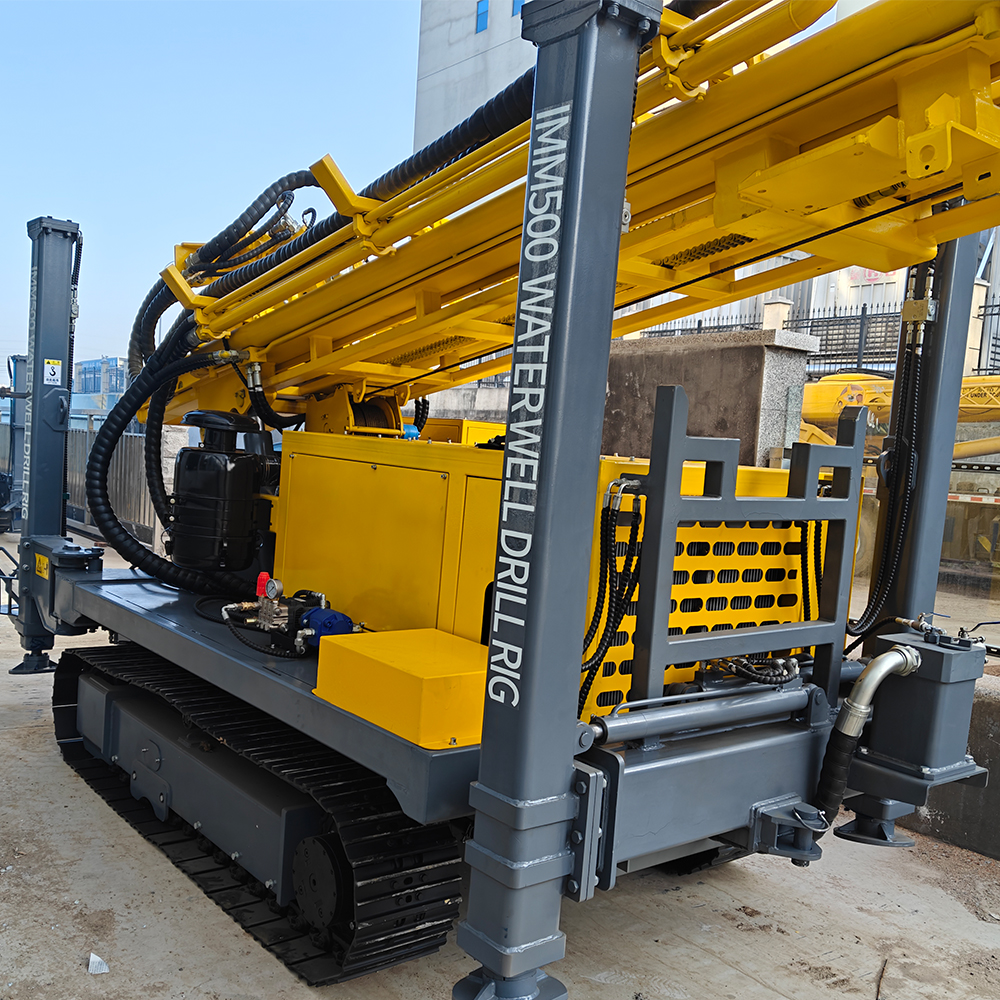

Real shot of IMM delivery scene:
