Truck mounted water well drilling rig MWC-300SV

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40FR/Bulk Carrier
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union

DMiningwell MWC series truck mounted water well drilling rig is a fully hydraulic top drive, efficient and multifunctional mechanical equipment, which can be widely used for drilling water wells, geothermal wells, detection wells, precipitation wells, rescue wells, gas layers, natural gas, oil extraction and other projects. This drilling rig can use compressed air down the hole drilling in various formations, and can also be combined with a mud pump to achieve dual use of water and gas. The hydraulic system and key components of the drilling rig are all from top domestic and foreign brands, significantly reducing its failure rate and extending the working life of the drilling rig. The lifting of the drilling rig tower, the unloading of drill rods, the rotation and feeding, the support legs, and the hoisting are all implemented by hydraulic systems, greatly reducing labor intensity

Inquiry Now

Send Email

Product Introduction

Show details

Technical data

Application

Related cases

Product Introduction

The DMiningwell MWC series truck-mounted water well drilling rig is a highly efficient and multifunctional mechanical device with full hydraulic top drive. It is widely applicable to engineering drilling such as water wells, geothermal wells, detection wells, precipitation wells, rescue wells, gas layers, natural gas, and oil extraction. It has the function of down-hole drilling with compressed air in various formations and can be combined with a mud pump to achieve dual-purpose use of water and gas. The hydraulic system and key components of this drilling rig are all products of top domestic and foreign brands, effectively reducing the failure rate and prolonging the service life of the drilling rig. Operations such as lifting the drilling rig tower, loading and unloading drill rods, rotary feeding, supporting legs, and hoisting are all completed by the hydraulic system, greatly reducing labor intensity.
Product Features

1. Mobile conveniencee;
2. Multi functional drilling;
3. Efficient drilling;
4. Easy to operate;
5.Strong flexibility.

Show details

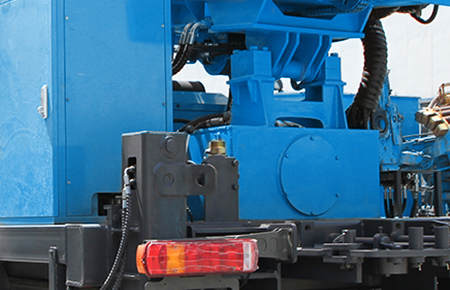

Sino HOWO Truck

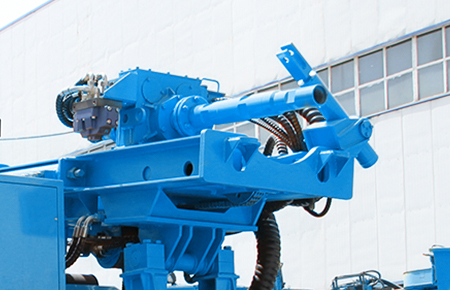

Rotary Head

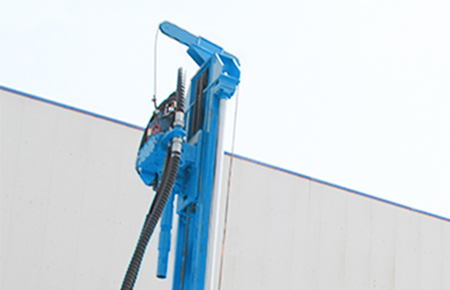

Swing Joint

Technical data

item	value
Applicable Industries	Retail, Energy & Mining
Showroom Location	None
Place of Origin	China
	Zhejiang
Weight	20000KG
Warranty	1 Year
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Motor, Pump, Other, Gear, Gearbox
Key Selling Points	Low Maintenance Cost
Drilling Diameter	105-300mm
Drilling Depth	Max.300m
Condition	New
Type	Rotary Drilling Rig
Power Type	Diesel
Brand Name	D miningwell
Use	Water Well
Dimension(LWH)	9.12.553.4m
Mobility
Air pressure	1.2-3.5
Air consumption	16-55
Drill pipe length	3/6
Drill pipe diameter	89/114
Axial pressure	4
Lifting force	16
Max rotary torque	9600/4800
Max rotary speed	80/160
Advance the itinerary	3/6
Drilling efficiency	10-35
