MWGF150 Multifunctional Crawler Photovoltaic Drilling Rig

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 20FR/Bulk Carrier
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union

MWGF150 multi-functional crawler drilling rig is a multi-purpose drilling rig integrating photovoltaic piling, foundation piling, blasting hole drilling, and down-the-hole drilling.
Share:
Product Description
  The drilling rig is equipped with Yuchai 75KW turbocharged diesel engine, and adopts new hydraulic technology with low air consumption. The rotary gearbox adopts dual motors and high-torque gearbox, which is convenient to move and compact structure. At the same time, the sliding frame has the function of expansion and contraction compensation. When drilling, the sliding frame supports the ground, and the drilling performance is stable. The diameter of photovoltaic piling can reach 150mm-400mm, and the diameter of DTH hammer construction can reach 100mm-350mm. The rig adopts a high-torque motor. The drilling rig has the characteristics of flexible maneuverability, strong climbing ability, suitable for rough site operations, convenient perforation and displacement, high drilling efficiency, easy maintenance and high reliability. It is an ideal multi-purpose drilling rig for photovoltaic piling, mining, road, water conservancy, power station and other construction facilities.
Show details

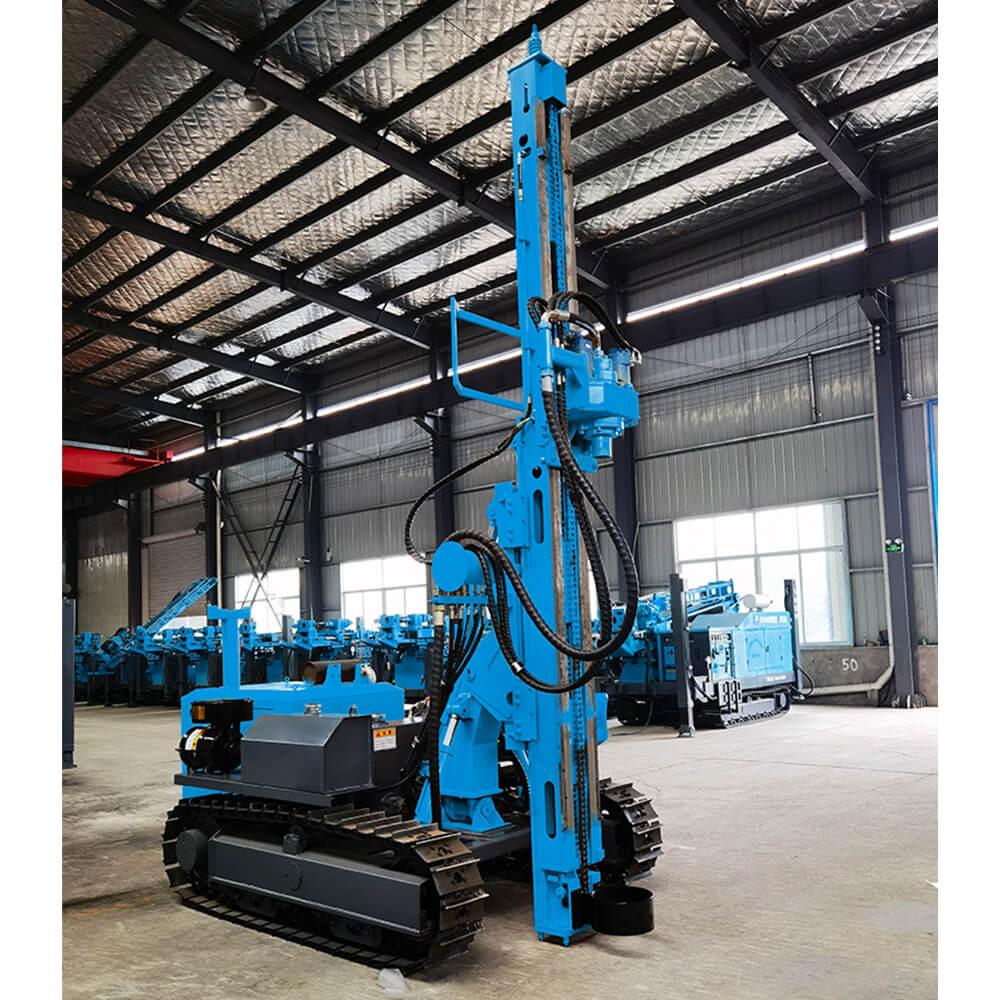

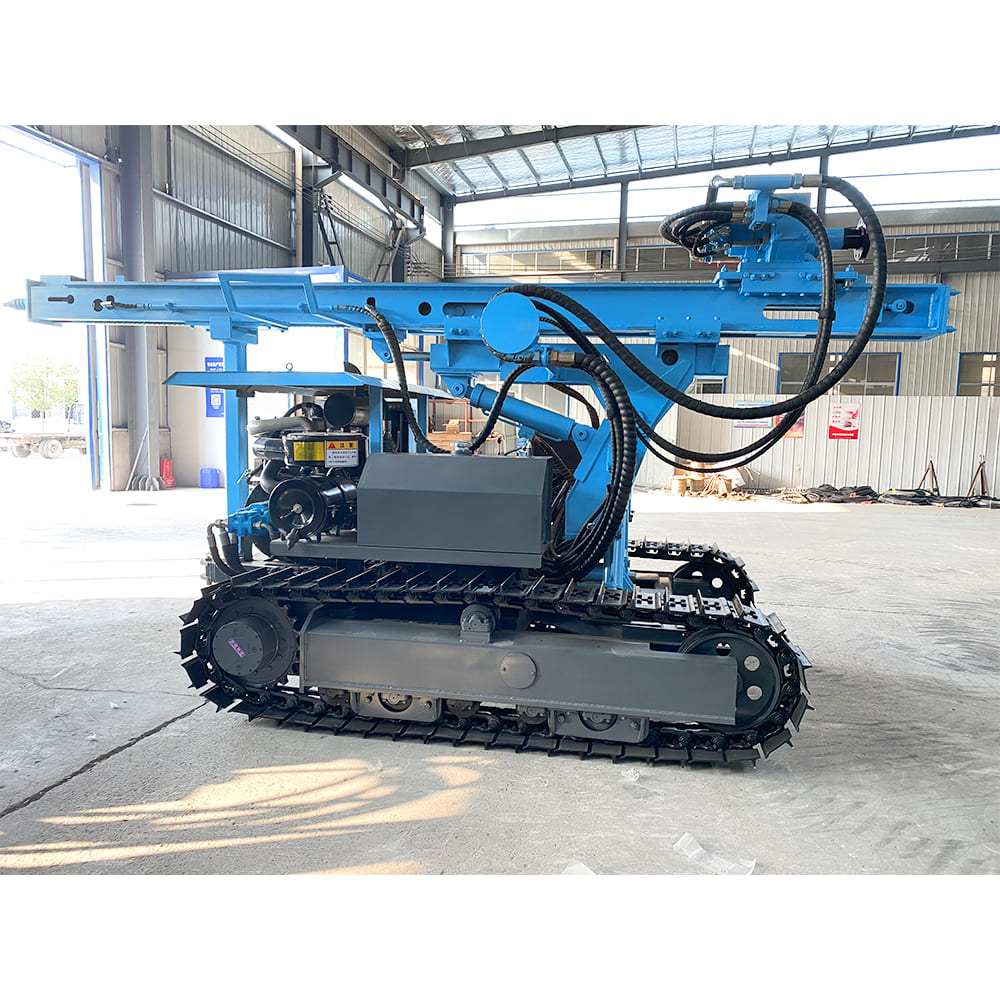

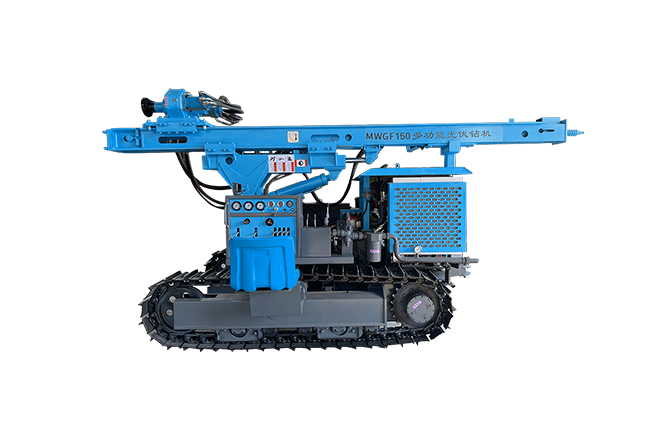

Overview of solar drilling rig

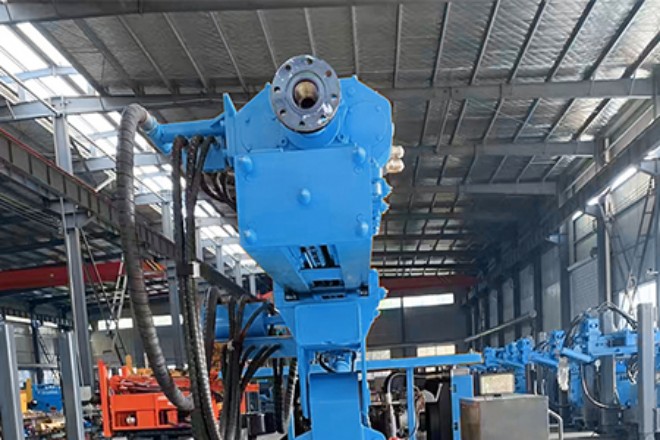

Rotary Head

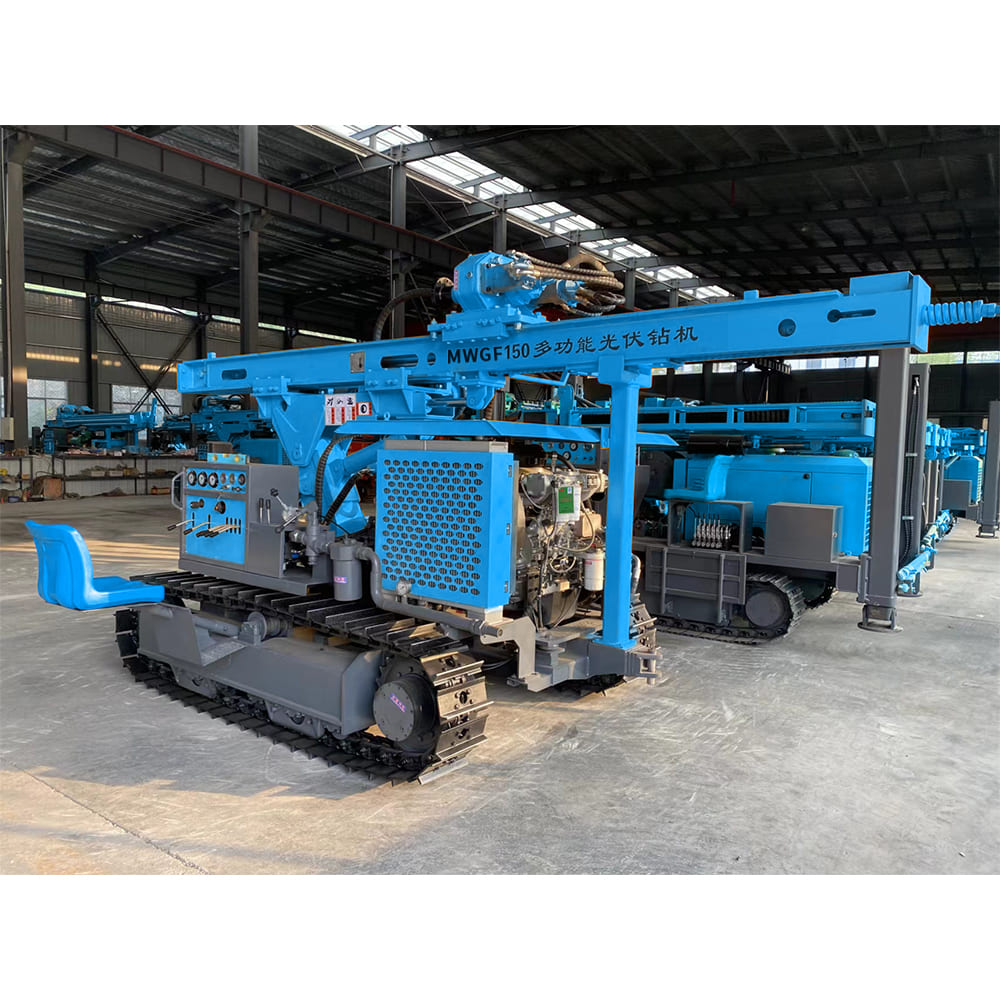

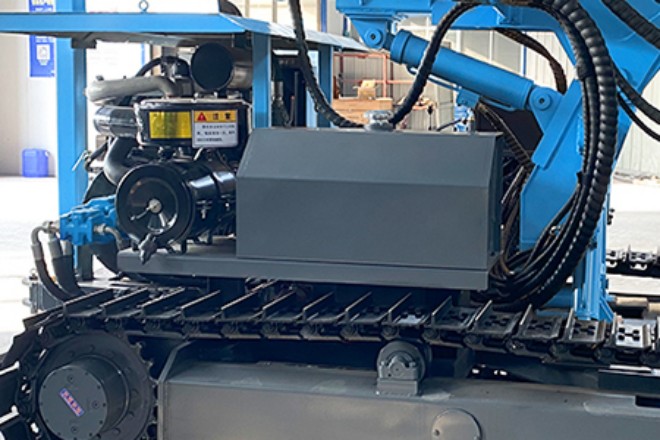

Engine and Fuel Tank
Technical Paraments
Technical Paraments MWGF150
Total Weight 5.01 T
Outer Dimension 5.2*2.0*2.55m
Drilling Depth 80m
Walking Speed 3km/h
One-time Feed Length 3m
Maximum Torque 3800/5500N.m
Rotary Speed (High Speed) 85r/min
Rotary Speed (Low Speed) 40r/m
Chassis Ground Clearance 33cm

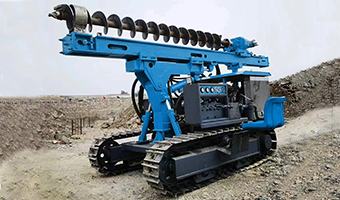

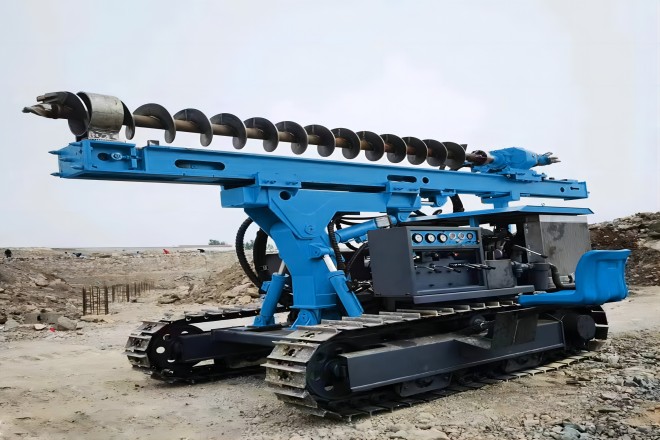

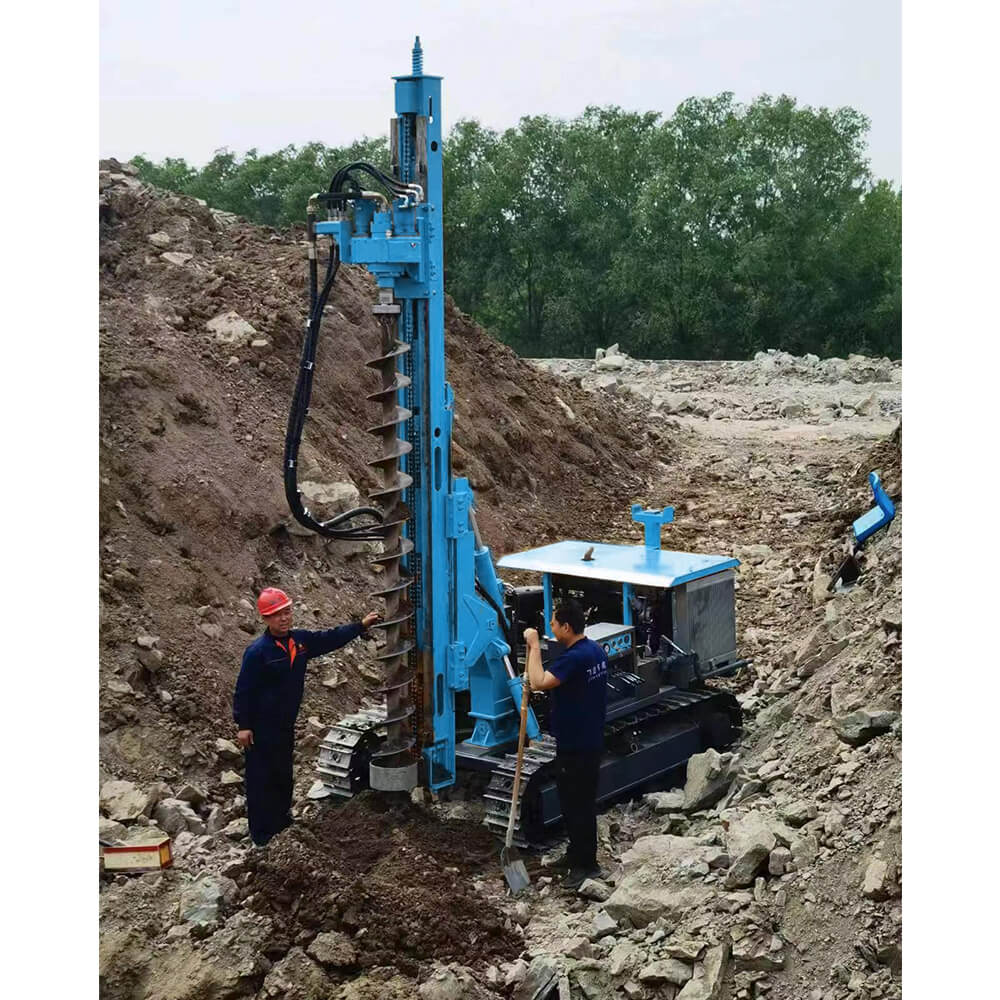

Application
