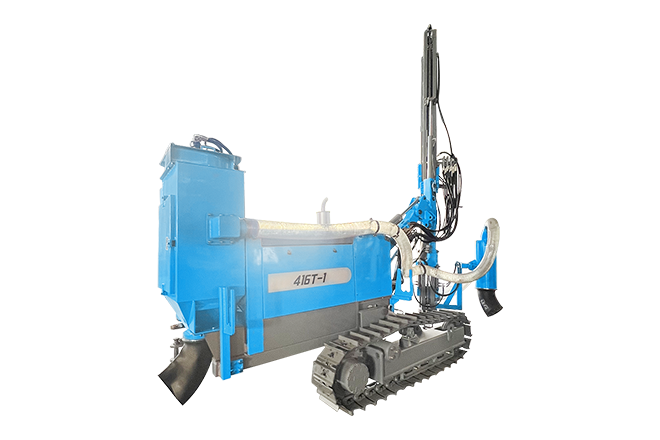

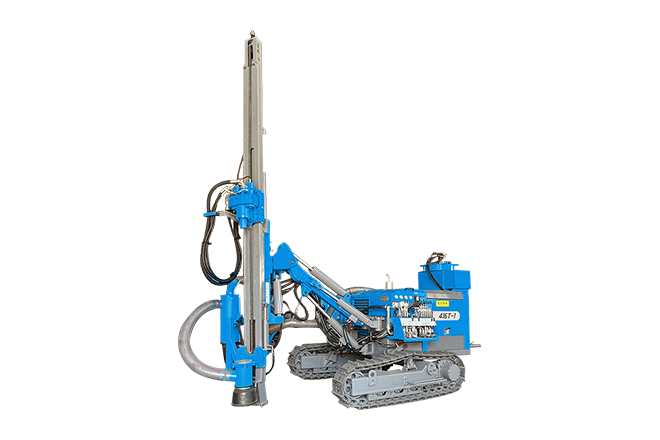

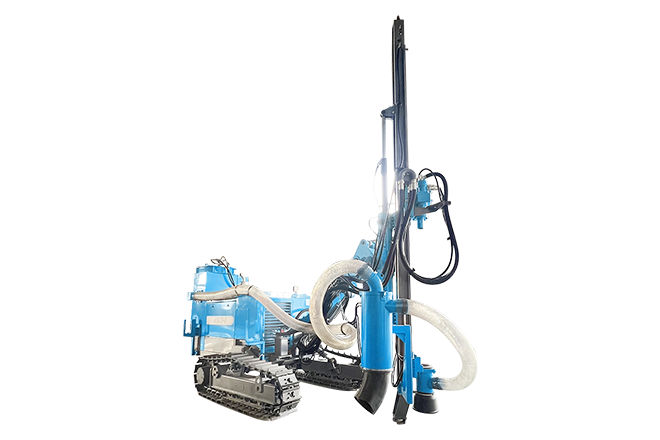

DMiningwell Seperate drill rig 416T-1

Brand Name: D miningwell
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

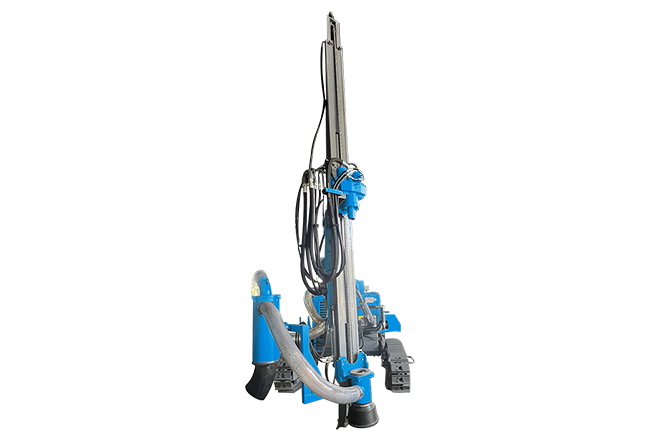

DMiningwell 416T-1 small split down-the-hole drill rig is mainly used in quarries, cement mines, open-pit coal mines and other types of mines. It is equipped with a 3.5-inch impactor, a main hole diameter of 90, high drilling efficiency, excellent dust collection effect, and a wide range of applications. It is widely used in mines and national defense, transportation, water conservancy, stonework and other projects. It is an ideal rock drilling equipment that is deeply welcomed by users.
Share:
Product Introduction
DMiningwell 416T-1 product features:

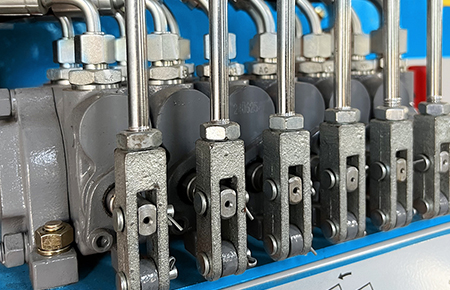

1. Equipped with dual-motor rotary head and adjustable rotary speed multi-way valve, the rotary torque can reach 2200N.m;

2. The maximum rotary speed can reach 150 revolutions, meeting the needs of some customers for high-speed drilling in soft rock formations;

3. The engineering single-ribbed crawler and plunger motor make the climbing ability stronger, the quality more stable and reliable, and can better adapt to the complex geological and road environment of open-pit mines;

4. The dry dust removal system developed by Zhigao Company is adopted, which is efficient and environmentally friendly.
Show details

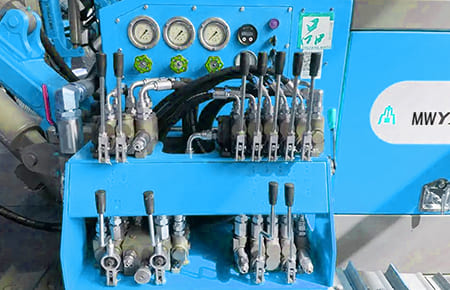

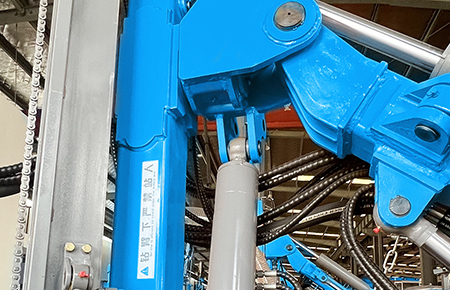

Slide components
Rotator

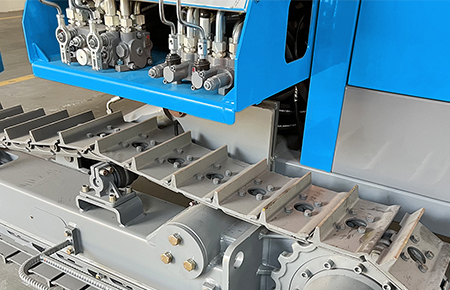

Chassis assembly
Technical data
Model ZGYX-416T-1
Engine Yuchai 58KW
Drill Pipe Size 76*3000 mm
Hole Range 90-127mm
Hole Depth(Max.) 25m
Rotation Torque(Max.) 2200 N.m
Rotation Speed 0-150rpm
Feed Force 15kN
Pull Up Force 25kN
Feed Type Hydraulic cylinder-chain
Tramming Speed(Max.) 2.5km/h
Gradient 25°
Total Weight 4400 kg
(L*W*H)Transportation Dimensions 5,700*2,130*2,300 mm

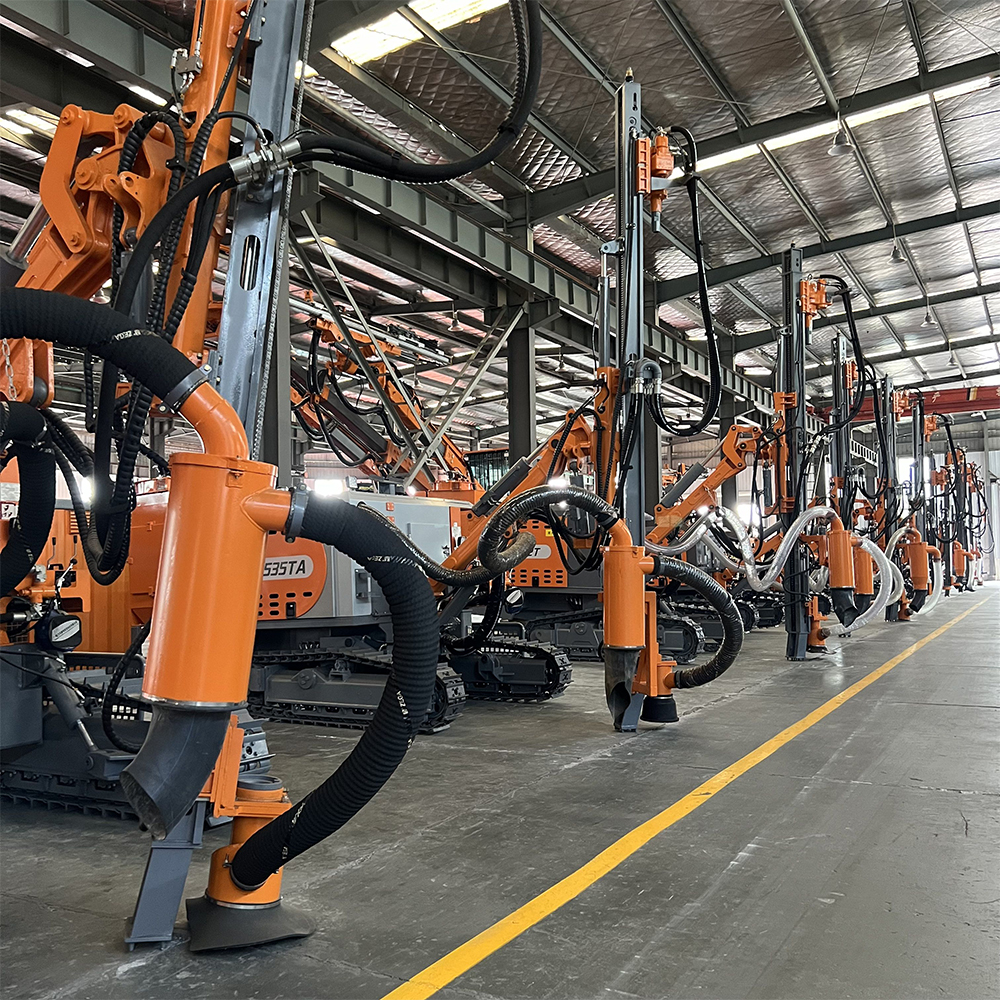

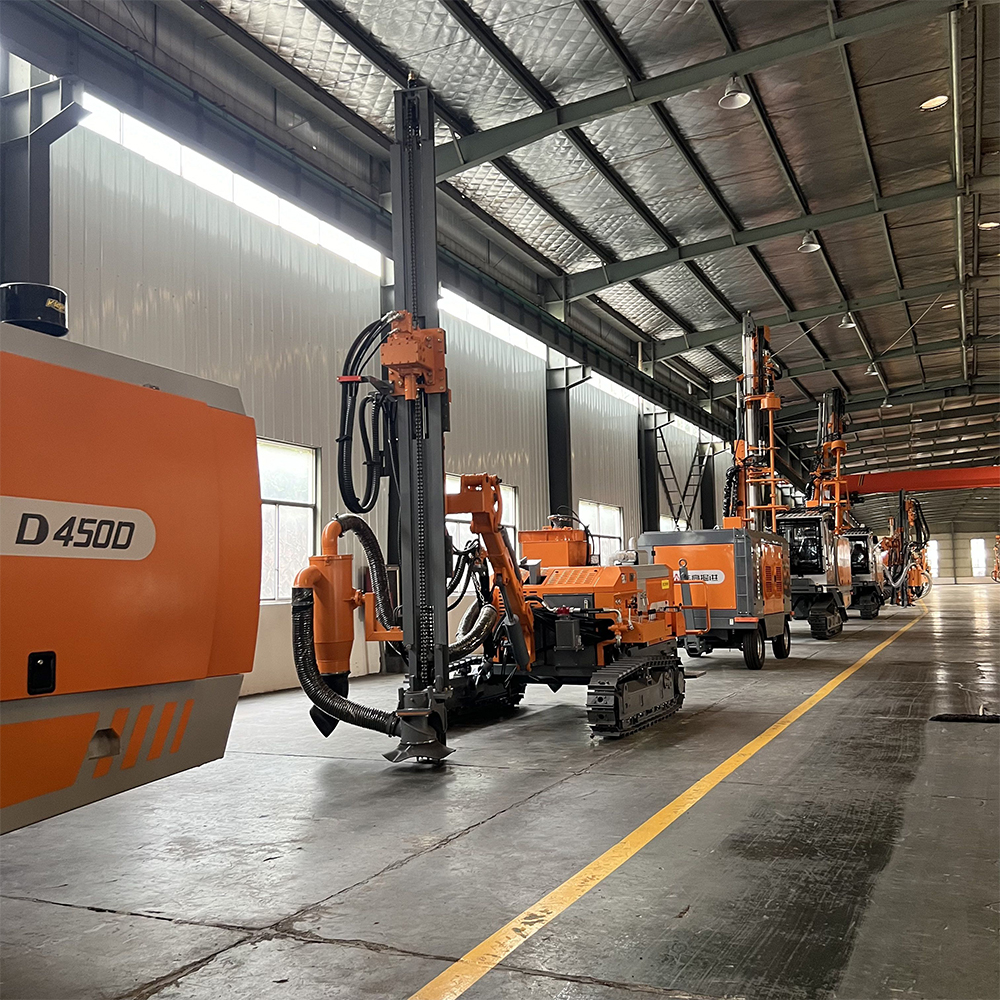

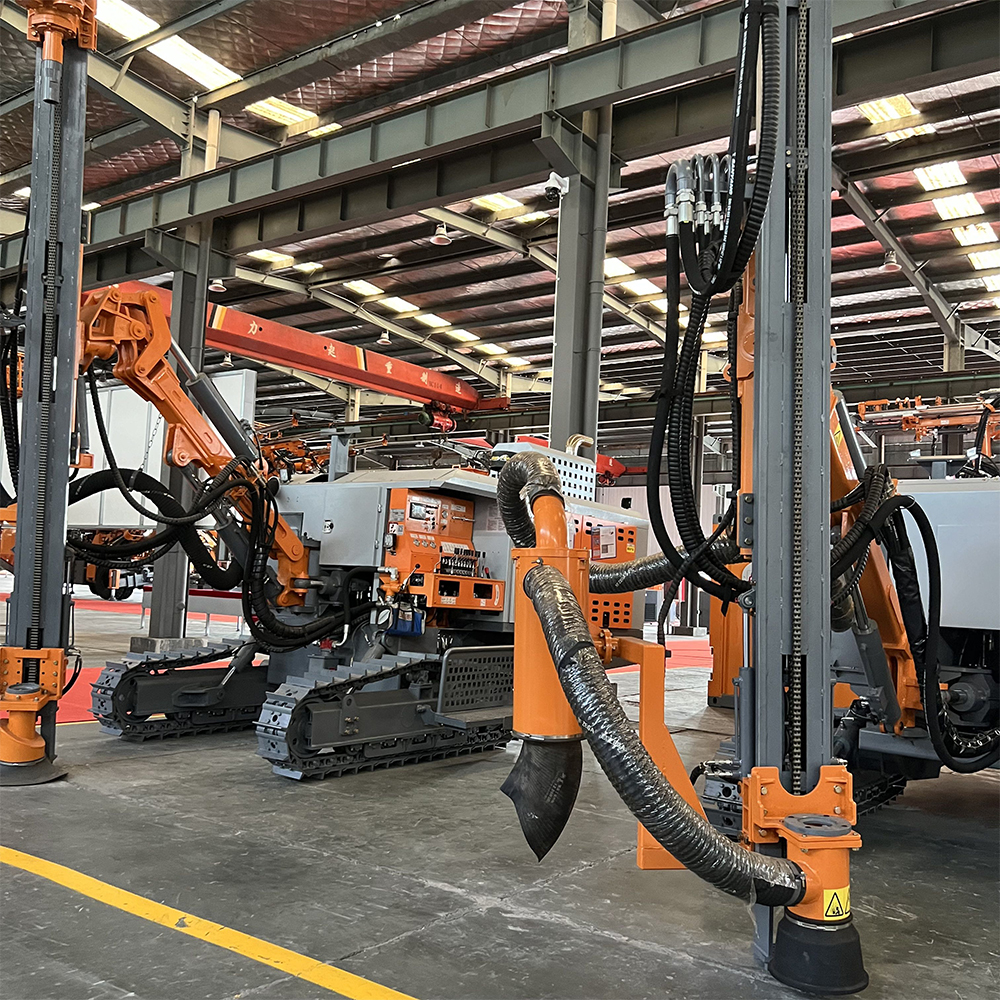

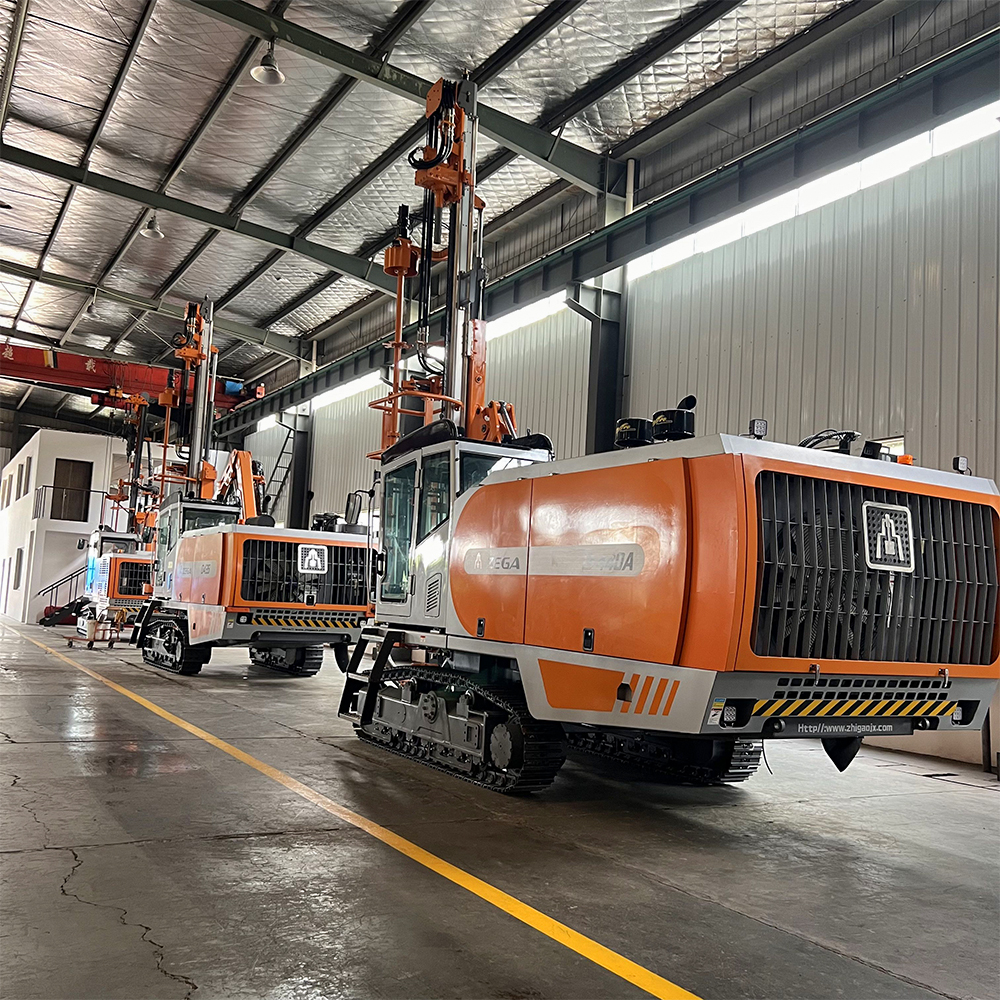

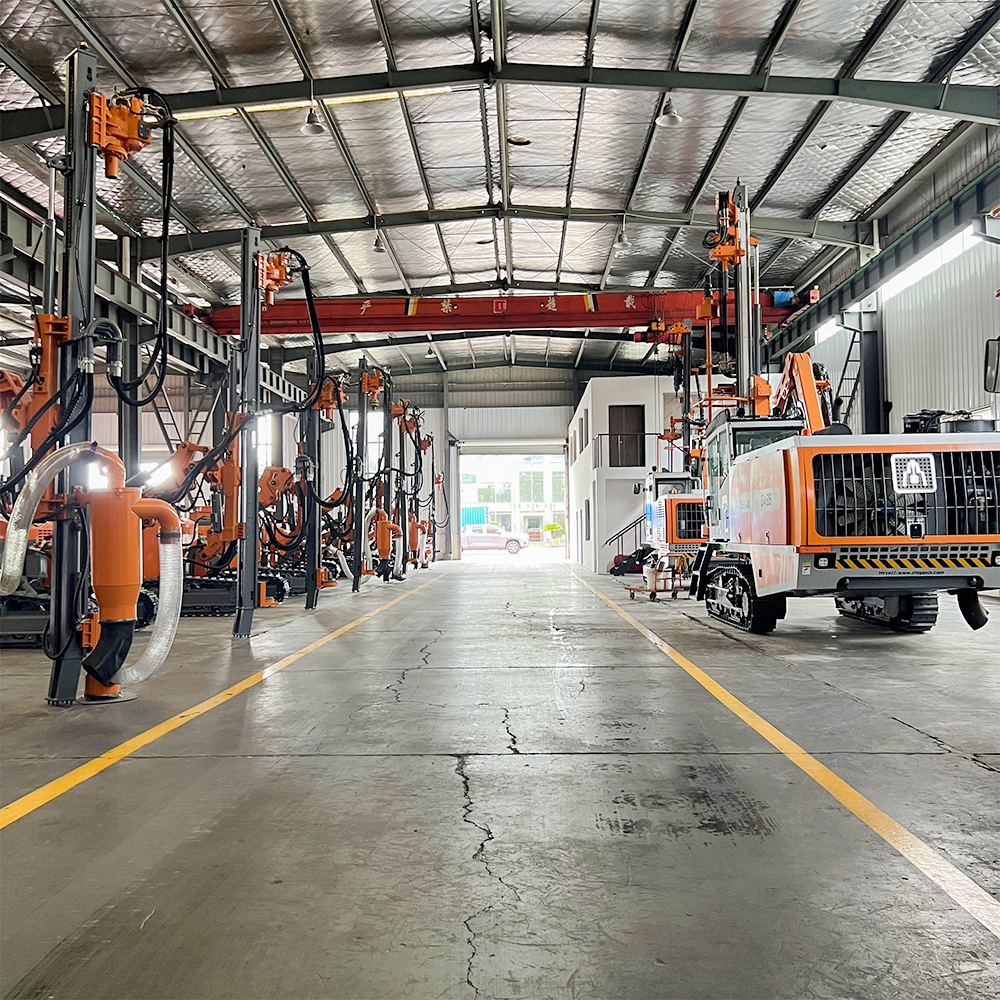

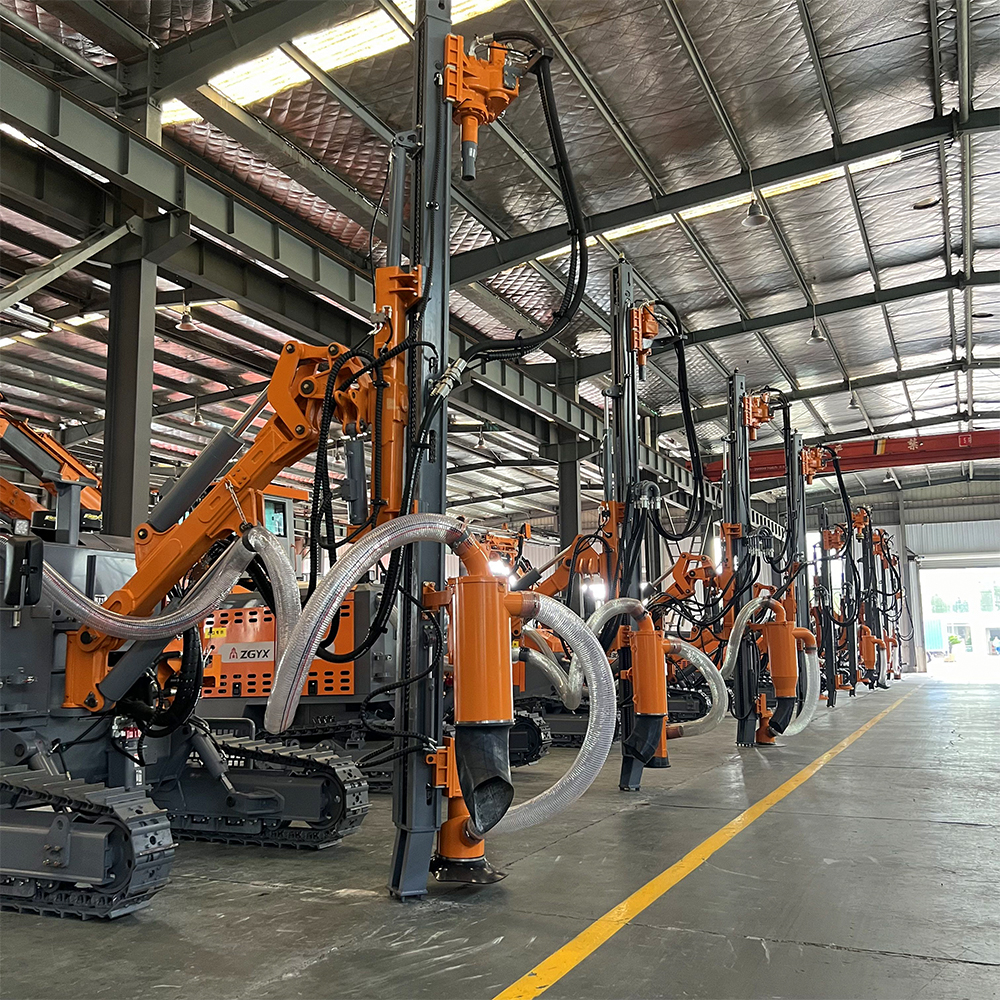

Factory Showcase
