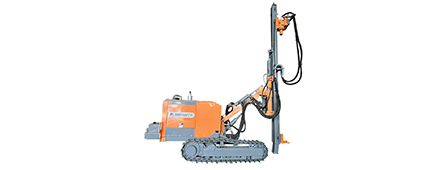

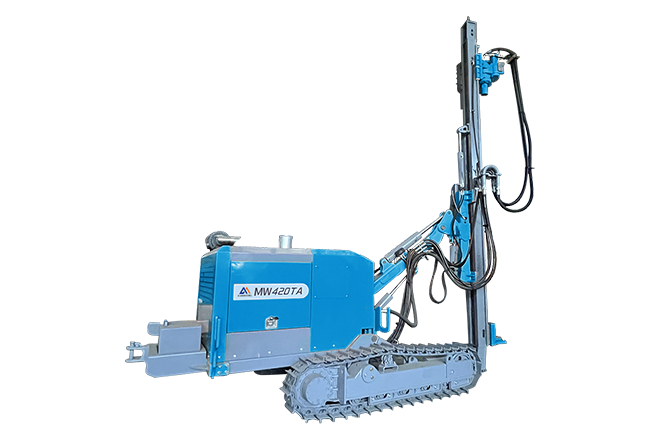

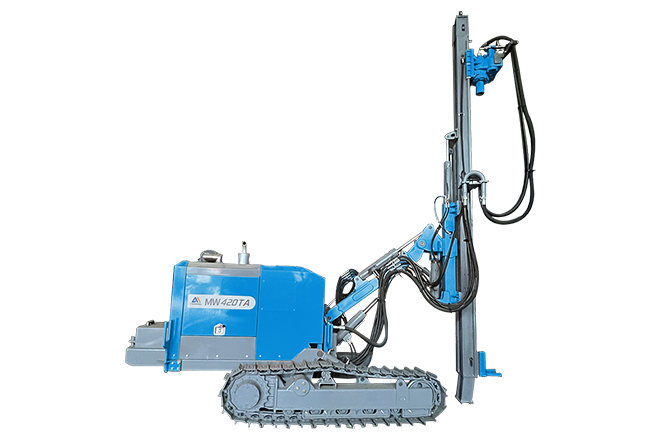

DMiningwell Seperate DTH drill rig 425TA

Brand Name: D miningwell
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

This split down-the-hole drill is mainly targeted at various mines such as quarries, cement mines, and open-pit coal mines. It is equipped with a 4-inch impactor and is mainly used for 115mm diameter holes. It features high drilling efficiency, excellent dust collection effect, and a wide range of applications. It is widely used in mining, national defense, transportation, water conservancy, stonework and other projects. It is an ideal rock drilling equipment popular with users.
Share:
Product Introduction

Product Features:

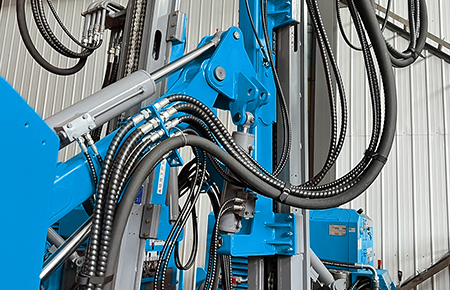

  1. The newly designed rotary head improves the structural strength of the box body, prolonging the service life and stability of the machine.
  2. Standard box-type traveling beam and international construction machinery crawler. The plunger traveling motor makes climbing more powerful and the quality more reliable.
  3. The addition of the leveling function improves the climbing and off-road performance of the equipment, meeting the construction requirements of different working conditions.
  4. The new outer cover shell design makes the maintenance and use of the drill rig more convenient and enhances the aesthetics of the drill rig.
  5. A dry dust collector device can be optionally installed, making drilling dust-free, more environmentally friendly and energy-efficient.
Show details
Technical data
Type
Rotary Drilling Rig
Power Type Diesel
Use rock drilling
Drilling Diameter 110-180mm
Drilling Depth Max.30m
Place of Origin Zhejiang, China
Weight 5500 KG
Warranty 1 Year
Core Components Motor, PLC, Engine, Other, Gear, Bearing, Pump, Pressure vessel
Key Selling Points Famous brand low voltage components
Brand Name Legend-ZGYX-420TA-1
Dimension(L*W*H) 7300*2370*2700mm
Machinery Test Report Provided
Video outgoing-inspection Provided
Mobility mobile
Product name Separated DTH Surface Drilling Rig
Drilling rod Dia:76x3000mm
Drilling hole Dia 190-138mm
Engine Yucai/74kw
Rotational torque(Max) 3200N.m
DTH Hammer 4"
Diesel Tank Volume 70L
Weight 5500kg
Advantage High Working Effiency
Keyword DTH Blasthole Drilling Machine
Selling Units: Single item
Single package size: 560X230X250 cm
Single gross weight: 5500.000 kg
