Position : Home > Products > Air compressor > Electric portable screw air compressor

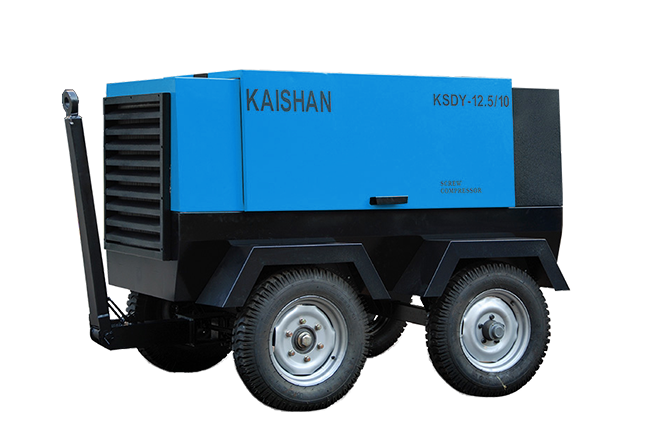

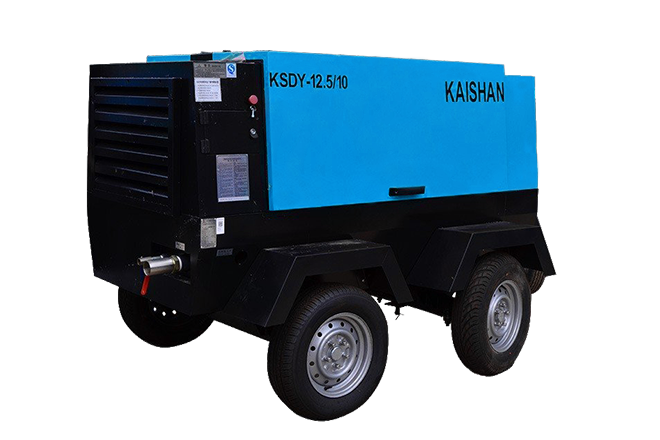

Electric screw air compressor KSDY Series

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

This electric portable screw air compressor is widely used in roads, railways, mining, water conservancy, shipbuilding, urban construction, energy, military and other industries. Because it uses electricity, it is very environmentally friendly.
Share:
Product Introduction

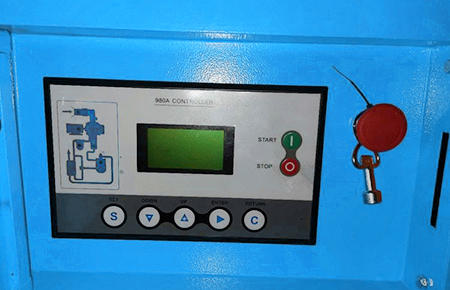

KS series new screw air compressor humanized man-machine interface display control system
1. The operation is particularly convenient and simple
2. The operating status is clear at a glance
3. There is a spare output interface, which can realize multi-unit interlocking control and remote diagnosis control

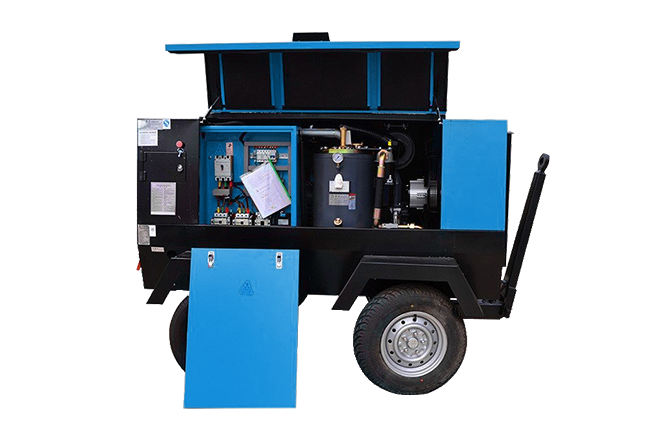

KS series new screw air compressor with built-in oil separation system
The built-in oil separator design ensures the oil-gas separation effect and reduces the fuel consumption. The product quality is fully guaranteed from the initial design

KS Series New Type Screw Air Compressor High-efficiency Air Intake Control Valve
1. ON/OFF control method
2. With check valve anti-injection design

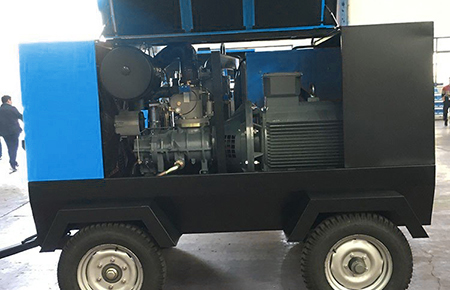

KS series new type screw air compressor, a new generation of low-consumption and high-efficiency motors
1. Large starting torque
2. Insulation class F, protection class IP54
3. SKF bearings, low noise, long life
Show details
Technical data
Model Air pressure(bar) Air capacity(m³/min) Motor power(kW) Weight(kg) Dimension(mm)
KSDY-13.6/8 8 13.6 75 1700 3200*1600*1900
KSDY-12.5/10 10 12.5 75 1700 3200*1600*1900
KSDY-10/14.5 14.5 10 75 1700 3200*1600*1900
KSDY-16.5/8 8 16.5 90 2400 3200*1600*2000
KSDY-13/14.5 14.5 13 90 2400 3200*1600*2000
KSDY-20/8 8 20 110 3000 3200*1700*2000
KSDY-24/8 8 24 132 3200 3300*1700*2000
KSDY-17/13 13 17 132 3200 3300*1700*2000
KSDY-15/17 17 15 132 3200 3300*1700*2000
KSDY-19/17 17 19 185 4000 3800*1800*2100
KSDY-24/14 14 24 185 4000 3800*1800*2100
