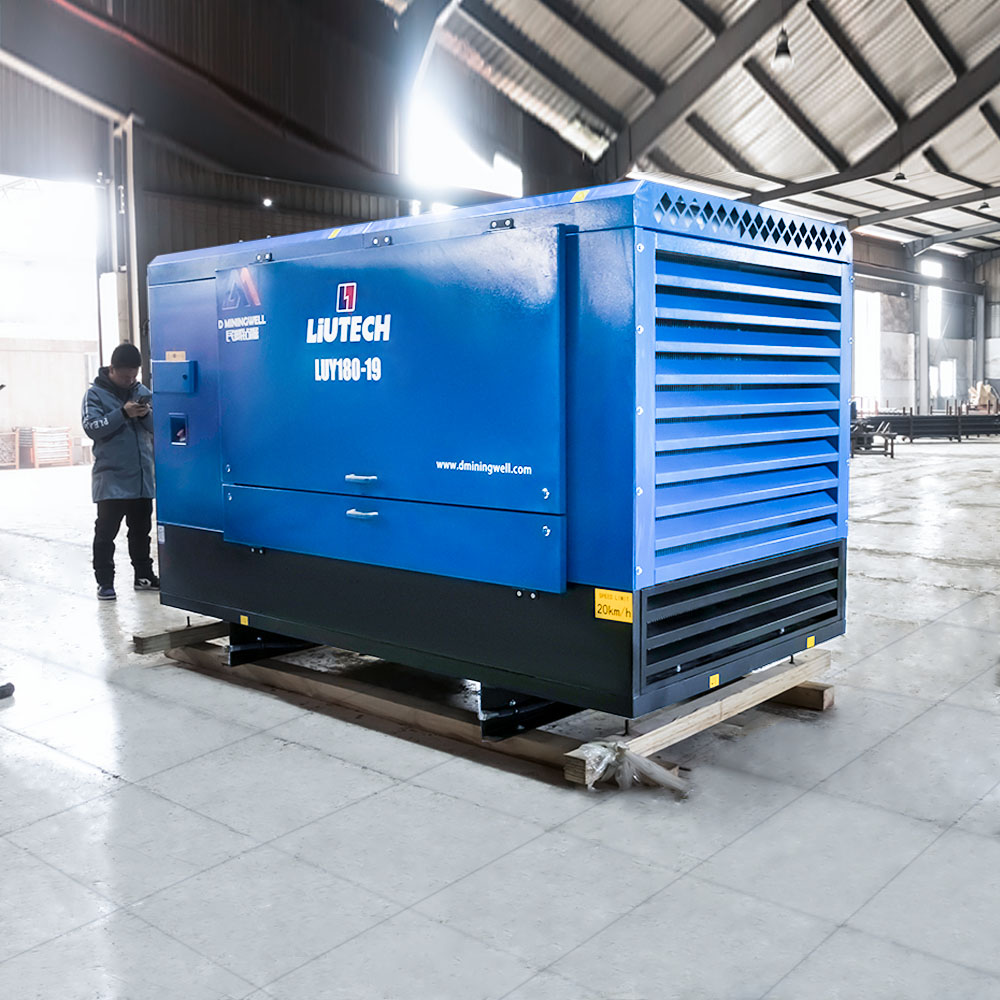

D Miningwell LUY180-19 Screw Air Compressor 19 bar 635 Cfm Portable Compressors

LUY180-19 is a mobile screw air compressor manufactured by Liuzhou Fuda Machinery Co., Ltd, designed for mining, construction, municipal engineering and other high-pressure, high-flow compressed air demand scenarios. As a wholly-owned subsidiary of Swedish Atlas Copco Group, Liuzhou Fuda relies on the group’s hundred years of technological accumulation and deep understanding of the Chinese market working conditions to create industrial equipment of excellent quality.

Exhaust pressure: 19 bar
Exhaust flow: 18 m³/min
Engine: Yuchai 191kw
Overall dimensions: 2926 mm × 1660 mm × 1920 mm
Weight: 3000 kg
Noise level: 83±3 dB(A)

Rated 5/5 based on 396 customer reviews
Share:
Next:
Content

In the field of mineral mining and blasthole drilling, the operating environment is generally faced with severe challenges such as low temperature, high altitude and remoteness. Fidelity mobile air compressors are designed for such working conditions with low-temperature starting package and high-altitude adaptability to ensure stable operation under extreme temperature and thin air conditions; equipped with 300L large-capacity diesel fuel tanks that can support continuous operation for more than 8 hours, significantly reducing the frequency of stopping for replenishment.

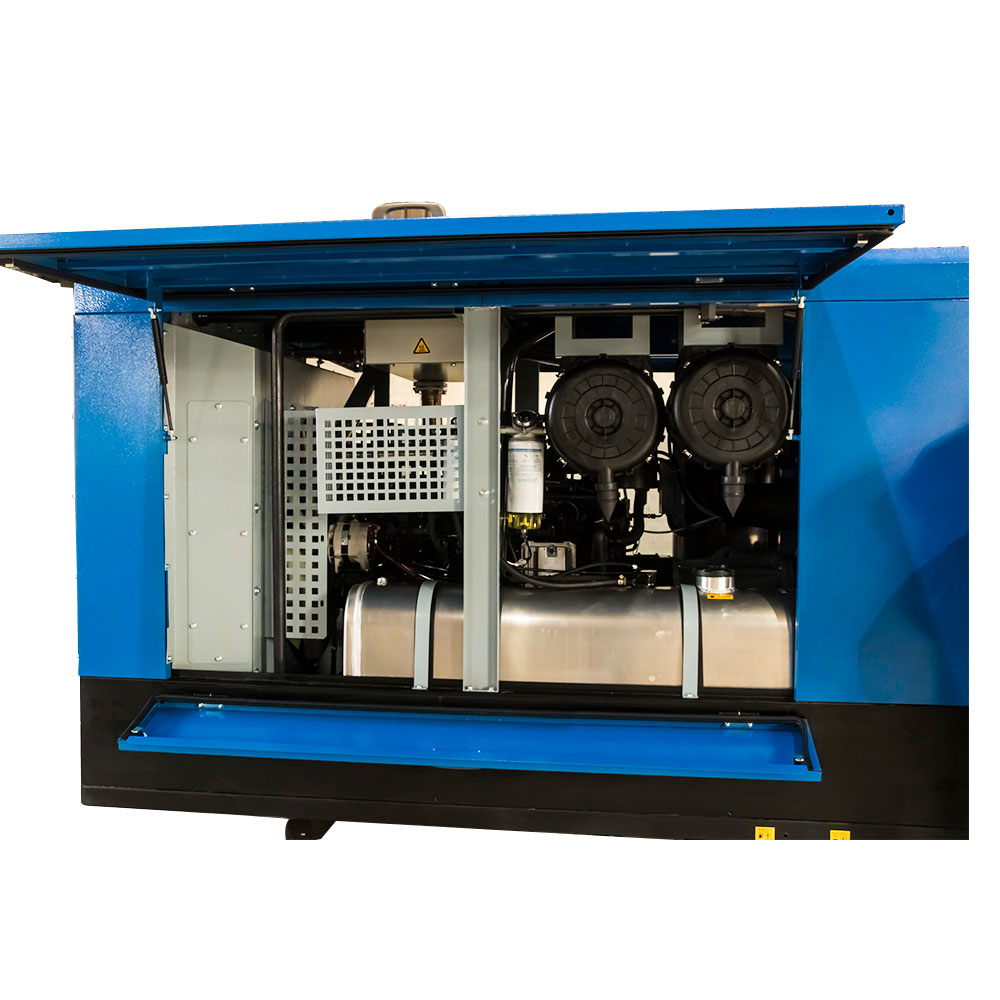

The equipment adopts modular structure design, intuitive and easy-to-understand operation interface, convenient daily maintenance, effectively reducing the cost of manual intervention and maximising the utilisation of operating time. Its core value is to provide continuous power output of high pressure (19MPa) and large flow rate (18m³/min) for pneumatic drilling rigs, which is widely used in crushing and drilling of metal minerals such as iron ore, copper ore, gold ore, and the mining and processing of limestone and polymerised minerals.

In actual scenarios, Fidelity mobile compressors can accurately drive down-hole drills, rock drills and other equipment to achieve efficient drilling and crushing of large rock bodies, providing reliable power protection for subsequent mineral sorting and grinding (such as cement raw material processing), and helping customers to achieve cost reductions and efficiency gains under complex working conditions.

Model NO. LUY180-19
Power Source Diesel Engine
Structure Type Semi-Closed Type


Type

Single Screw Compressor


Transport Package

Nude Packing or Wooden Case
Trademark D Miningwell
HS Code 84143019
Cooling System Water Cooling
Cylinder Position Horizontal
Installation Type Movable Type


Engine



Yuchai 191kw



Specification

2926*1660*1920m m 3000kg
Origin Zhejiang
Production Capacity 15 Sets Per Month

We can provide high quality professional drilling rig air compressor solutions and corresponding after-sales service for drilling rig users.
