Truck mounted water well drilling rig MWC-1000V

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40FR/Bulk Carrier
Delivery Time: 30-45 days
Payment Terms: L/C, T/T, Western Union

DMiningwell MWC series truck mounted water well drilling rig is a fully hydraulic top drive, efficient and multifunctional mechanical equipment, which can be widely used for drilling water wells, geothermal wells, detection wells, precipitation wells, rescue wells, gas layers, natural gas, oil extraction and other projects. This drilling rig can use compressed air down the hole drilling in various formations, and can also be combined with a mud pump to achieve dual use of water and gas. The hydraulic system and key components of the drilling rig are all from top domestic and foreign brands, significantly reducing its failure rate and extending the working life of the drilling rig. The lifting of the drilling rig tower, the unloading of drill rods, the rotation and feeding, the support legs, and the hoisting are all implemented by hydraulic systems, greatly reducing labor intensity
Share:
Product Introduction

Product Features of D miningwell's New Rotary Drilling Rig



I. Wide Applicability and Reliable Source


  1. Wide Industry Adaptability
    • Applicable to multiple fields such as retail, energy and mining. Whether it is basic engineering in retail site construction, or operations such as energy extraction, mine drilling and well construction, this drilling rig can play a role. Its versatility stems from in-depth research and design optimization for different working conditions.
    • Advantages of Origin: Produced in Zhejiang, China. By utilizing the local mature industrial manufacturing system, it ensures strict quality control from parts production to complete machine assembly. The whole machine weighs up to 26,000KG and has dimensions of 10.82.54.23m. The stable structure design provides a solid foundation for its operation in various complex environments.
  2. New Quality Assurance
    • As a new product, it has undergone a strict quality inspection process before leaving the factory. Provide mechanical test reports and video outgoing inspections to give customers an intuitive and clear understanding of product quality. And enjoy a 1-year warranty for the whole machine and a 1-year warranty for core components (motors, pumps, gears, gearboxes, etc.), greatly enhancing customers' confidence in purchasing.


II. Excellent Performance Parameters


  1. Powerful Drilling Capacity
    • The drilling diameter range is from 105 - 800mm, and the maximum drilling depth can reach 1000m. Whether it is rapid construction of shallow wells or ultra-deep water well drilling and large-scale engineering hole operations, it can be completed efficiently. Different drilling diameter options can meet various engineering needs and be proficient in handling operation tasks of different calibers under complex geological conditions. The air pressure is between 1.65 - 8, and the air consumption is 16 - 96, providing stable power support for the drilling process. The drill pipe diameter is 114mm, and the length is available in 3m and 6m. The axial pressure reaches 11, and the lifting force reaches 51/52. The strong axial pressure and lifting force can ensure the stable operation of the drill pipe and efficient drilling and lifting operations during the drilling process. The maximum rotation torque is 20000/10000, the maximum rotation speed is 70/140rpm, and the advancing stroke is 7. This enables the drilling rig to quickly break rocks and discharge cuttings in different strata, and the drilling efficiency is between 10 - 35, greatly improving the construction progress.
  2. Efficient Power System
    • Adopting diesel power has strong power output and can adapt to various harsh working environments and terrain conditions. In different scenarios such as remote mountainous areas and high-altitude areas in the energy and mining industries or retail construction sites, it can operate continuously and stably to ensure the smooth progress of the project.
  3. Good Mobility and Flexibility
    • Although the whole machine is relatively heavy, it has a certain degree of mobility and can be flexibly transferred between construction sites, reducing the time cost of equipment transportation and installation. It can reach different operation points conveniently and quickly, improving the overall construction efficiency.


III. Advantage of Low Maintenance Cost


    • Key components are made of high-quality materials and are carefully designed and optimized to reduce the failure rate. During long-term use, compared with similar products, it can save a lot of maintenance costs and time costs, bringing higher economic benefits to customers. This advantage makes D miningwell's new rotary drilling rig highly competitive in the market and an ideal choice for many industry customers.
Show details

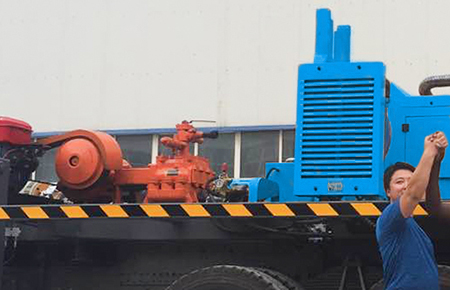

Sino HOWO Truck

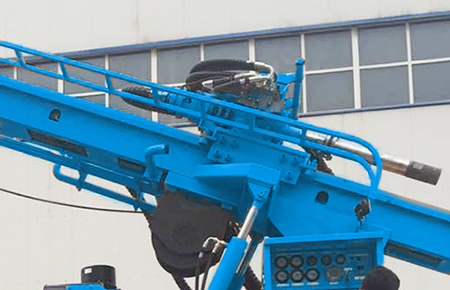

Rotary Head

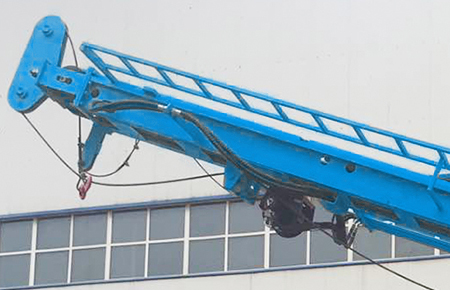

Swing Joint
Technical data
item value
Applicable Industries Retail, Energy & Mining
Showroom Location None
Place of Origin China
  Zhejiang
Weight 26000KG
Warranty 1 Year
Marketing Type Ordinary Product
Machinery Test Report Provided
Video outgoing-inspection Provided
Warranty of core components 1 Year
Core Components Motor, Pump, Gear, Gearbox, Other
Key Selling Points Low Maintenance Cost
Drilling Diameter 105-800mm
Drilling Depth Max.1000m
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Brand Name D miningwell
Use Water Well
Dimension(L*W*H) 10.8*2.5*4.23m
Air pressure 1.65-8
Air consumption 16-96
Drill pipe length 3/6
Drill pipe diameter 114
Axial pressure 11
Lifting force 51/52
Max rotary torque 20000/10000
Max rotary speed 70/140
Advance the itinerary 7
Drilling efficiency 10-35
