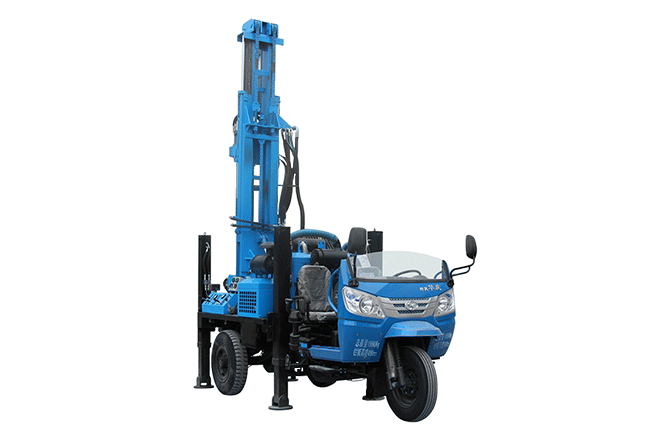

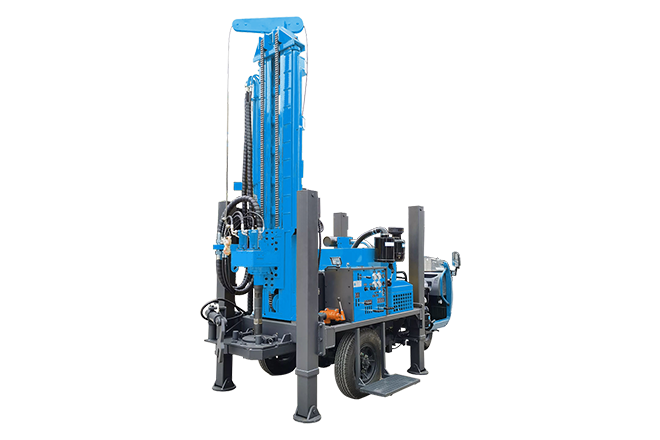

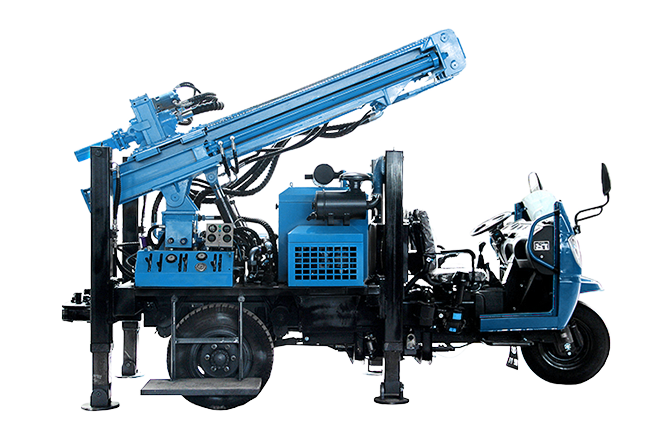

Vehicle-mounted water well drilling rig MWL200B

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

Vehicle-mounted water well drilling rig MWL200 is suitable for industrial and civil drilling and geothermal drilling. It has the advantages of large drilling diameter, deep drilling depth, fast footage, and flexibility.
Product Introduction
  1. MWL200B series deep(water) well-drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
  2. Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
  3. Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
  4. The top-mounted driving head principal shaft has a great drift diameter,suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

Show details
Technical data
Technical Parameters MW-180 MW-200 MW-280 MW-300
Drill depth(m) 180 200 280 300
Drill diameter(mm) 140-254 140-305 140-305 140-325
Equipped Engine YC 65kW YC 70kW YC 75kW YC 85kW
Drill pipe diameter(mm) φ76 φ89 φ76 φ89 φ76 φ89 φ76 φ89 φ102
Drill pipe length(m) 1.5/2.0/3.0 1.5/2.0/3.0 1.5/2.0/3.0/6.0 1.5/2.0/3.0
Swing speed(rpm) 45-70 45-70 40-70 40-70
Swing torque(N.m) 3200-4600 4000-5300 4500-6000 5700-7500
Rig lifting force(T) 12 15 17 18
Weight(T) 5.2 6.5 7.6 7.2
Dimension(mm) 4000*1630*2250 4000*1850*2300 5900*1850*2360 4100*2000*2500
Model MW-400 MW-500 MW-680 MW-800
Drill depth(m) 400 500 680 800
Drill diameter(mm) 140-350 140-350 140-400 140-400
Equipped Engine DEUTZ 103kW YC 118kW Cummins 154kW Cummins 194kW
Drill pipe diameter(mm) φ89 φ102 φ102 φ108 φ114 φ102 φ108 φ114 φ102 φ108 φ114
Drill pipe length(m) 1.5/2.0/3.0/6.0 1.5/2.0/3.0/6.0 1.5/2.0/3.0/6.0 1.5/2.0/3.0/6.0
Swing speed(rpm) 50-135 40-130 45-140 45-140
Swing torque(N.m) 7000-9500 7500-10000 8850-13150 9000-14000
Rig lifting force(T) 25 26 30 36
Weight(T) 9.4 11.5 13 13.5
Dimension(mm) 5950*2100*2600 6200*2200*2650 6300*2300*2650 6300*2300*2950
