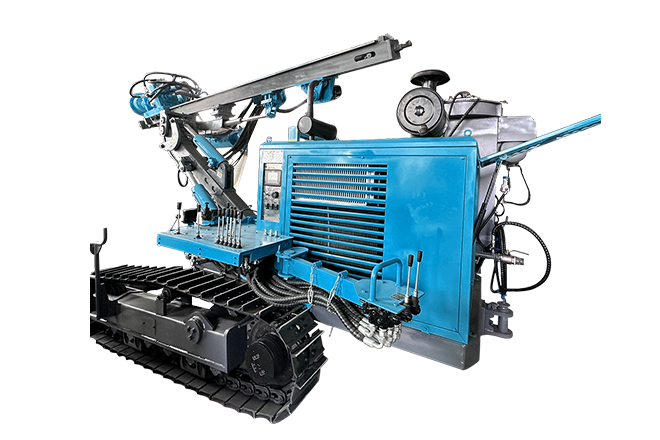

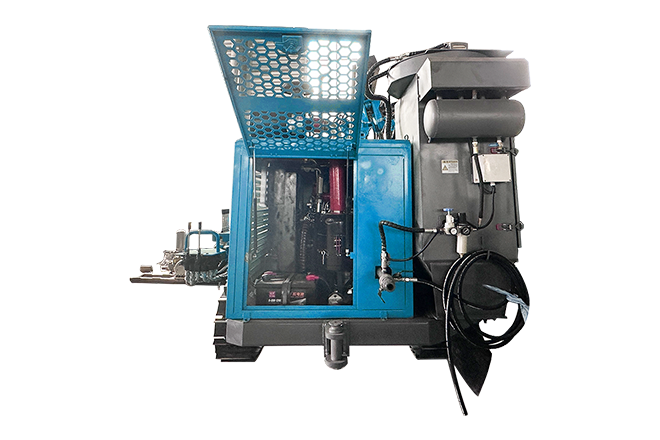

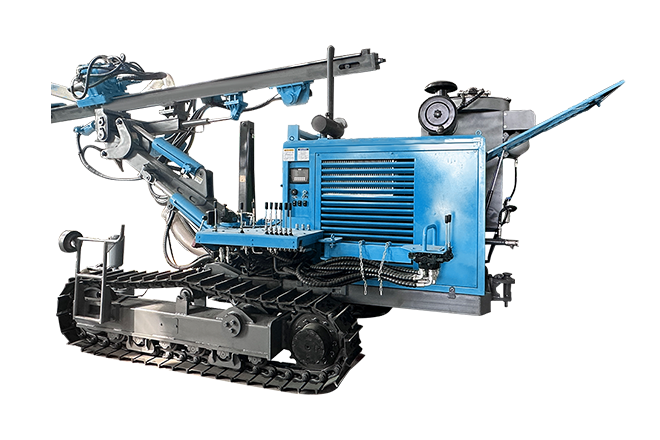

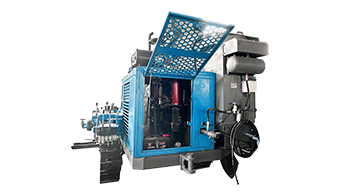

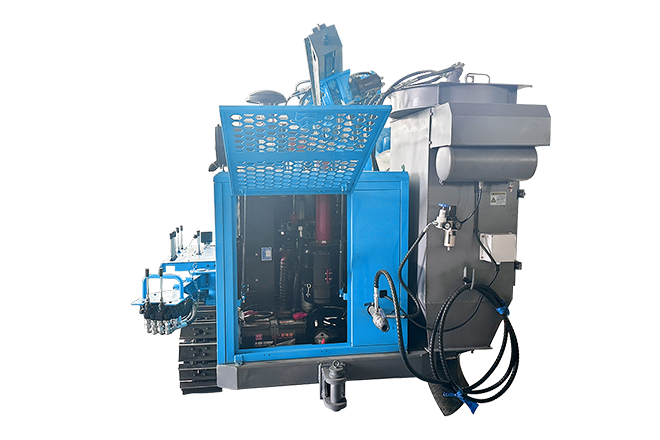

Crawler mounted hydraulic DTH drilling rig JL590-3

Product Introduction

Main features of drilling rig

The JY590-3 crawler hydraulic down-the-hole drilling rig is mainly developed for various types of mines such as quarries, cement mines, open-pit coal mines, etc. It can complete the drilling construction of main blast holes and pre-split holes. Down-the-hole drilling rigs have the characteristics of large drilling diameter, high drilling efficiency, and wide adaptability. They are widely used in the production of mining materials, coal, metallurgy, chemical industry, etc., and are also used in engineering departments such as geology, construction, hydropower, transportation, and military. Main equipment in construction.

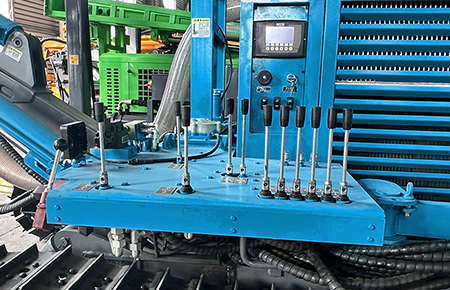

1. The control valves are centrally arranged to facilitate the operation and control of the drilling rig. The system is reliable and simple, and the maintenance cost is low.

2. Rapidly advance and lift operations, reduce auxiliary time and improve efficiency.

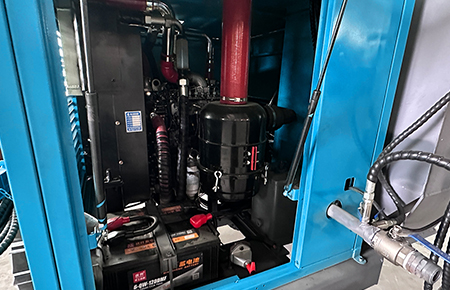

3. Strengthen the cooling system to avoid high temperature shutdown and ensure reliable performance.

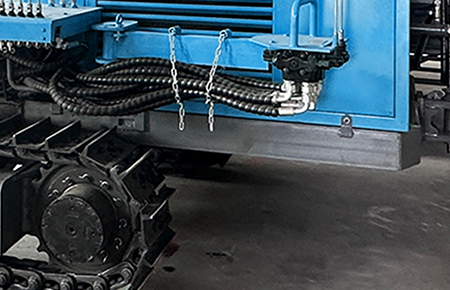

4. Swingable crawler chassis, easy leveling, high ground clearance, good passability and strong maneuverability.

Show details

Technical data

Technical parameters

Item	Unit	Parameter
Drilling diameter	mm	φ90-φ180
Pipe length	m	3
Working pressure	Mpa	1.2-2.5
Rock hardness	/	F=6-20
Feeding stroke	mm	4140
Max. horizontal drilling height	mm	3400
Max.rotation torque	N.m	6000
Rotation speed	rpm	0-120
Walking speed	km/h	2-4
Grade ability	°	30
Power	kW	77.3
Dimension	mm	7050x2200x2150
Weight	kg	7100
Dust collector(optional)	/	Hydraulic dry tpye dust collecting / wet type
