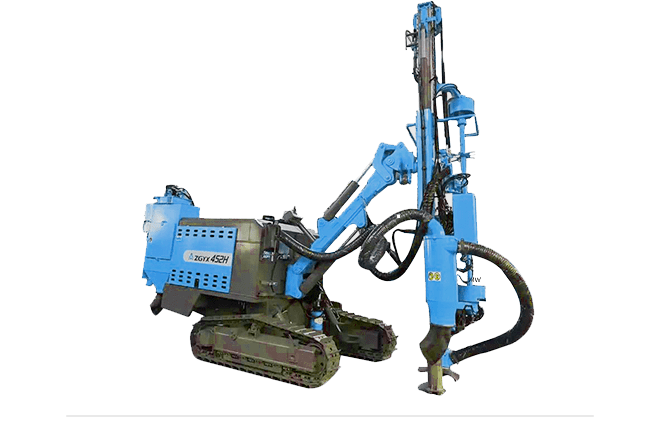

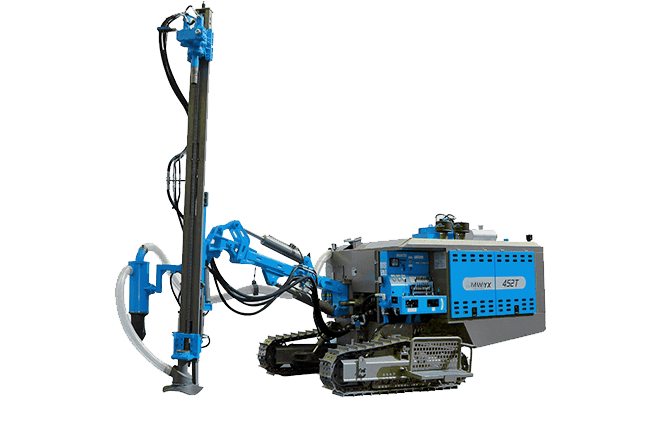

MWYX452 Integrated DTH Drill Rig

Brand Name: D miningwell
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

MWYX-452 Integrated DTH Drill Rig is powered by Yuchai YC6A260L-T301 and is equipped with a 16/17 screw air compressor. Can meet 90-130mm aperture.
Share:
Product Introduction
1. Using its single power to drive the screw air compressor and drilling rig hydraulic system at the same time, compared with the separated DTH drilling rig, the comprehensive fuel consumption and energy saving are 35%, and the maintenance cost is reduced by 50%;

2. The core hydraulic components are imported from Europe. The reliable hydraulic system greatly reduces the workload of system maintenance and is convenient and practical;

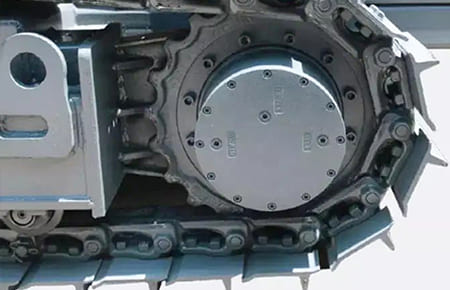

3. Powerful two-speed hydraulic traveling mechanism, strong off-road capability, and large torque swing motor can easily deal with drill stuck;

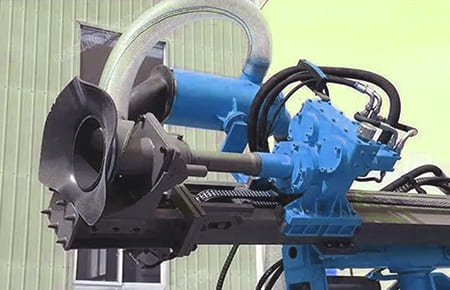

4. The two-stage dry dust collection device is environmentally friendly and helps improve production efficiency; the integrated technology solves the problems of moving and long-distance management of air compressors in engineering and mining.
Show details
Technical data
General Specification
Power Yuchai YC6A260L 191kW
Hole Depth 20 m
Drill Pipe Sizes Φ 76x3000 mm
Hole Dia Φ110-138 mm
DTH Hammer 4"
Rotation Torque(Max.) 2500 N.m
Rotation Speed 0 - 100 rpm
Tramming Speed(Max.) 3 km/h (High Speed) 2 km/h (Low Speed)
Gradient 23°
Track Frame Oscilation ±14°
Weight 9500 kg
Dimension 7567 x 2500 x 2900 mm
Dry Dust Collector Standard
Dual Speed Walking Motor Standard
Matching Air Compressor
Working Pressure 1.7 Mpa
F.A.D 16 m3/min
