CIR 76A DTH Hammer (Low pressure)

Brand Name: D miningwell
Minimum Order Quantity: 1 set
Packaging Details: Plastic/Wooden Case
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union
Usage: Quarry, Mining, Water well drilling, Foundation piling, Tunneling ...

D Miningwell's DTH hammer has the advantages of high drilling efficiency, low failure rate and long service life.
Our drill tools enable efficient and economical drilling even in all types of hard and abrasive harsh rocks.
Share:
Product Introduction

Water well drilling hammer is mainly used in mining, quarry, road construction and other engineering drilling blasting holes, landslide protection, dam site reinforcement, anchoring and other engineering holes, hydrology, water well holes and other fields.

1. The drill bit does not require nylon tubes, thus eliminating the trouble of nylon tubes being broken, damaged and hard due to thermal expansion and contraction.

2. DTH hammer without nylon tube has low energy consumption, high impact frequency, and the drilling speed is 15%-30% faster than the same type of DTH hammer with nylon tube.

3. Because the structure is very simple and the components are reliable, DTH hammer is easy to maintain and has a longer service life.

Show details
Technical data

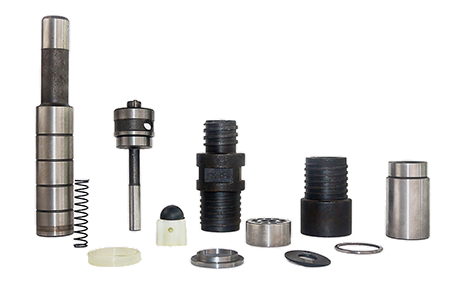

Item Description Weight(Kg) Technical Parameters
Cap 0.26 Length(Lessbit) 811(mm)
Valve 0.04 Weight (Lessbit) 14kg
Valve Seat 0.84 External diameter 67(mm)

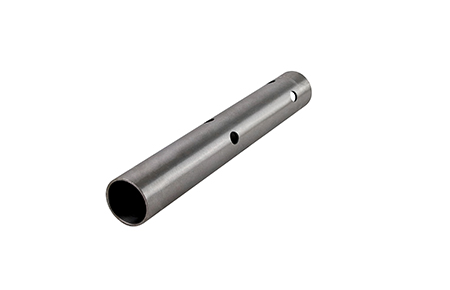

Cylinder 1.32 Bit Shank CIR76A

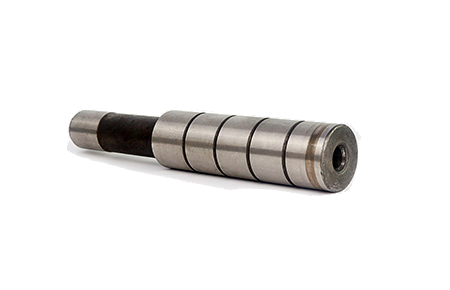

Piston 2.72 Hole Range 76-80(mm)
Guide Sleeve 0.76 Connection Thread T48X10 Square Thread
Rear Connector 1.96 WorkingPressure 0.5-0.7MPa
Outer Casing 5.26 Recommend edrotation speed 5-7m³/min
Front Connector 1.12
