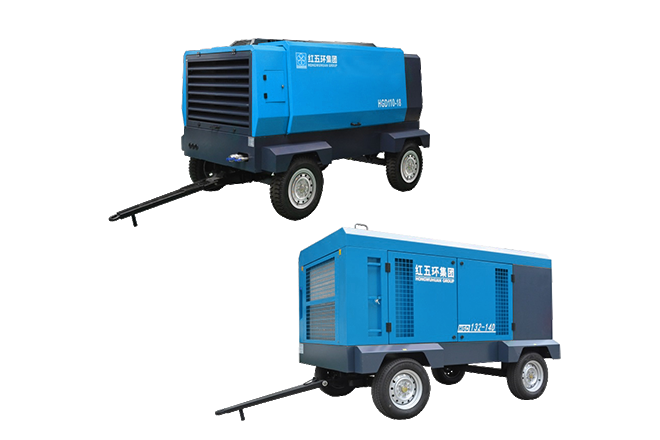

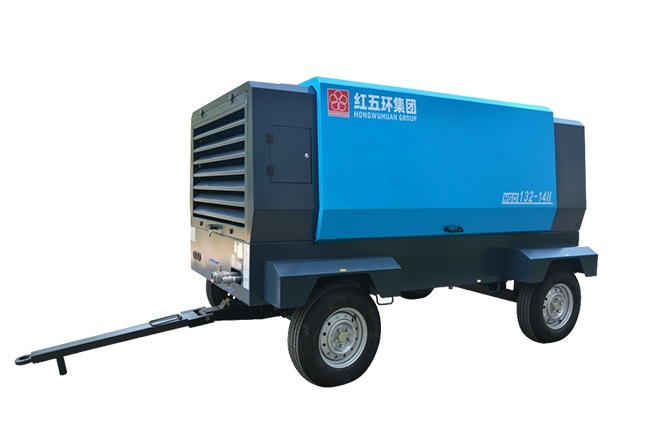

Electric screw air compressor HG Series

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

This series of screw air compressors is simpler and more convenient than diesel because of its electric drive mode: it has the advantages of mobile screw models and is more in line with the development trend of lighter and smaller screw compressors. The new electric shift series has major breakthroughs in system and configuration compared with traditional models, and it has truly achieved high efficiency, high stability, and low energy consumption.
Product Introduction
High Reliability

High-performance motor drive, equipped with SKF bearings, insulation class F, protection class 1P54, star-delta Y-△ start, safe and reliable.

Efficient and Economical

It adopts a large rotor and a direct-connected machine head, with balanced and reliable operation, high transmission efficiency and low energy consumption.

Comprehensive Monitoring

The operating status of the equipment can be fully monitored; the control panel in Chinese and English contrasts the operating status of the equipment at a glance, and is equipped with a very automatic shutdown function to ensure the safety of humans and machines.
Show details
Technical data
Model Engine(kw) Air Capacity (m3/min) Air Pressure (bar) Weight (kg)
HG75-8 75 12 8 2050
HG90-8 90 15.5 8 2600
HG90-14 90 12 14 2600
HG110-8 110 20 8 2800
HG110-18 110 11.5 18 2800
HG132-14 132 15 14 2900
HG132-18 132 14.5 18 4500
HG185-14D 185 22 14 4500
HG185-18D 185 22 18 4500
