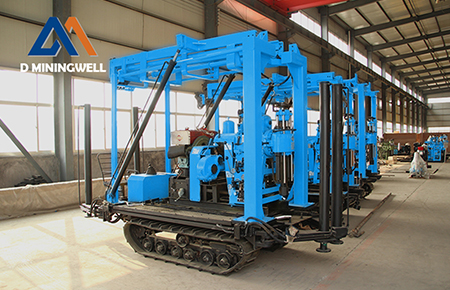

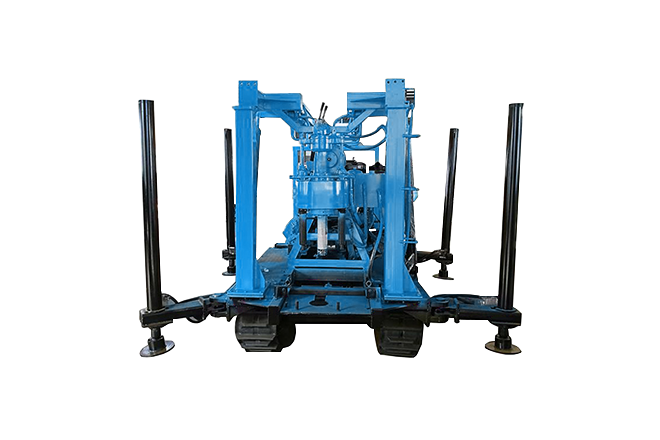

HZ130YY Geological Core Drilling Rig with Crawler

Brand Name: D miningwell
Minimum Order Quantity: 1 set
Packaging Details: Standard Export Packing
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

Product Introduction

Show details

Technical data

Application

Related cases

Product Introduction

1.Drills up to 250m deep, 75-300mm diameter , trailer mounted.

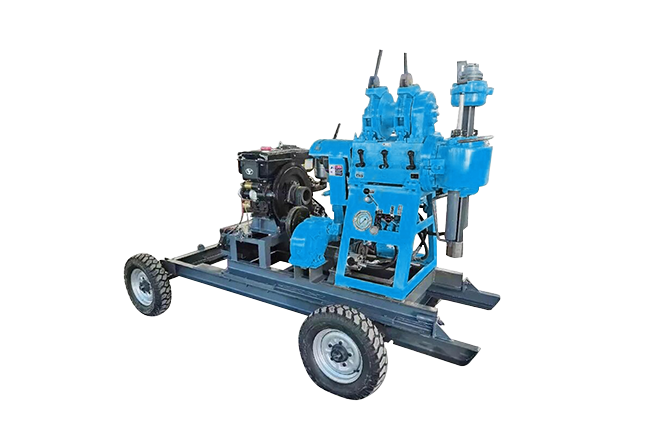

2. Hydraulic control, diesel engine/electric engine , trailer mounted.
3. Drill on soil, sand, gravel, thick\hard rocks, marble, Quartz, and any other hard ground, etc.
4. In the accessory list there are alloy bit for soil, diamond bit for rock, PDC bit for small rock.
5. It is a full set of machine with all 200m accessory can be used upon arrival.

Show details

Technical data

Model	HZ-130Y/130YY	HZ-180Y/180YY	HZ-200Y/200YY
Drilling depth(m)	130	180	200
Open hole diameter(mm)	220	220	325
End hole diameter(mm)	75	75	75
Drill rod diameter(mm)	42-60	42-60	42-60
Drill angle(°)	90-75	90-75	90-75
Matching power(kW)	13.2	13.2	15
Weight without power(kg)	560	610	1150
Dimension(mm)	24007001400	24006001400	27009001600
Revolvtion(rpm)	142/285/570	130/300/480/730/830/1045	64/128/287/557
Stroke(mm)	450	450	450
Max pull force(kg)	1600	2000	2400
Pull speed(m/min)	0.41-1.64	0.35-2.23	0.12-0.95
Rope diameter(mm)	9.3	9.3	12.5
Roll capacity(m)	27	35	35
Rated load(ton)	2	2	5
Height(m)	6	6	6
Dispalcement(L/min)	95	95	145
Max pressure(Mpa)	1.2	1.2	2
ToFrequency(times/min)	93	93	93
Inlet hose diameter(mm)	51	51	51
Outlet hose diameter(mm)	32	32	32
