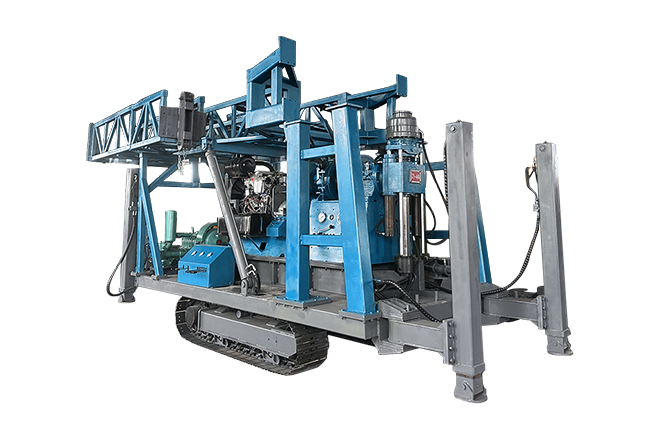

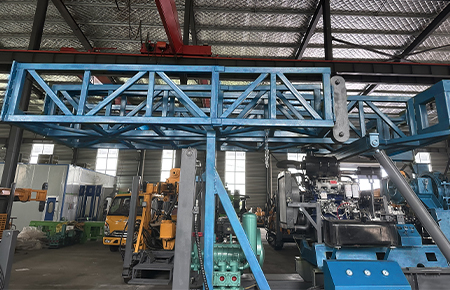

DMiningwell XY-44A Core Drilling Rig

Product Introduction

Main features of XY-44A drilling rig:

1. The drilling rig has many speed levels (12 levels of forward rotation and 2 levels of reverse rotation) and a reasonable speed range. It has large low-speed torque (up to 8000N.m). It is suitable for drilling alloy and diamond cores, and is also suitable for Engineering geological survey, hydrological well drilling and foundation pile engineering construction.
2. The vertical shaft through hole has a large diameter (93mm), double cylinder hydraulic feeding, a long stroke (up to 600mm), and strong process adaptability. It is especially suitable for wireline coring (upper coring) drilling of larger diameter drill pipes. It has It is beneficial to improve drilling efficiency.
3. It adopts Tsinghua Wanliyang 6T46 transmission, which is widely matched on Foton, JAC, Kama, Wuzheng and other truck models. The technology is mature, the quality is stable, the overload capacity is strong, and after-sales service stations and accessories are spread across the country.
4. The hydraulic chuck is a disc spring clamping, hydraulic cylinder releasing, and three-slip automatic centering hydraulic chuck.
5. The hydraulic system uses a gear oil pump for oil supply, which is simple to install, easy to use, has low power consumption, low oil temperature in the hydraulic system, and stable operation. The system is equipped with a hand-operated oil pump. When the power machine cannot work, the hand-operated oil pump can still be used to lift the drilling tool from the hole.
6. The power is FAW Xichai 4110 (81 kW) naturally aspirated engine, and Guangxi Yuchai 4110 (105 kW) turbocharged engine is optional.
7. The drilling rig has a low center of gravity, a long moving distance (460mm), firm fixation, and good high-speed drilling stability.

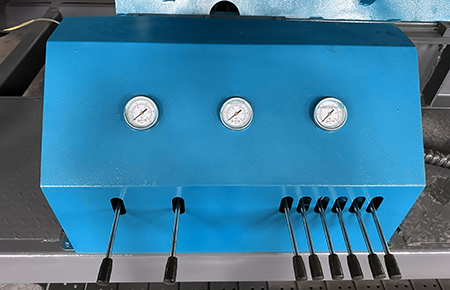

8. Equipped with anti-shock instruments to help control the situation inside the hole. Few operating handles, flexible operation

Show details

Technical data

Technical Parameters		Specification of Drill Pipe (mm)	Drilling depth (m)
Domestic drill pipe	Inside thickening type	42	1400
		50	1000
		60	830
	The rope coring	55.5	1250
		71	1000
		89	800
DCDMA drill pipe		BQ drill pipe	1300
		NQ drill pipe	1000
		HQ drill pipe	750
		PQ drill pipe	420
	Outside thickening type	60	800
		73	500
		89	300
Drill Angle		0°-360°
Engine	Model	Power	Speed
Motor	Y225S-4	37kW	1480r/min
Diesel engine	CA4110	81kW	2800r/min
Gyrator
Type: double cylinder hydraulic feeding machine rotary type
Diameter of vertical		φ93mm
shaft through hole
Vertical spindle speed
Forward rotation (r/min)		60/90/166/272/379/481/183/296/514/835/1164/1476
Reverse speed(r/min)		63/198
Max. torque of vertical shaft		8000N·m
Vertical stroke		600mm
Max. gravity of vertical axis		125KN
Max. vertical shaft pressure		90KN
Hoist
Type: Planetary gear drive, handle brake
Wire rope diameter		φ18.5mm
Capacity of drum wire rope		95m(wound seven layers)
Max. lifting force of single rope		45KN
Hoisting speed of wire rope
Linear speed of drum (m/s)		0.7-2.68m/s (twelve grades)
The clutch
Type: automobile special dry single disc friction clutch
(matched with 6T46 gearbox)
The hydraulic system
The system pressure
The rated pressure		20Mpa
The highest pressure		25Mpa
Capacity		20ml/r
Rack section
Type: skid type (with sliding base)
Rig back stroke		460mm
Hole distance		260mm
Dimension (LWH)		355022003100mm
Rig weight (With power engine)		6300kg

Accessories
