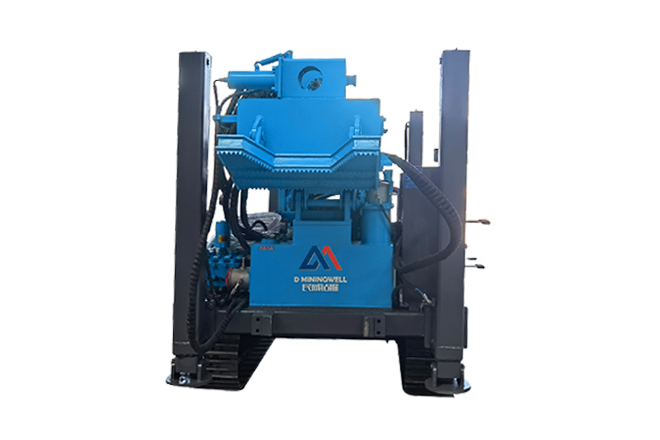

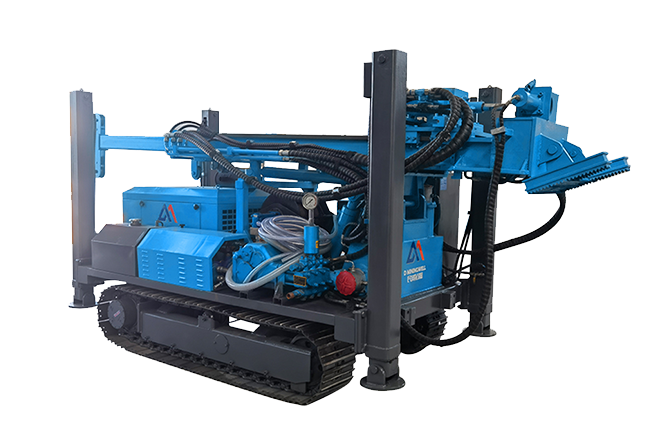

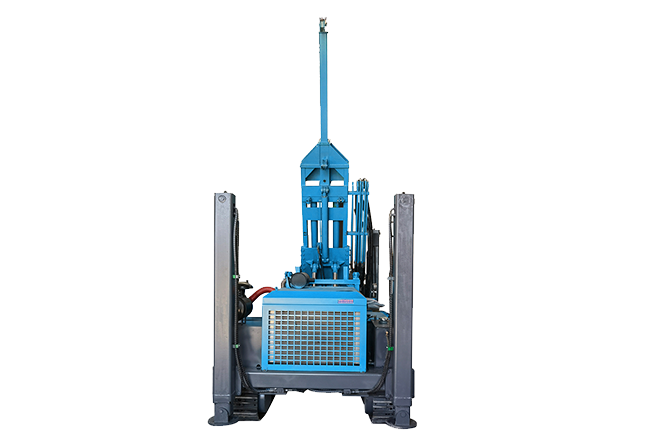

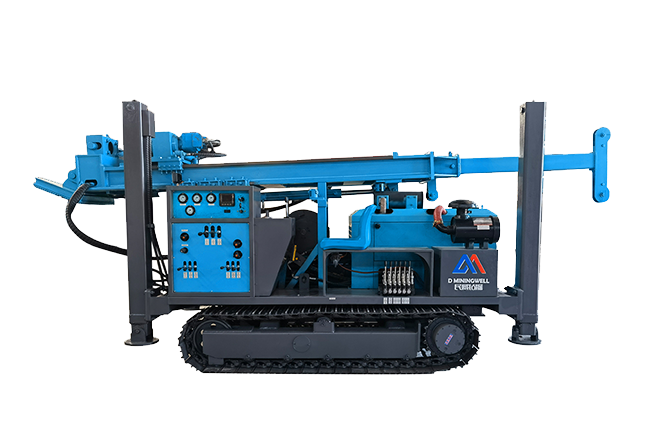

MWDL600 Full hydraulic wireline core drilling rig

Brand Name: D miningwell
Minimum Order Quantity: 1 set
Packaging Details: Standard Export Packing
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

Share:
Product Introduction
Features:

MWDL600 mechanical top drive drilling rig is a kind of drilling equipment independently developed by the company that can drill at 75-90°,integrates water drilling and gas drilling functions (national invention patent: ZL201510479602.4), using 5-speed manual hemp, more Wide range,sensitive and flexible conversion of positive energy, twice as much as hydraulic transmission, lower power drive, more efficient and energy-saving.The low-light problem of ring drilling rigs forbeads and pebble layers.
Show details
Technical data
Drilling depth (m) 600 Dimension 4600*2000*2350
Weight(T) 6.7 Drilling Diameter (mm) 60-110
Power(Kw) 96 Mud pump No. BW 90-3
Gradient (°) 30 Walking speed (Kw) 2.5
Drill Pipe (m) 1.5 Lifting force (T) 10
Rotation speed (rpm) 0-1200 Drilling angle(°) 45-90
