ZGYX420D split open-pit down-the-hole drill rig mining equipment
As the key equipment for modern mining and infrastructure construction, ZGYX-420/420-1/420D series split open pit drilling rigs have attracted much attention in the industry due to their excellent performance and flexible adaptability. This series of drilling rigs includes three models: ZGYX-420, ZGYX-420-1 and ZGYX-420D, which are widely used in perforating operations in metal mines, non-metal mines and large-scale earthwork projects.

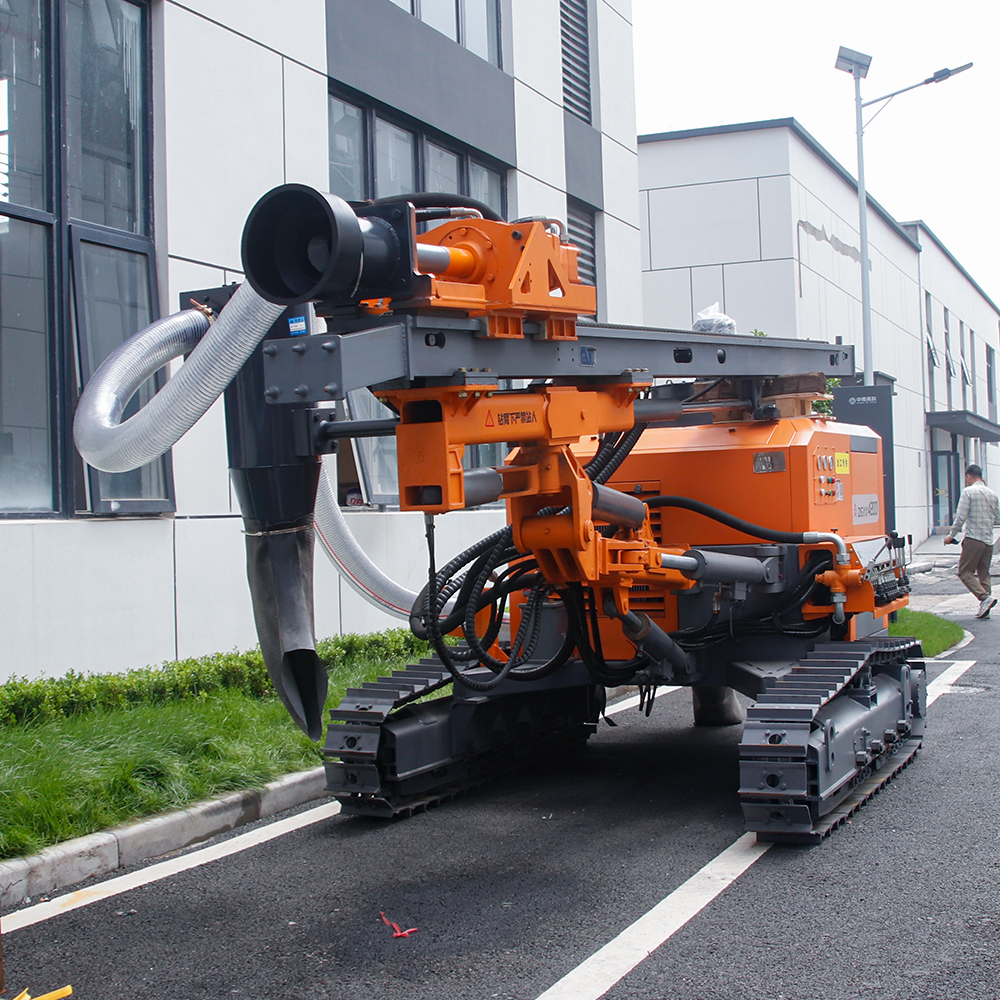

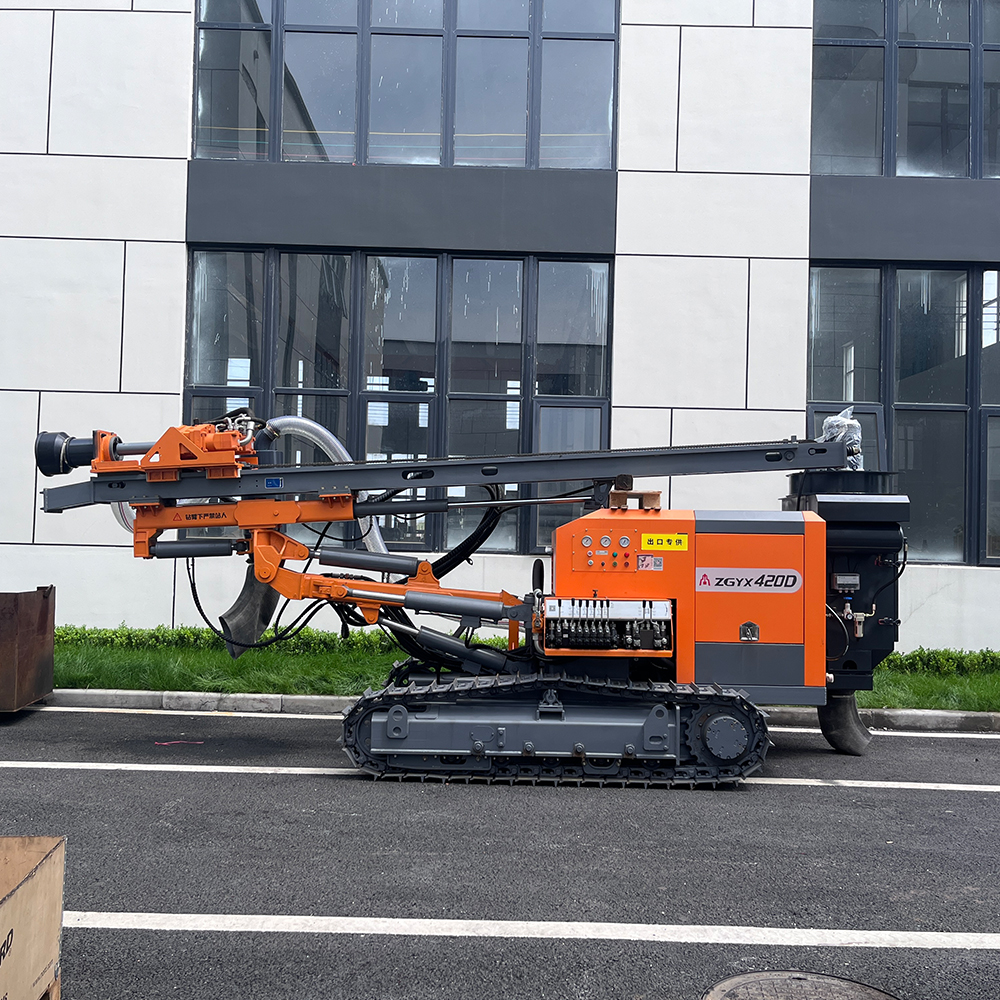

ZGYX-420D
Hole depth:30m
Drill Pipe Sizes:Φ76mm×3,000mm
Hole Dia:Φ110-138mm
ZGYX-420 crawler drilling rig redefines construction efficiency with excellent performance and refined design! Whether it is deep water well drilling or complex working conditions, it can conquer all kinds of engineering challenges with its strong strength:
In terms of the power system, this series of drilling rigs has strong configuration flexibility, and the ZGYX-420D model adopts an electric power head with a rated power of 55kW, which can not only satisfy the requirements of high-intensity drilling, but also meet the energy-saving and emission-reduction requirements of the construction of green mines.
Ultra-strong structure, no fear of working conditions: the reinforced structural design of the whole machine, casting a strong body, to ensure stable operation in harsh environments, to meet a variety of construction needs.
Double cycloid motors, double torque: Equipped with double cycloid motor rotary head, the torque output is greatly increased, and the range of rock drilling holes is wider, so it can easily cope with different geological conditions.
Convenient maintenance, high efficiency and durability: Innovative outer shell design makes maintenance operation easier, and improves the aesthetics of the equipment, taking into account both practicality and visual quality.
[Core Parameters]
Powerful: Equipped with 55kW motor (model ZGYX-420D), green energy saving, strong power and long-lasting output.
Drilling capacity: Maximum drilling depth is 30 metres, drilling diameter Φ110-Φ138mm, suitable for 4″/5″ impactor, efficiently penetrating the rock layer.

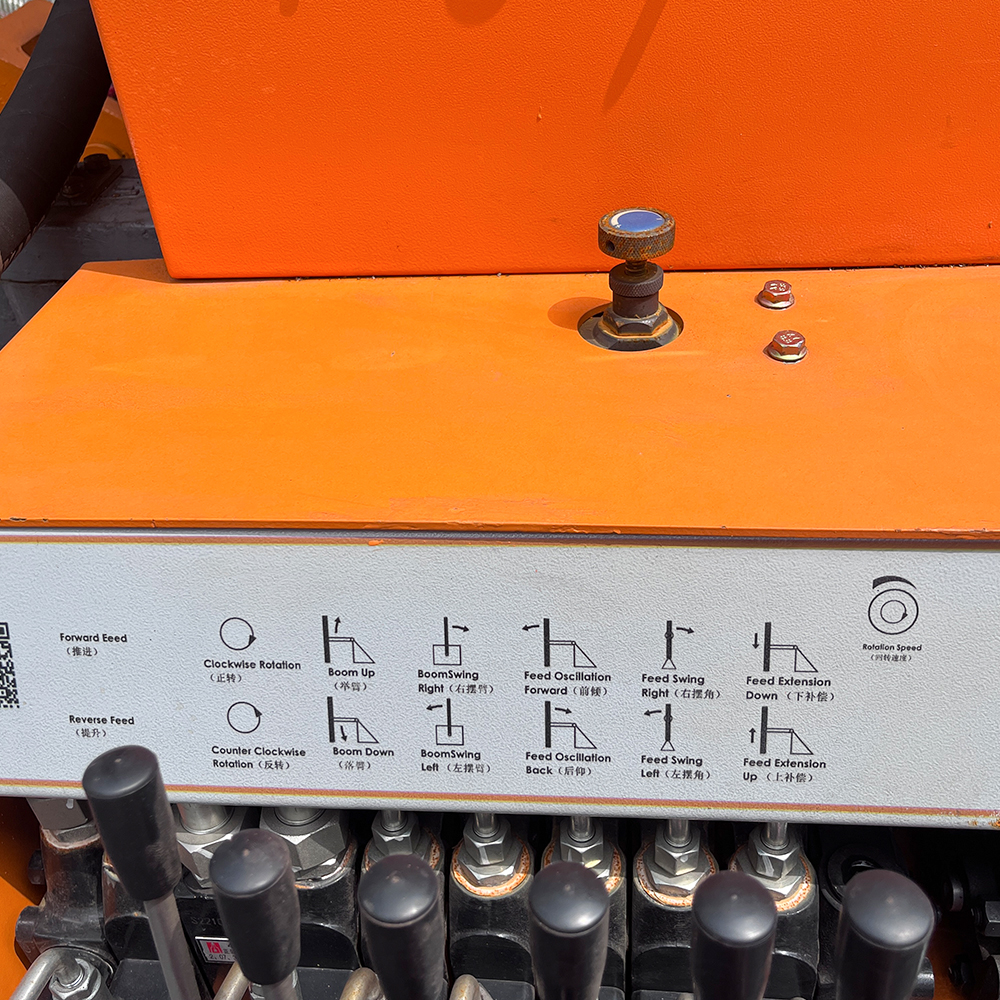

Precise control: 0-100rpm stepless speed regulation, maximum working torque of 4200N-m, accurately matching the construction rhythm. High-efficiency operation: 20kN propulsion force, 45kN lifting force, 3km/h travelling speed, 25° climbing capacity, complex terrain is also like walking on the ground.
Technical Advantages]
Intelligent Adaptation: Working wind pressure 0.7-2.5MPa, air consumption 8-20m³/min, flexible adjustment, energy saving and consumption reduction.
Stable propulsion: cylinder chain double propulsion system ensures drilling stability and prolongs the service life of the equipment.
Flexible transport: compact transport size (5100×2260×2500mm), convenient transfer, reduce transport costs.

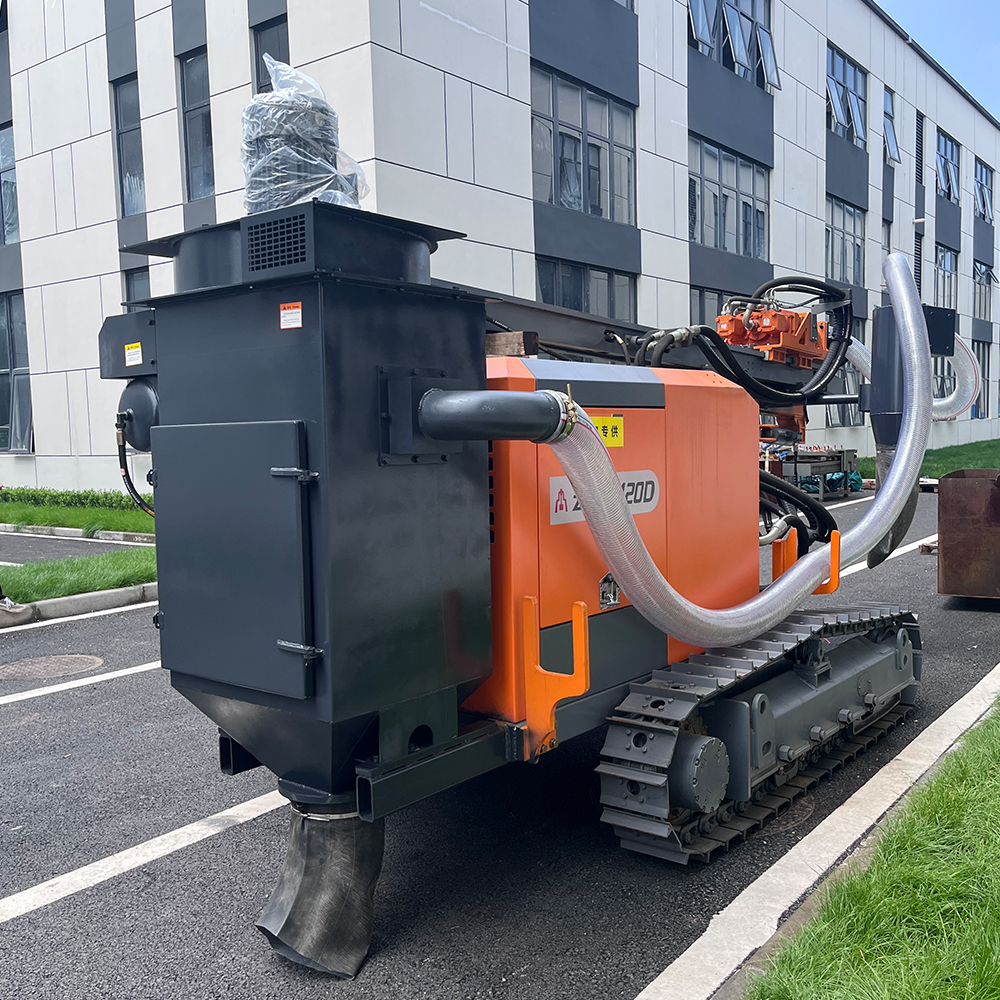

Environmental upgrading: optional dry dust collector reduces dust pollution and creates a green construction environment.
Application Scenario] It is suitable for mining, water conservancy project, infrastructure construction, rock drilling, etc. It helps to speed up the project with reliable performance, reduce construction cost and improve project efficiency!
As the high-end equipment for open-pit perforating operation, ZGYX-420/420-1/420D series drilling rigs have become the preferred equipment for mining enterprises and engineering contractors due to its high efficiency, low energy consumption and intelligent features. With the continuous development of intelligent mining technology, this series of drilling rigs will also achieve a higher level of automated operation through the integration of remote control and data interaction technology, providing solid equipment support for the process of mining modernisation.
| Rig Model |
Power Rated |
|
ZGYX-420D |
Electric Motor 55kW |
| Hole Depth | 30m |
| Drill Pipe Sizes | Φ76mm×3,000mm |
| Hole Dia | Φ110-138mm |
| Hammer | 4″/5″ |
| Rotation Torque(Max) | 2,500N.m |
| Rotation Speed | 0-100 rpm |
| Working Pressure | 0.7-2.5 Mpa |
| FA.D | 8-20m²/min |
| Feed Force | 20kN |
| Pull Up Force | 45kN |
| Feed Type | Chain/Cylinder |
| Tramming Speed(Max.) | 3km/h |
| Gradient | 25° |
| Total Weight | 5,200kg/5,500kg |
| (L×W×H)
Transportation Dimensions |
5,100×2,260×2,500mm |
| Dry Dust Collector | Option |
