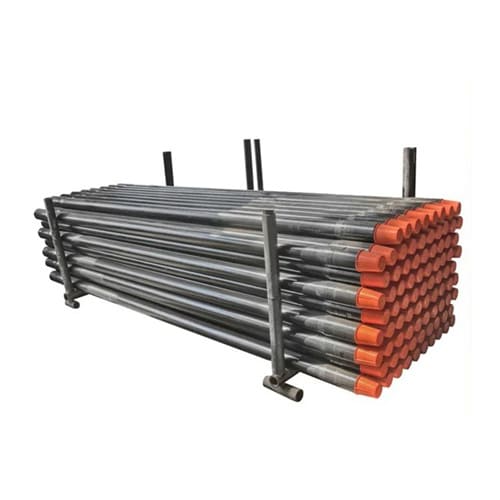

DTH Drilling Tools and DTH Drill Pipe 89mm

D Miningwell equips all rock drilling equipment with high-quality friction welded drill rods. The threads, rod bodies and welded joints of the drill pipes have been rigorously processed.

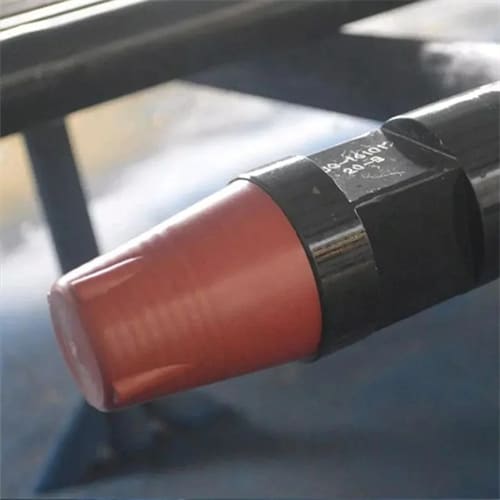

Thread: We can produce all threads that comply with API international standards, and guarantee precision processing. The thread material is 35CrMo, and it has undergone high-quality heat treatment and nitriding treatment to ensure the hardness and service life of the thread.

Rod body: We can supply drill rods with diameters of 42mm-203mm, and the maximum length can be made up to 12 meters. We choose DZ40, R780, G105, S135 and other rod materials according to the needs of different customers and the use scenarios of drill rods, and the wall thickness can be 4.5mm-12mm.

Welding joint: Each drill pipe has undergone a pier thickening process, and the maximum inner/outer pier thickness can be up to 24mm, which increases the friction welding area and ensures the stability of the welding joint.

Rated 4.6/5 based on 286 customer reviews
Share:
Content

Advantages and scope of application of friction welding drill pipe

D miningwell is a professional enterprise engaged in the research, production and sales of drilling tools. Today, I will introduce the production advantages and application scope of friction welded drill pipes.
The combination of drill pipe requires welding, and there are various welding methods. Among them, the friction welding drill pipe is very popular among customers in the market. The friction welding process is cold working of the pipe body, which ensures the uniform thickness of the pipe body, the accuracy of the drill pipe, and also enhances the friction welding drill pipe. hardness and toughness.
Friction-welded drill pipe is mainly suitable for drill bits with threaded drills. It has the characteristics of good rotation and low resistance during rotary installation, and it is also relatively simple in the operation process, which is loved by people.
Friction welding drill pipe can be welded with different materials, which improves the quality of the drill pipe, which is different from other welding methods of drill pipe. The application of friction welding technology enhances the flexibility of the friction welded drill pipe and prolongs the service life of the drill pipe. According to the heat treatment of the inside of the drill pipe, the thickness of the weld is thickened and thickened, and the internal strength of the drill pipe is also greatly enhanced.

Model Diameter (mm) Thickness(mm) Thickening type Length(mm) Thread Board shank slot
1 76 5-8mm IU 1000/ 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 2 3/8 API REG Double buckle Single buckle
2 89 6-9.35mm IU 1000/ 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 2 3/8 IF Double buckle Single buckle
3 102 7-8.38mm IU/IEU 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 2 7/8 IF 3 1/2 REG Double buckle Single buckle
4 114 6-9.35mm IU 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 2 7/8 IF 3 1/2 IF/REG Double buckle Single buckle
5 127 9mm IU 1500/ 2000/ 2500/ 3000/ 4000/ 5000/ 6000 3 1/2 IF Double buckle Single buckle
6 140 8-12mm IU 3000/ 4500/ 5000/ 6000 4 1/2 REG or 4FH Double buckle Single buckle
