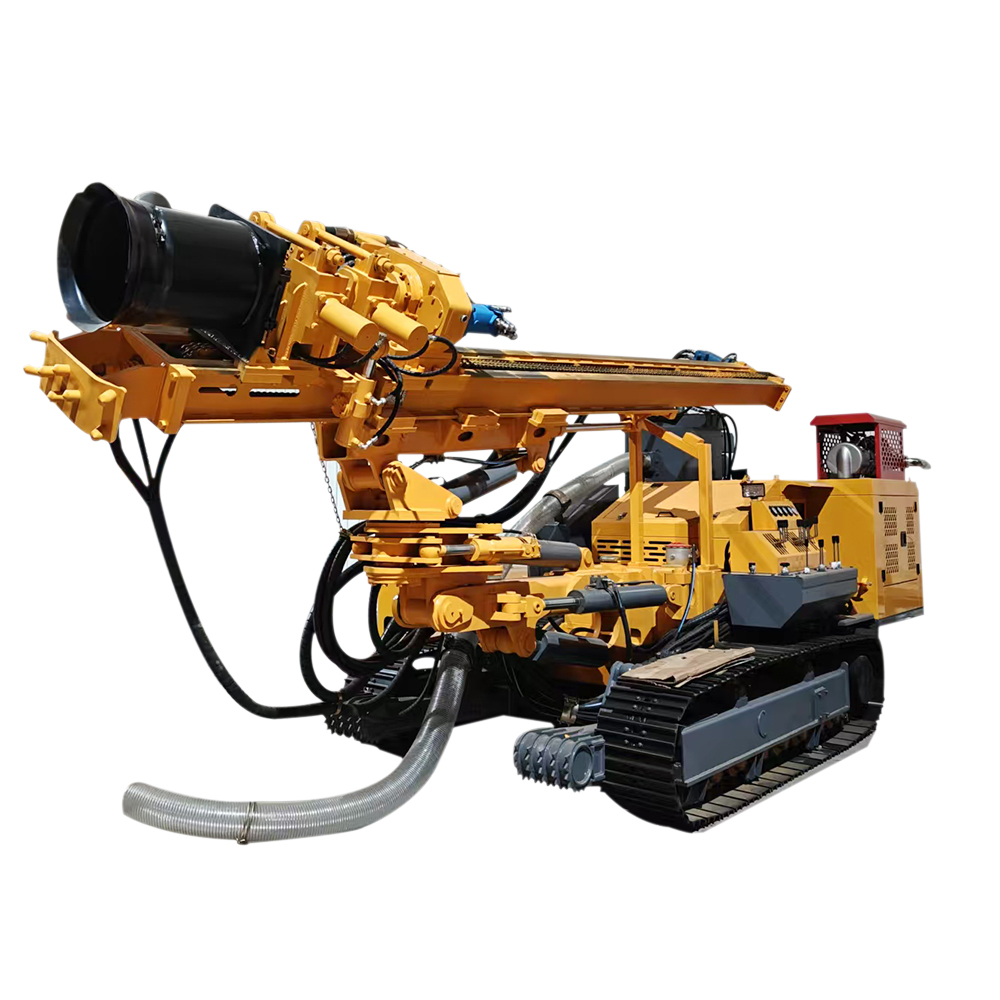

D Miningwell 580 emolition Rig Blasting Drilling Rig
Operating capacity: recommended calibre 90-160mm, drill pipe length 3m, tower stroke 3.6m, feed efficiency 30-60m/h
● Power performance: diesel engine power 75KW, slewing speed 35-75, slewing torque 4500-6000Nm
● Mobile performance: travelling speed 2.5km/h, climbing ability 30°.
● Machine parameters: working air pressure 1.7-3.3Mpa, machine quality 7.2T, external dimensions 6400*2350*2600mm
Power Unit
Hydraulic oil pump, high pressure resistant, large displacement, high quality, long life
75KW Yuchai engine, powerful and easy to maintain
Two-stage air filter device ensures that the engine inhales clean air.
Integrated oil and water radiator enables the engine and hydraulic system to work normally under high temperature environment.

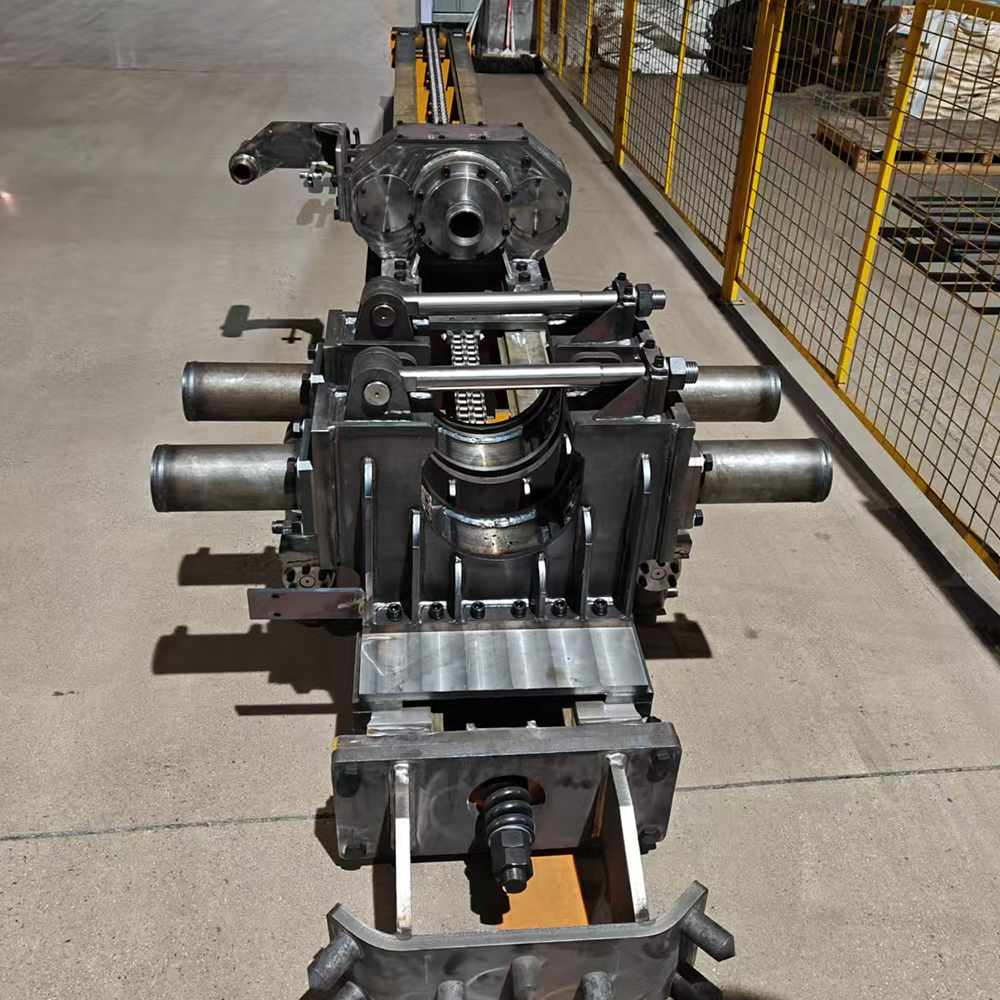

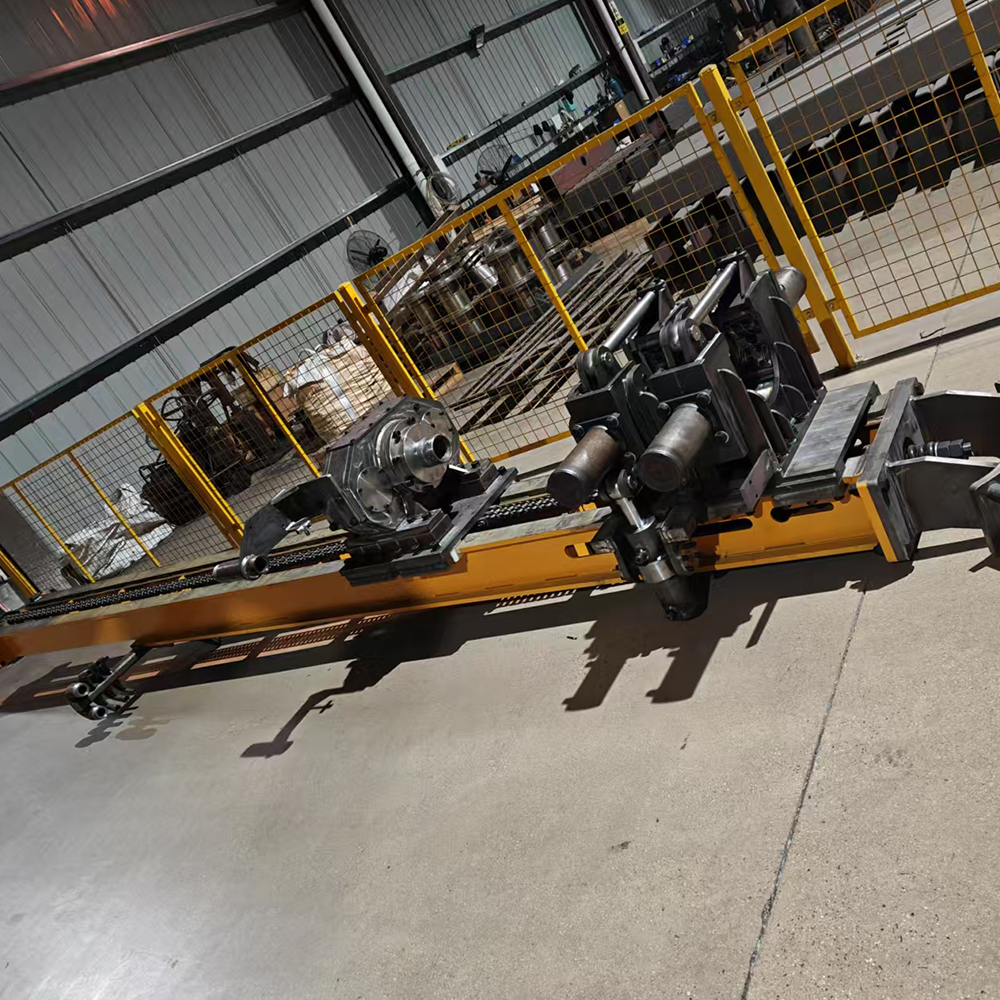

Maintenance-free propulsion mechanism
Hydraulic-mechanical double locking not only ensures stable output of high torque from the hydraulic motor, but also greatly improves the service life compared to worm gears. Mechanical locking and hydraulic internal leakage prevent slipping. The combination of the two brings its own advantages.
The technology is updated and it is a product that does not require routine refuelling and maintenance.

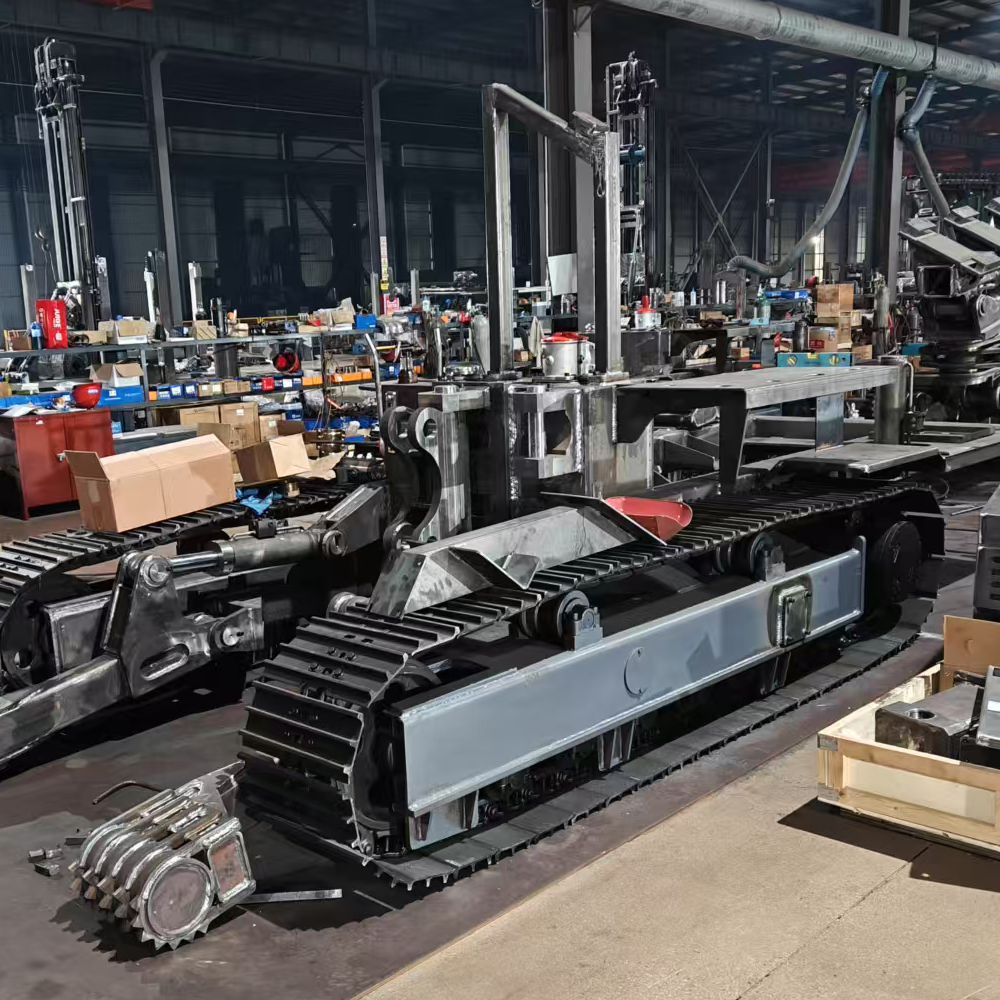

Maintenance-free chassis
Travelling motor, strong climbing ability, can tow air compressor, two-speed travelling system, fast travelling to save shift time
Console
Independent operating system, wider field of vision, safer operation, different working angles when walking and working, suitable for different conditions of use on the construction site, safer and more humane design.
Centralised control panel facilitates various operation control of the drilling rig
Rapid propulsion and lifting operation reduces the auxiliary time and improves the working efficiency
The propulsion force is adjustable and can be adjusted at any time according to the drilling needs.
FD series environmentally friendly hydraulic dry dust collector
The FD series hydraulic dry dust collector is a matching product designed for the Fidelity series of open pit downhole drilling rigs. It prolongs the service life of the drilling rig, improves the health of the operator, reduces dust pollution and has good environmental protection effect.
FD series dust collector is a kind of pulse dust collector with good dust collection, large air volume, stable performance, easy operation, good dust removal effect, long cartridge life and small maintenance workload.
