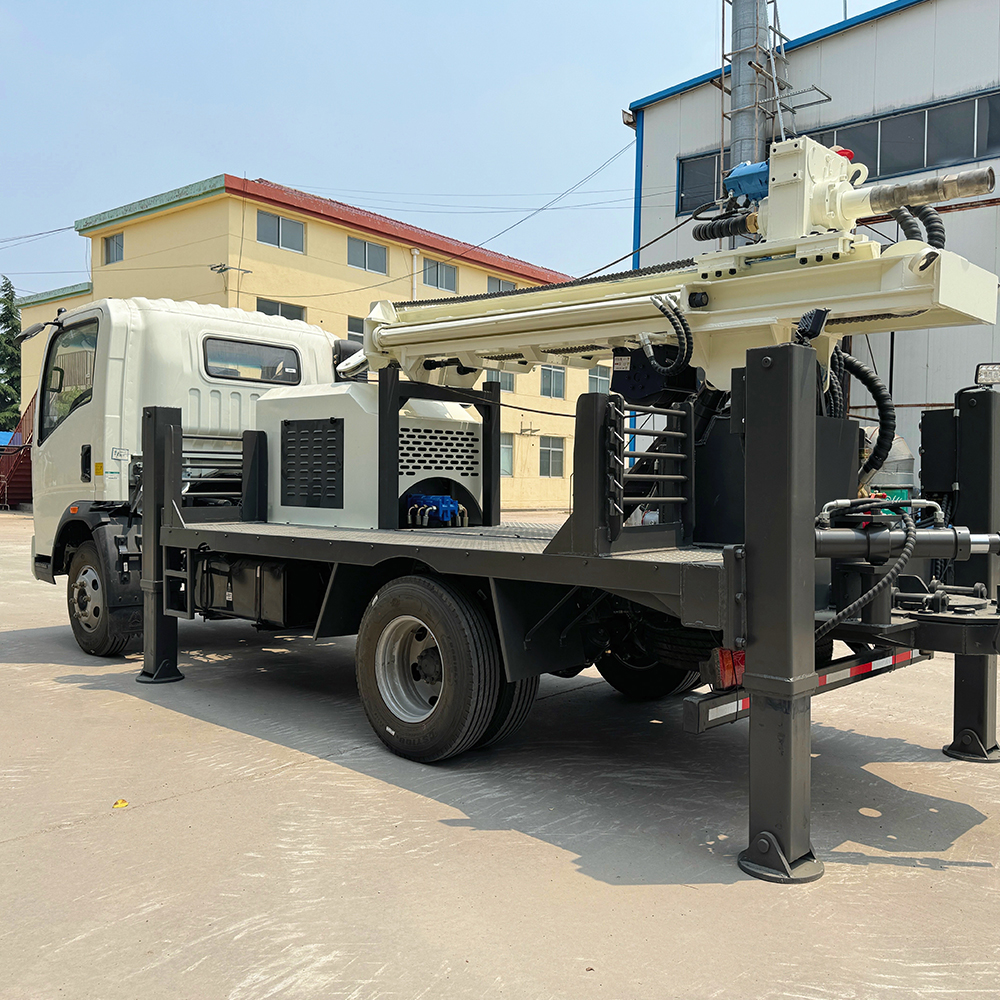

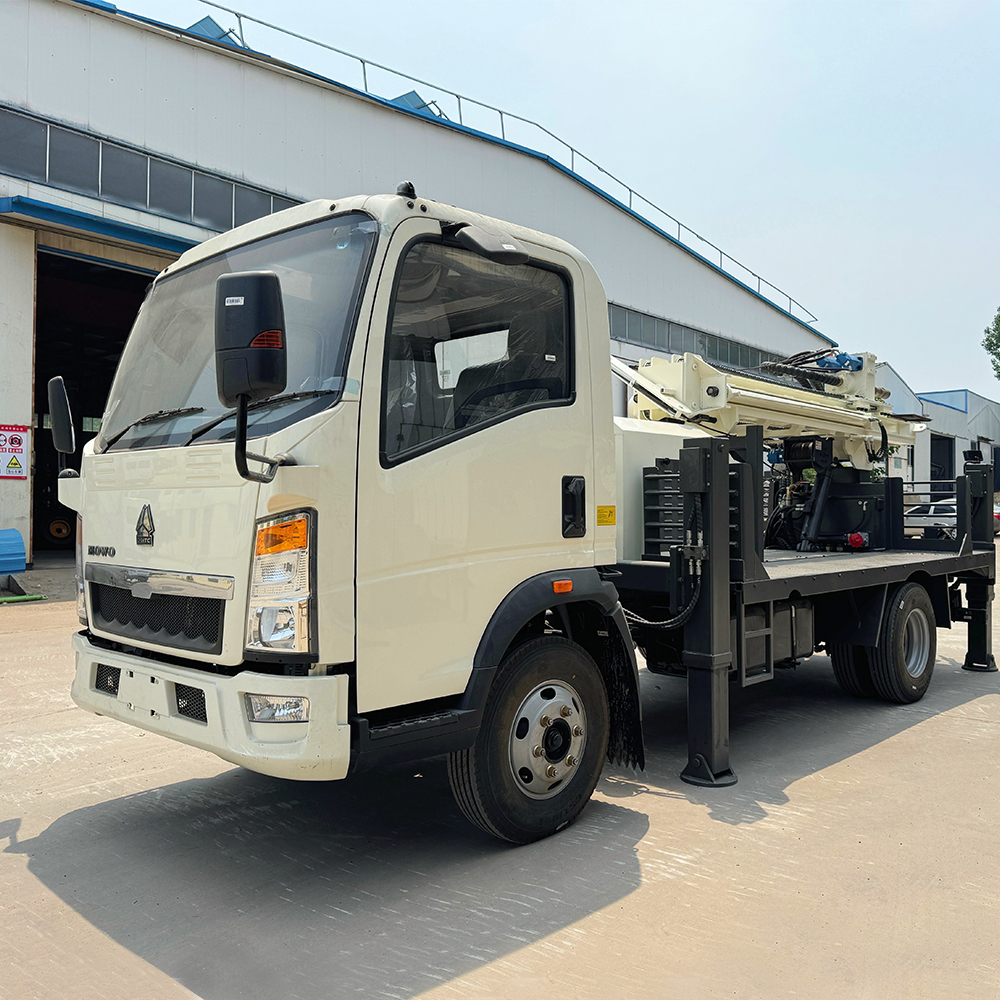

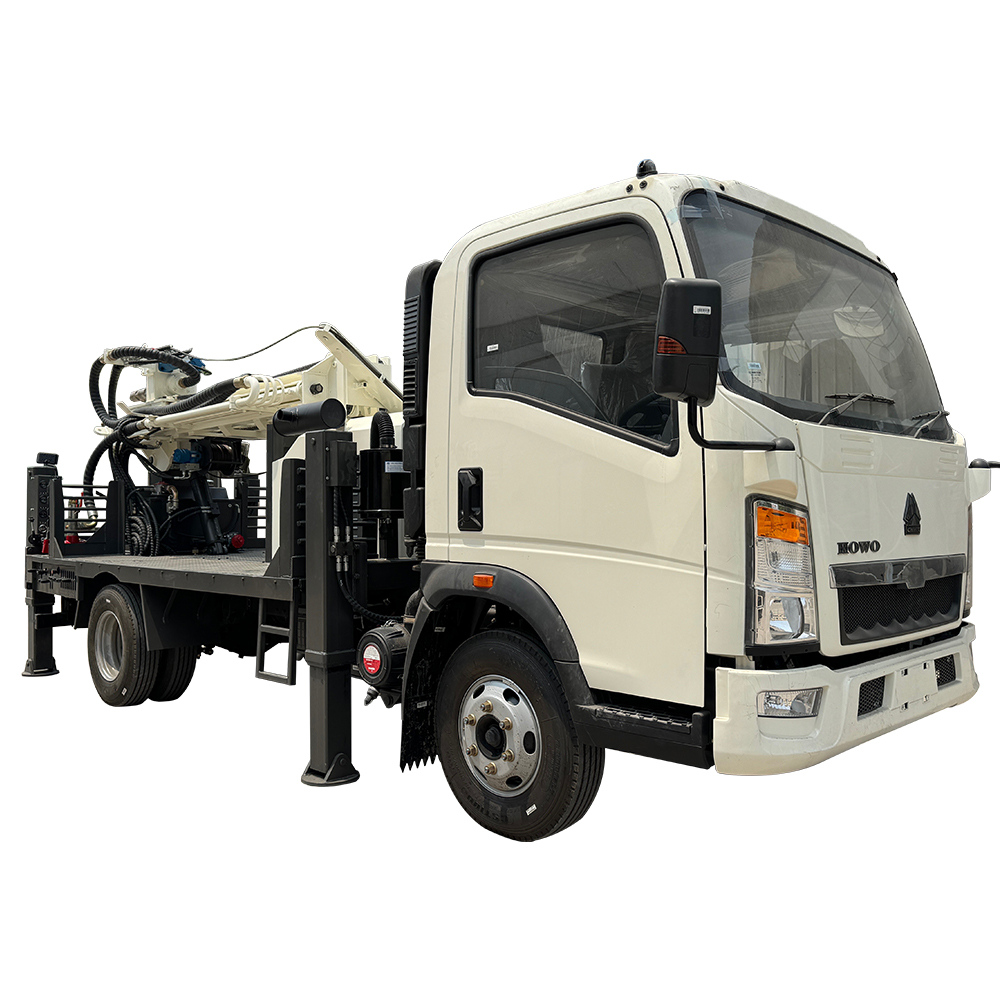

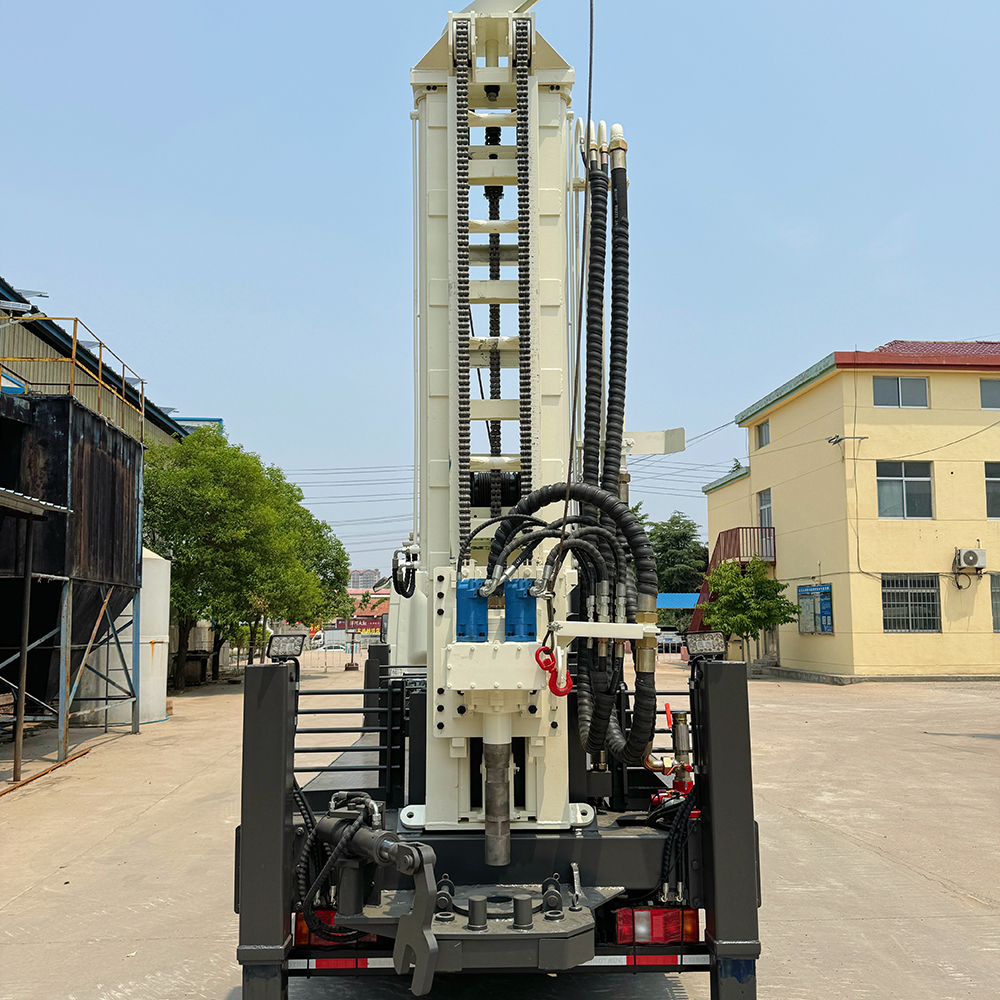

D Miningwell 200 Truck Mounted Water Well Drilling Rig for Water Well Drilling
howo 4×2 5 tonne light truck
YC4102 Yuchai or Yunnei 116HP Euro2
1880 Single cab, double seats with locking structure seat belts, Mp3+USD
Entertainment system, manual split lift
2.4 tonnes*1 drum brake
WLY transmission, 6 forward, 1 reverse gears
4.2t* single drive axle, speed ratio, 5.83
7.50R16 steel wire tyres, 6+1 spare wheel
120L fuel tank
Domestic Steering with hydraulic power assist, left-hand drive
Leaf spring suspension, multi-leaf spring steel plate
Air pump brake, exhaust brake, parking brake
Colours on request
| The weight（T）
|
9.5 |
Equipped capacitor（kw）
|
Yuchai 58KW |
|
Drill pipe diameter（mm）
|
Φ76 Φ89 |
Drill pipe length（m）
|
1.5/2.0/3.0 |
|
The hole diameter（mm）
|
140-254 |
Drilling depth（m）
|
200 |
|
One-time advance length（m）
|
3.6 |
The penetration efficiency（m/h） |
10-35 |
|
Swing speed（rpm）
|
45-70 |
Swing torque（N.m）
|
3500-4800 |
|
Rig lifting force（T）
|
13 |
Hoisting force of winch（T）
|
1 |
|
Rapid rise speed（m/min）
|
20 |
Fast feeding speed（m/min）
|
40 |
|
Using air pressure（MPA）
|
1.7-2.5 |
Air consumption（m³/min）
|
17-31 |
|
Walking speed（km/h）
|
0-80 |
Climbing angles （Max.）
|
25 |
|
Width of loading（m）
|
/ |
Dimension（mm）
|
6500×2150×2450 |
Technical Analysis of Truck-mounted Drilling Rigs: Efficient and Reliable All-round Construction Tools
In the field of modern engineering construction, efficient and stable equipment is the key to ensure the progress and quality of projects. Today, we will deeply analyse a vehicle-mounted drilling rig with excellent performance, and reveal its core advantages and technical highlights in various construction scenarios through its detailed configuration parameters.
- Model and Basic Configuration: Solid Foundation, Carrying Heavy Duty
This truck-mounted drilling rig is equipped with HOWO 4X2 5-tonne light truck chassis, model number ZZ1047D3414C145, which is specially designed for complex working conditions. The chassis adopts 4X2 drive mode, taking into account the power output and flexibility, and can easily cope with the challenges of construction sites, mines and other unpaved roads. The body size is 5995x2150x2450mm, which is in line with the standard container transport dimensions, facilitating remote transfer and rapid deployment. In addition, the body adopts bottom 3mm, side 1.5mm corrugated side plate structure, high-strength steel to ensure durability and deformation resistance in harsh environments.
Second, power system: strong heart, efficient output
The core power comes from Yuchai YC4102 or Yunnei engine, with an output of 116 hp, which meets the Euro II emission standard. This engine is known for its low fuel consumption and high torque, which can not only meet the power demand of continuous operation, but also adapt to the starting and running of different altitude and temperature environments. Matching with WLY 6-speed transmission (6 forward + 1 reverse), it has smooth gear shift and high transmission efficiency, which can accurately match the power output and improve the construction efficiency, whether it is for climbing or flat ground operation.
Manoeuvring and Safety: Precise Control, Multiple Guarantees
The cab design takes both practicality and safety into consideration. 1880mm single cab is equipped with double seats and locking structure safety belts to ensure the stability of the driver and operator in bumpy environments, while the Mp3+USB entertainment system and the manual split lift function provide comfort and convenience for long-time operation. In terms of control, the domestic hydraulic power steering greatly reduces the steering resistance, the left rudder driving layout meets the mainstream operating habits, with the air pump brake, exhaust brake and parking brake triple braking system, to ensure that the vehicle in any state of safety control. 4.2 tonne single-driver axle with 5.83 speed ratio, further optimising the traction and stability, to adapt to the needs of heavy-duty operations.
Suspension and load-bearing: stable as a mountain, flexible response
plate spring suspension system adopts multi-plate steel design, like a tough guardian, effectively absorbing every impact on the road surface, significantly improving the smoothness of driving. 3400mm wheelbase not only ensures the flexibility of the vehicle when turning, as light and agile as a dancer, but also greatly enhances the overall structural load-bearing capacity, so that the truck-mounted rig is still stable as a mountain when carrying heavy loads. The tyres are 7.50R16 The tyres are 7.50R16 steel wire tyres (6+1 spare wheel), with strong abrasion resistance and excellent grip, which can maintain good passability on gravel and muddy roads. 120L large-capacity fuel tank provides sufficient range for long-time operation, reduces refueling frequency and improves the continuity of construction.
- Electrical and customisation: intelligent upgrade, flexible adaptation
The electrical system is equipped with 75AH batteries*2 (24V negative-pole laptop), which guarantees stable power supply for equipment start-up and auxiliary systems. Users can choose the body colour according to their needs, and special customised colours are available to meet the brand image or personalised needs. In addition, the drilling rig reserves abundant interfaces and expansion space, which can be adapted to different drilling modules (such as down hole drilling, rotary drilling, etc.), realising multi-purpose use of one vehicle and significantly reducing the investment cost of the equipment.
Sixth, efficient delivery: rapid production, shorten the cycle
In terms of delivery efficiency, this truck-mounted drilling rig promises a rapid production cycle of 40 working days, and tracks the whole process from order to delivery to ensure that customers can put into construction in time. Standardised design and modular production not only ensure quality stability, but also shorten the waiting time.
