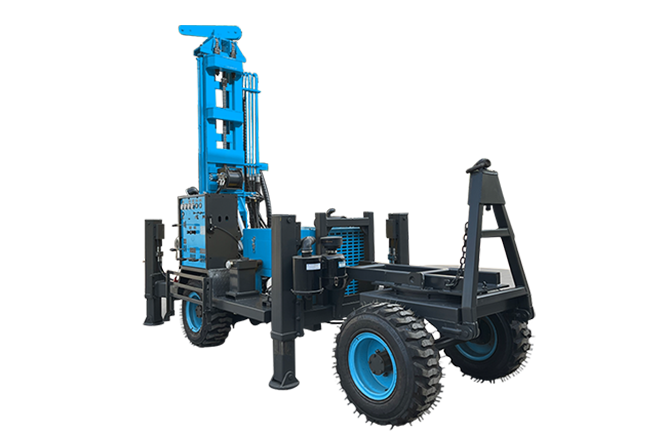

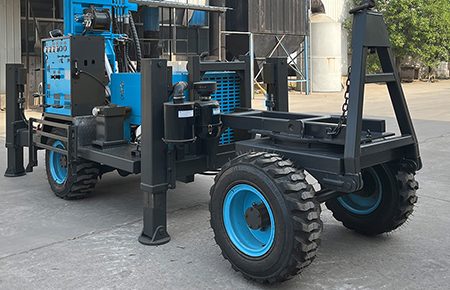

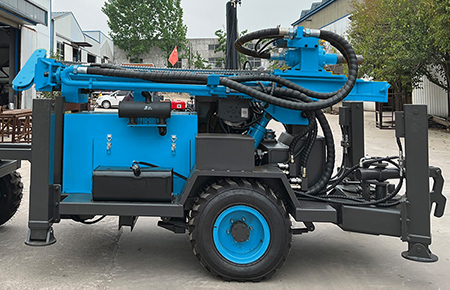

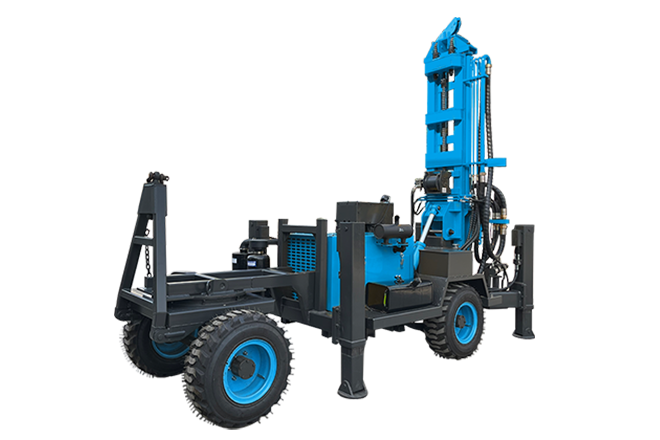

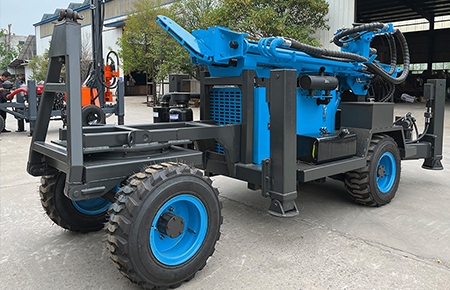

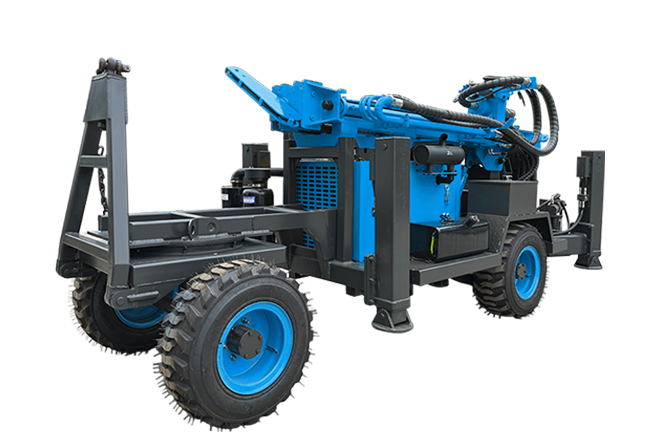

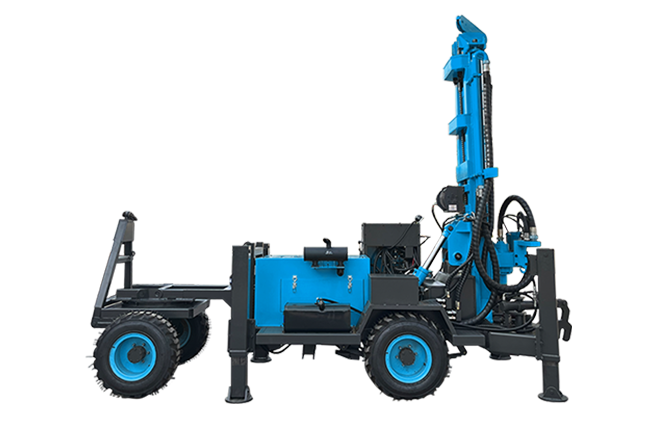

Tractor mounted water well drilling rig MWL200A

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

Tractor mounted water well drilling rig MWL200A is suitable for industrial and civil drilling and geothermal drilling. It has the advantages of large drilling diameter, deep drilling depth, fast footage, and flexibility.
Share:
Product Introduction
Application:
1. Civil engineering drilling
2. Geothermal drilling
3. Water well drilling

Features:
1. Equipped with a 65KW Yuchai brand turbocharged engine with strong power;
2. Patented design compound boom, double cylinder lifting.
3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder.
4. It has high flexibility, is sturdy and durable, has little damage to the road surface, and is easy to move.
5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
6. The whole machine uses a three-wheeled tractor with high horsepower and low torque, which can cope with more complex road conditions and is easy to move.
7. Dual systems can be added: Air power system with air compressor /Mud pump system with mud pump.
Show details
Technical data
MWL200 water well drilling rig
The weight(T) 4.7 Drill pipe diameter(mm) Φ76 Φ89
The hole diameter(mm) 140-254 Drill pipe length(m) 1.5m 2.0m 3.0m
Drilling depth(m) 200 Rig lifting force(T) 13
One-time advance length(m) 3.3 Rapid rise speed(m/min) 20
Walking speed(km/h) 20-40 Fast feeding speed(m/min) 40
Climbing angles(Max.) 30 Swing speed(rpm) 45-65
Equipped capacitor(kw) 65 Hoisting force of winch(T) ---
Using air pressure(MPA) 17-2.5 Swing torque(N.m) 3400-4700
Air consumption(m³/min) 17-31 Dimension(mm) 4325*1600*2450
The penetration efficiency(m/h) 10-35 High leg stroke(m) 1.4
The engine brand Quanchai engine (Replaceable Cummins Engine)
