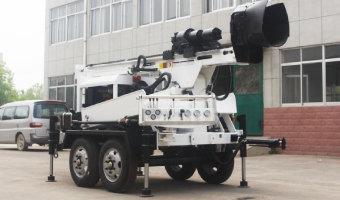

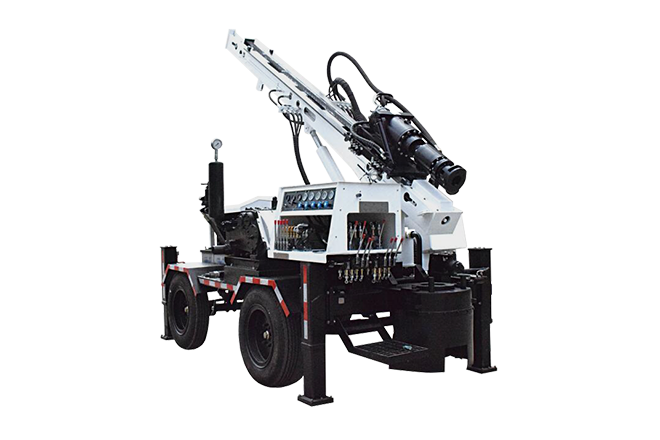

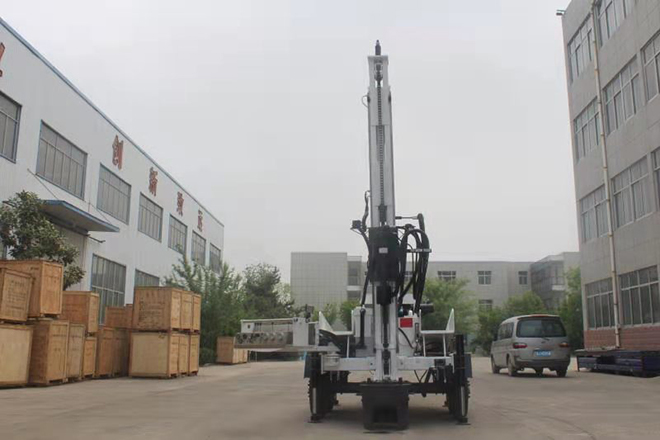

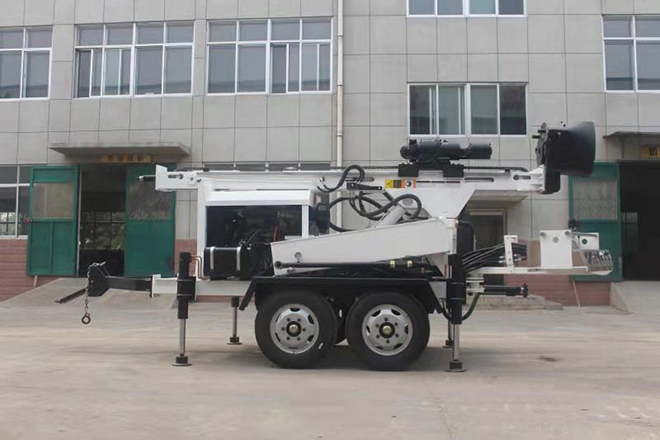

Tralier type water well drilling rig MWL 200

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

MWL 200 trailer type water well drilling rig is a moveable, efficient and multipurpose rock drilling equipment. It has rotary drilling mode and percussive drilling mode with high-pressure air, foam and mud according to different geological conditions.
Share:
Product Introduction
MWL200 trailer--mounted drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells o other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.
Show details
Technical data
Technical Parameters
Bore diameter(mm) 115-300
Bore depth(m) 260
For rock(F) 60-20
Air pressure(m3/min) 1.05-3.0
Air comsumption(m3/min) 16-30
Once promotion(mm) 2000
Maximum height from the ground (mm) 320
Roation speed(r/min) 0-100
Roation torque(NM) 3900
Lifting power(T) 6.5
Dimension (L*W*H)(mm) 5425*2250*2470
Host power(Kw) 56/87
Weight(Kg) 6000
Mud pump BW450/5
Pump speed (L/min) 172-450
Pressure(Mpa) 2.0-5.0
