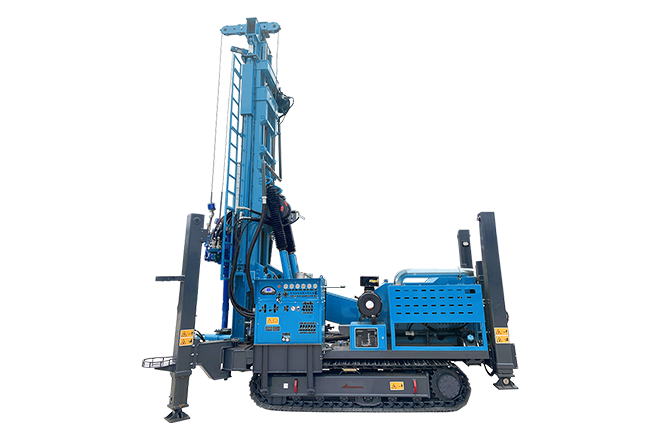

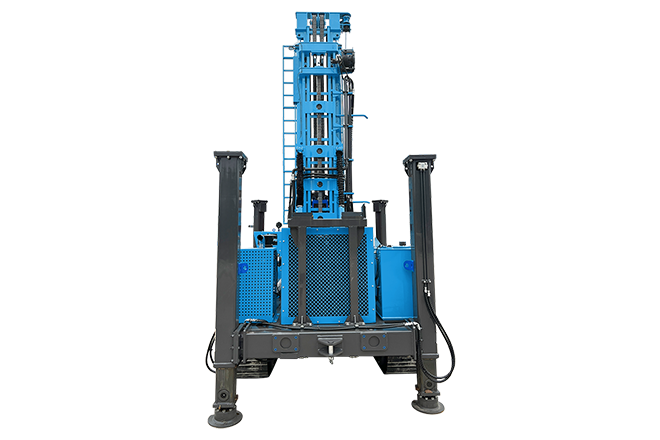

Crawler water well drilling rig MW280BIX

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

The DMiningwell MW series crawler-type deep well drilling rigs are specialized energy extraction equipment independently developed to meet the needs of the shallow resource extraction industry. They are mainly applied to various deep hole drilling operations such as shallow oil and gas wells, geothermal wells, mine wells, industrial and agricultural water wells. This drilling rig can adopt multiple construction techniques such as air DTH hammer drilling and mud drilling, and it has the advantages of fast drilling speed and good hole-forming effect.
Share:
Product Introduction
DMiningwell MW series crawler water well drilling rigs Product introduction:
1.Comfortable and Convenient Operating System
  • The integrated console features a compact structure and is easy to operate.
  • The dual-pump confluence rotation system controlled by a single lever offers a comfortable operating experience.
  • The hoisting-priority operating system reduces the time for auxiliary operations.
2.Mature and Reliable Top Drive Power Head
  • With over 20 years of proven technology in developing the power head, it is reliable in use and has a long service life.
  • The patented double-isolation rotary joint meets the requirements of air and mud drilling processes.
3.Large-amplitude Telescopic Drill Mast
  • The large-amplitude drill mast structure ensures higher construction stability.
  • The adjustable-gap telescopic drill mast meets the needs of large-stroke casing-following construction and has a short transportation size.
4.Value-added Upgrade Space
  • It can be optionally equipped with various configurations such as generators, centrifugal pumps, and foam pumps to meet users' value-added requirements.
5.Safety-conscious and Thoughtful Detail Designs
  • The Desert Storm air filter system maximally ensures the powerful output of the engine.
  • Safety locking of the mast-erecting cylinder, needling treatment of the air circuit manifold, etc., guarantee personal safety during the construction process.
  • Each electrical component is equipped with independent circuit-breaking protection, facilitating maintenance.
6.Powerful and Efficient Hydraulic System
  • Based on the working condition matching of "torque, rotational speed, lifting force, and lifting speed", the flow and pressure of the main pump are precisely configured for high efficiency and energy saving.
  • High-quality hydraulic components from leading domestic and foreign brands are carefully selected to provide powerful driving force.
Show details

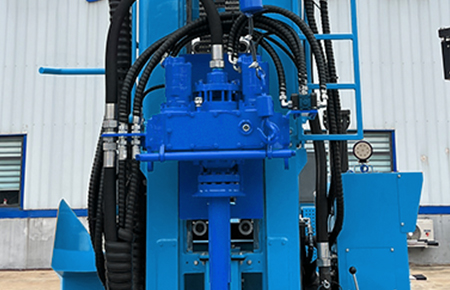

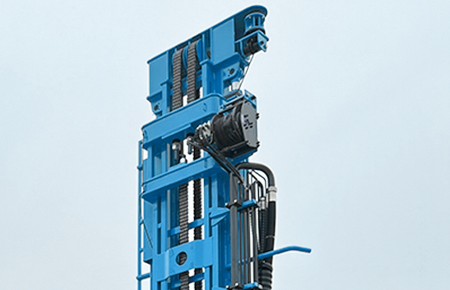

Hydraulic Motor
Opreation Floor

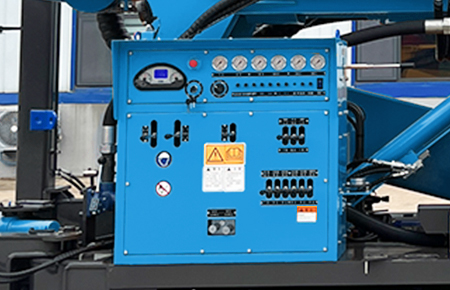

Control Valve
Technical data
MW280BIX Main technical parameters of water well drilling rig
Drilling Capacity
                 Drilling Depth
m 500(φ89)
Maximum Passing Diameter mm φ400
Feeding System Maximum Lifting Force kN 280
Maximum Feeding Force kN 100
                Fast Lifting Speed
m/min 27
Fast Lowering Speed m/min 48
                         Stroke
mm 7000
Power Head
                Maximum Torque
Nm 9200/4600
Maximum Rotational Speed r/min 95/190
            Spindle Bore Diameter
mm φ55
Engine
                          Model
/ YCA05K175-T480
Rated Power kW 129
Rated Rotational Speed r/min 2200
Tool Hoist Lifting Force kN 15
Main Hoist (Optional) Lifting Force kN 30
Manifold Bore Diameter mm φ51
Maximum Pressure MPa
Chassis Maximum Travel Speed km/h 2.9
Maximum Gradient 21
Maximum Ground Clearance of Crawler (Crawler Ground Clearance) mm 1300
Maximum Inner Width of Front Outrigger mm 2900
Maximum Inner Width of Rear Outrigger mm 2700
Working Dimensions mm 5100×3200×9800
Transportation Dimensions mm 6100×2100×2690
Overall Weight t 12
