Position : Home > Products > Water well drilling rig > Mud-pump
water well drilling rig mud pump
water well drilling rig mud pump
water well drilling rig mud pump
water well drilling rig mud pump
water well drilling rig mud pump

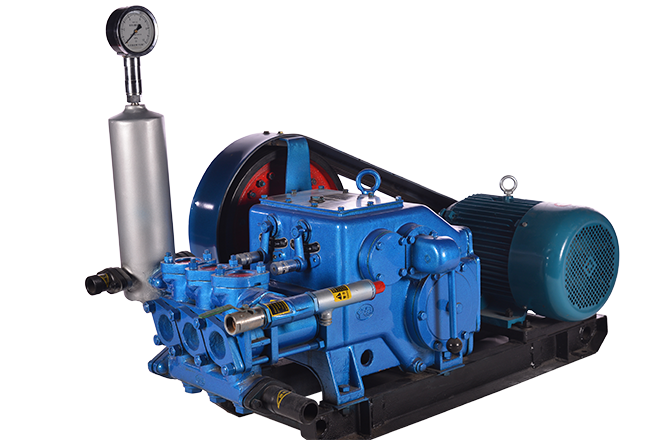

Mud pump BW160

BW160 Mud Pump is widely used in railway, hydraulic engineering, metallurgical engineering, building construction, geological exploration, engineering exploration (within 1000 meters of the drilling depth)etc.
Share:
Inquiry Now
Send Email
Product Introduction
Show details
Technical data
Application
Related cases
Product Introduction

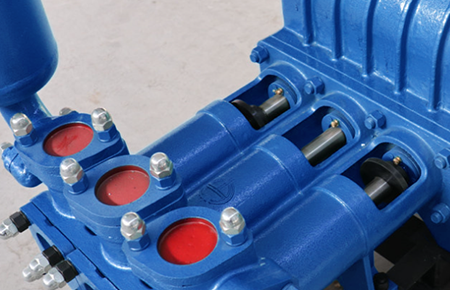

BW mud pump is a horizontal three cylinder reciprocating single acting piston pump, the pump with two cylinder and four file variable. The big cylinder for supporting the 1000 meters of large diameter drill. The small cylinder for supporting the1500 meters of small diameter drill. Mainly used for the core drilling mud pump, can also be used for other aspects of mine grouting, drainage and long distance water supply and other purposes.
Show details
Technical data
Technical Parameters
Type BW160-10
Horizontal three cylinder reciprocating
single acting piston pump
Cylinder dia.(mm) 70
Stroke(mm) 70
Pump Speed(times/min) 200 132 83 55
Flow(L/min) 160 107 67 44
Pressure(Mpa) 2.5 4 6.5 10
Power(Kw) 11
Dimension(mm) 1450*745*970
Weight(kg) 430
