MWYX423 Integrated DTH Drill Rig

Brand Name: D miningwell
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

MWXY series drilling rigs have two products, namely MWYX423 and MWYX453, which are aimed at 90-115mm aperture and 115-138mm aperture respectively. This series of products is an all-in-one DTH drilling rig with very high cost performance.
Product Introduction
MWYX series products have the characteristics of high efficiency, environmental protection, energy saving and safety.

Automatic drill change and powerful off-road performance reduce rig assist time. The large displacement high pressure screw air compressor makes the slag discharge completely, which is more conducive to the substantial increase of the rock drilling speed and reduces the consumption of the drilling rig. The powerful propulsion and rotation design solves the problem of sticking in complex rock formations on the basis of satisfying high-speed rock drilling.

The standard two-stage dry dust collector and optional wet dust collector of the drilling rig not only meet the environmental protection needs of mines and operators, but also greatly reduce the pollution of dust to the equipment itself.

The single engine of the drilling rig drives the screw air compressor and hydraulic system at the same time, which reduces the total power of the diesel engine of the split drilling rig by about 35% and the maintenance cost by 50%.

The drilling rig is equipped with the crawler leveling function, which makes the center of gravity of the drilling rig more stable up and down the slope, and the powerful operation capacity reduces the number of equipment and personnel required in the mine.

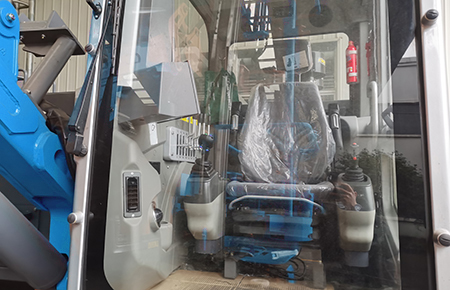

Show details
Front Part

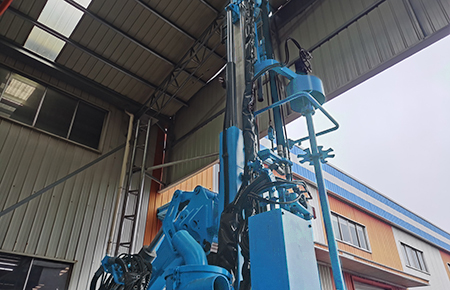

Rod Changer
Technical data
Technical Parameters
Main parameters MWYX423 MWYX453
Working parameters
Hole Range (mm) 115*127 90-127
Hammer Size 3"/4" 3"/4"/5"
Drill Rod Diameter(mm) 68 76
Drill Rod Length(m) 3 3
Drill Rod Storage 7+1 7+1
Economic Drilling Depth(m) 24 24
Dust Collector Dry type(Standard)/Wet type(Option)
Air Compressor
Pressure (Mpa) 1.7 2
F.A.D (m3/min) 12.0 16.0
Diesel Engine
Brand Yuchai Yuchai
Model YC6J220-T300 YC6L310-H300
Power (kW/rpm) 162/2200 230/2000
Drill Arm
Lifting angle (°) 50~-30 50~-30
Swing angle (°) L15 R45 L15 R45
Walking Ability
Max.Walking Speed (km/h) Low: 2km/h  High: 3km/h Low: 2km/h  High: 3km/h
Track frame swing angle (°) ±10 ±10
Rotation Speed (rpm) 0-120 0-120
Rotation Torque (Nm) 2540 2800
Weight (kg) 13000 14000
Length*width*height (Transport) 9*2.36*3 9.5x2.45x3
