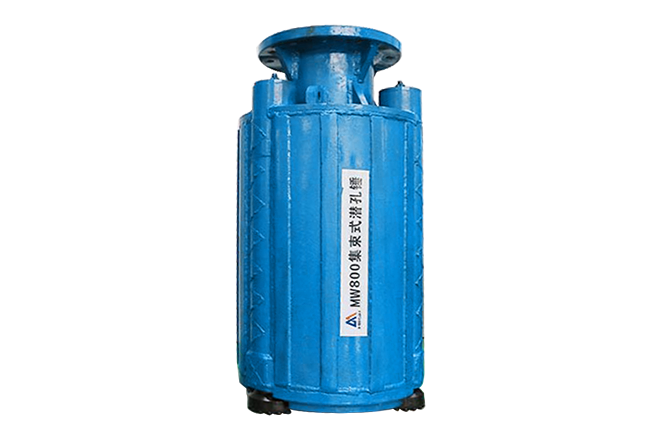

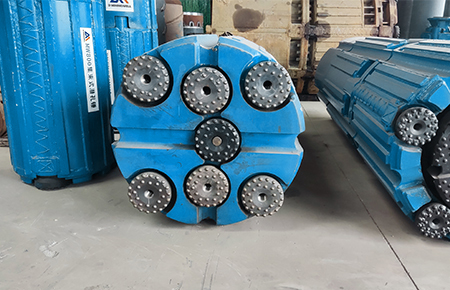

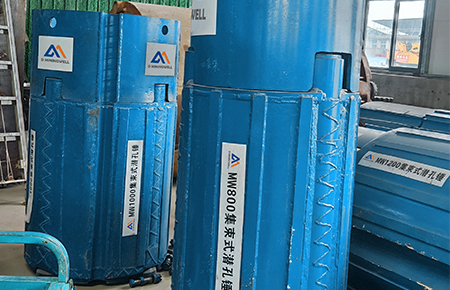

Cluster DTH Hammer

Product Introduction

A rotation drill rig, air compressor and the “DTH drill string” are the essential unit for DTH drilling while the “DTH drill string” is always made up of DTH drill rods, DTH hammer and DTH bits.
As one of key component, the DTH hammer acts as a role of converting the air pressure to the impact energy, simultaneously transferring impact energy and rotation force to DTH bits.

Low Air Pressure DTH Drilling Hammer Bits

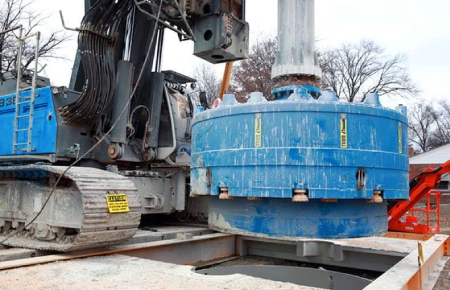

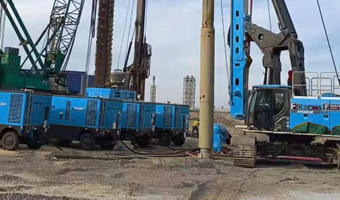

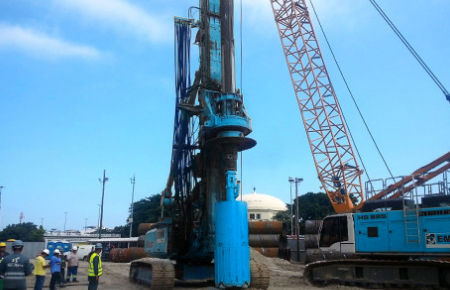

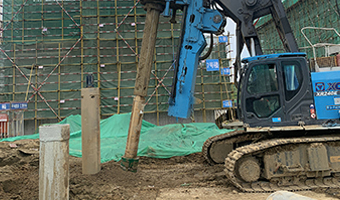

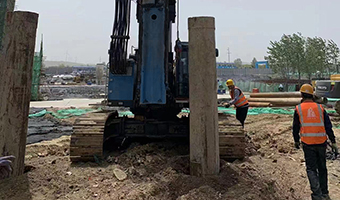

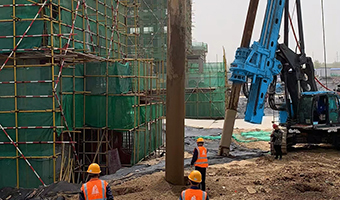

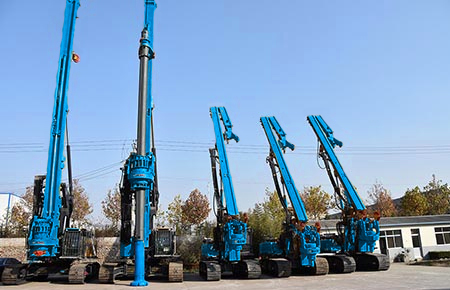

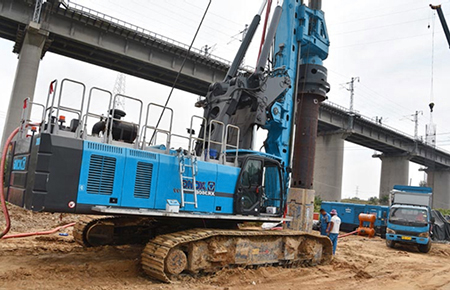

Apply for engineering hole such as drilling blasting hole, guardrail hole in mines, quarries, expressway, the mountain barrier inforcement, anchorage, geothermal air conditioning hole, well-drilling hole etc.

Show details

Technical data

Technical Parameters				Reference Air Volume		Applicable Rig Types
Type	Model	No. of Hammers	Weight(Kg)	Under the lowest pressure of 1Mpa（m3/min）	Under the highest pressure of 2.4Mpa（m3/min）	Rotary Drilling Rig	Long Auger Rig	Rotary Piling Drill	Reverse Circulation Rig
One Time Hole Forming Cluster DTH hammer	MWQC600	4	150	36	104	√	√	√	√
	MWQC800	4	250	48	112	√	√	√	√
	MWQC1000	6	330	72	168	√	√	√	√
	MWQC1200	7	420	84	196	√	√	√	√
	MWQC1500	10	700	120	280	√		√	√
Secondary Reaming Cluster DTH hammer	MWQC1000-1500K	6	450	72	168	√		√	√
	MWQC1200-1800K	9	580	108	252	√		√	√
	MWQC1200-2000K	12	650	144	336	√		√	√
	MWQC1200-2200K	12	700	144	336	√		√	√
Combined DTH hammer	MWQC1000Z	4+1	580	90	150	√		√	√
	MWQC1200Z	5+1	950	122	196	√		√	√
	MWQC1500Z	7+1	1250	146	222	√		√	√
	MWQC1800Z	9+1	1450	170	248	√		√	√
	MWQC2000Z	12+1	1700	206	320	√		√	√
Cluster Ring Cutting DTH Hammer	MWQC1200H	4	350	48	104	√		√	√
	MWQC1500H	6	670	72	156	√		√	√
	MWQC1800H	8	1000	96	208	√		√	√
	MWQC2000H	9	1200	108	234	√		√	√
	MWQC2200H	11	1500	132	286	√		√	√
