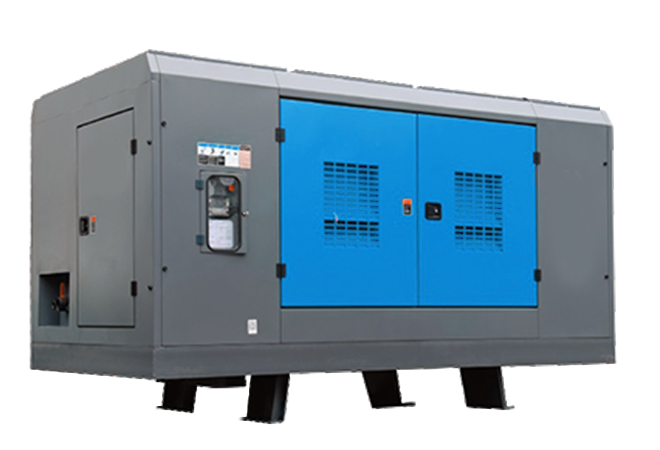

Deep well screw air compressor S Series

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

The Skid-mounted Mobile Diesel Screw Air compressor machines For deep water well drill has a skid-mounted base, which is convenient to connect with other transport equipment.  It is mainly suitable for the workplace in where we need frequently to move device for long-distance.
Product Introduction
New designed protected cooler for higher efficiency and better safety protection. Full body sound absorbent cotton and rear car silencer designed to make operate noise reduce 40% less than normal products.

This series primarily used with water well and geothermal project required ф115 - 254 mm drill rigs and various other air source requirement. To add to the benefits of the portable compressors, this series specially good for continues running and with transportation requirement in consideration, upgraded for better durability and lower fuel consumption .All with EU3A compatible engines.

1. Full series product optimized for stronger frame and better towing protection and safety; stronger roof loading capabilities to meet customer load carry needs with rubber protection strips.
2. All pressure pipes are connected with steel tubes,it has excellent sealing and protect rubber from prevent aging,never wear and has attractive appearance.
3. With Patent designed safety air filter unit and stainless steel air inlet pipes for guaranteed dust filter ability and better protection against dirty air due to rubber hose damage.
4. All new designed cooler with independent modular unit and secured by structural component with cushion pad without any pressure points, effectively eliminating cooler damage by shroud deformation;independent damaged unit replacement made easy without removing the cooler assembly.
5. Diesel portable compressors all with international brand name controller with optimized interface for only 3 switches to operate, power, on and off。 Automatic preheating, loading and unloading process, pressure control and engine fuel injection,eliminating high pressure stop and oil outburst. Controller with water and moisture proof.
6. Easy access to all maintenance parts with document and tool box for better management of tools, records and safer for machine operation.
7. Electrical portable machine with breaker and power switch easy to access and protected for convenience and safety.
Technical data
Fixed Diesel Screw Air Compressor
Model Air End Rated FAD (m³/min) Rated Pressure
Engine Power Weight (kg) Dimension (mm)
S60 Single Stage Compression 18 18 Yuchai 162kw 3000 3220*1670*1950
S60T Two Stage Compression 18 18 Yuchai
3000 3220*1670*1950
S85T Two Stage Compression 24 22 Yuchai
3450 3560*1830*2050
S85T-II Two Stage Compression 24 22 Cummins Naitonal II 239kw 3450 3560*1830*2050
S95T Two Stage Compression 29 24 Yuchai 295kw 4300 3950*2000*2300
S95T-II Two Stage Compression 29 24 Yuchai Naitonal II
4300 3950*2000*2300
S98T Two Stage Compression 30 24 Yuchai 295kw 4350 3950*5000*2300
S98T-II Two Stage Compression 30 24 Yuchai Naitonal II 295kw 4350 3950*2000*2300
S100D Two Stage Compression 31 25 FAWDE
4600 3960*2000*2000
S100T Two Stage Compression 31 25 FAWDE 309kw 4500 3960*2000*2000
S100T-II Two Stage Compression 31 25 FAWDE Naitonal II 309kw 4500 3960*2000*2000
S125D Two Stage Compression 36 30 Cummins 410kw 5500 4220*2000*2300
