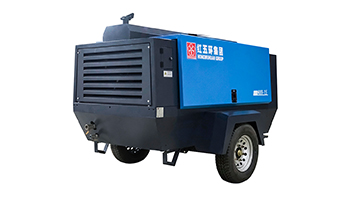

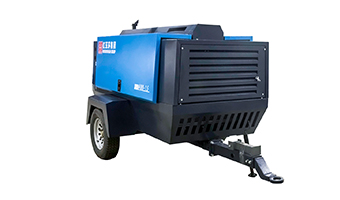

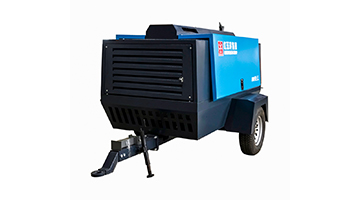

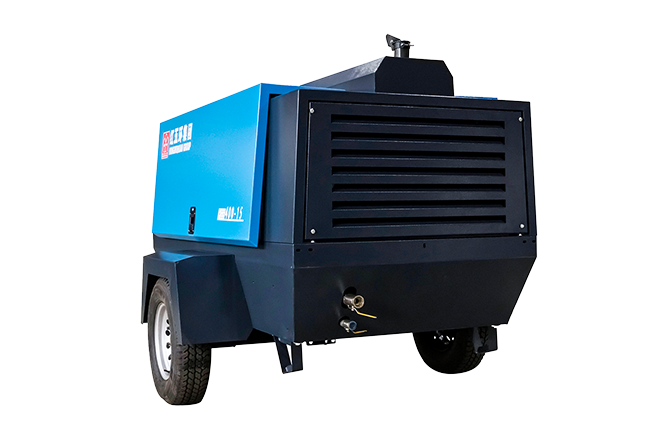

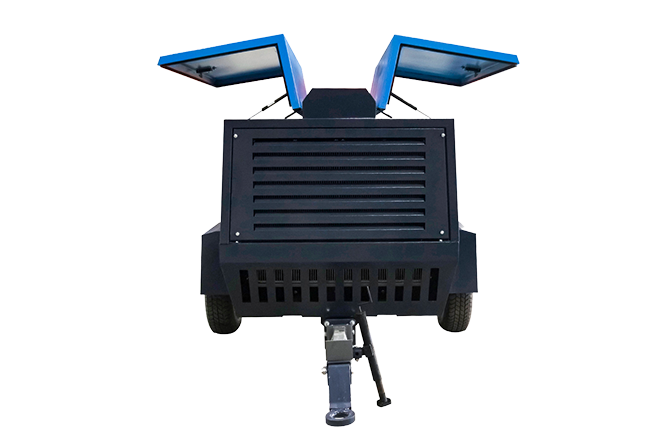

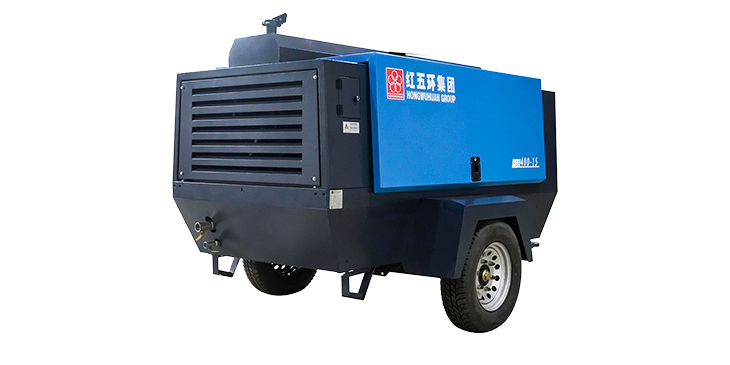

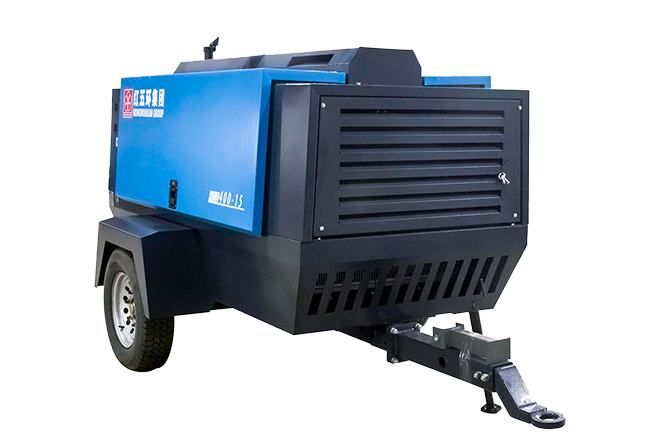

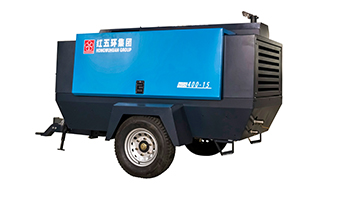

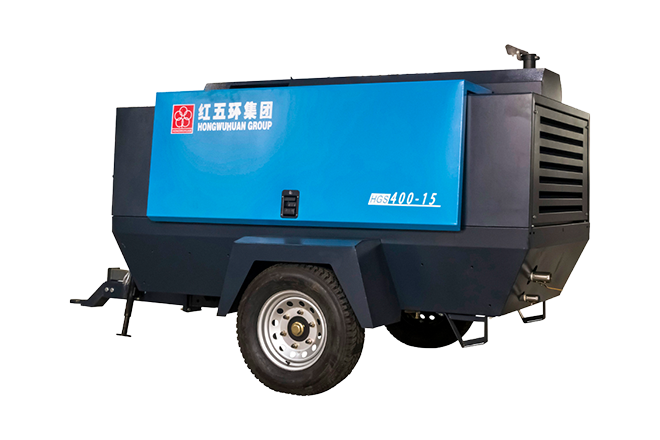

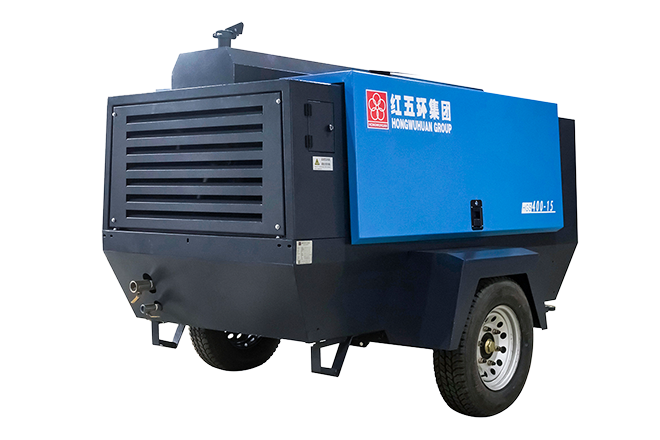

HGS400-15 Diesel Portable Screw Air Compressor

Brand Name: D miningwell
Certification: CE, ISO
Minimum Order Quantity: 1 set
Packaging Details: 40HQ-20GP
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

The Hongwuhuan HGS400-15 is a high-performance diesel-powered portable screw air compressor designed for energy, mining, and construction industries. It features a lubricated screw type design, 14 bar working pressure, and a mute operation, ensuring efficient and reliable air supply for heavy-duty applications.
Share:
Product Introduction

When it comes to powering tools and equipment in demanding industries like mining, construction, and energy, the Hongwuhuan HGS400-15 Diesel Portable Screw Air Compressor stands out as a robust and reliable solution.
Built with a diesel power source and a screw-type compressor mechanism, this unit delivers consistent air pressure and flow. The lubricated design enhances durability and efficiency, reducing wear and tear even during prolonged operation.
Its portable configuration (equipped with a wheeled trailer) allows for easy transportation between job sites, making it a versatile choice for projects that require mobility. The mute operation is a notable advantage, minimizing noise pollution in work environments – a crucial factor for both worker comfort and compliance with noise regulations.
Engineered for 14 bar working pressure and a flow rate of 10m³/min, the HGS400-15 meets the high air demand of heavy-duty tools such as jackhammers, pneumatic drills, and sandblasting equipment. Whether it’s a mining operation deep underground or a construction site in the heart of a city, this air compressor delivers the power you need.
Originating from Zhejiang, China, and backed by a 1-year warranty on core components, the Hongwuhuan HGS400-15 is a new, high-quality machine that comes with machinery test reports and video outgoing inspections, ensuring you receive a product that meets strict quality standards.

Show details
Technical data
Parameter Category Specification
Power Source Diesel
Type Screw
Gas Type Air
Mute Yes
Warranty (Core Components) 1 Year
Video Outgoing-Inspection Provided
Brand Name Hongwuhuan
Dimension (L*W*H) 3860×1900×1960
Weight 2450
Configuration Portable
Working Pressure 14 bar
Lubrication Style Lubricated
Core Components Engine, Motor
Machinery Test Report Provided
Place of Origin Zhejiang, China
Model Number HGS 400-15
Product Name Air Compressor
F.A.D 10m³/min
Condition New
Applicable Industries Energy & Mining, Construction works
Marketing Type Other

Chart 2: Xinchai Diesel Engine Parameters

Engine Parameter Unit Specification
Manufacturer - Xinchai
Model - 4D35ZT
Output Power at Rated Speed kW 73.5
Coolant Type - Water
Coolant Capacity Kg 28
Number of Cylinders Unit 4
Fuel Tank Volume Liter 80
Diesel Engine Lubricating Oil Volume Liter 11.2

Chart 3: Overall Dimensions and Weight (Two-Wheel Version)

Dimension/Weight Item Unit Specification
Overall Length (Two-Wheel Trailer Type) mm 2880 (Including front tow bar)
Overall Width (Two-Wheel Trailer Type) mm 1740
Overall Height (Two-Wheel Trailer Type) mm 1760
Overall Weight Kg 1500
Air Outlet Valve Size Inch G1-1/2”, G3/4”

Chart 4: Key Component Configuration Table

Serial Number Component Name Origin Supplier Company Remarks
1 Screw Airend Zhejiang Baosi -
2 Control Valves Jiangsu/Shanghai Nantong Hongxing/Sitianbo -
3 Diesel Engine Zhejiang Xinchai -
4 Cooler Jiangsu Yuecheng -
5 Three Filters (Air/Oil/Fuel) Jiangsu Shinuo -
6 Battery Jiangsu Xingyun -
7 Fan Blade Jiangsu Xuelong -
8 Oil Separator Tank
