Mechanical top drive wireline core drilling rig

Brand Name: D miningwell
Minimum Order Quantity: 1 set
Packaging Details: Standard Export Packing
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union

"MWDL series" is the latest full-hydraulic rope core exploration drilling rig developed by D Mingwell. "MWDL series" is divided into 300400500600, the most complete and most efficient models in the industry. "MWGL series" integrates the latest technology of D Mingwell, and can be Customize with a wide range of needs to suit a variety of work environments. Hydraulic clamping system makes drilling angle 45°-90° drilling tasks can also be easily accomplished.
The machine comes with a mud dyeing pump to make the work easier and save user costs. The drilling rig is equipped with a high-performance hydraulic oil pump to make the machine more tidy, more flexible and more stable "MWDL series" adopts steel structure and thickened steel plate as a whole to increase the stability of the machine and make it more sturdy and durable. The operating system has been debugged by D Mingwell engineers for many generations, which is easy to learn and easy to operate.
Product Introduction

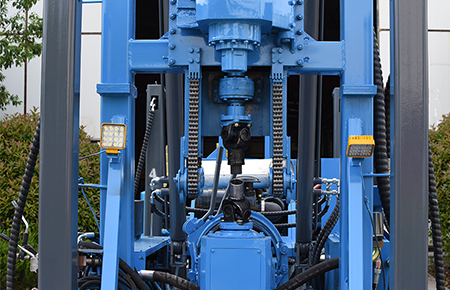

1. The drilling rig power head is made by the industry's advanced manufacturing process, suitable for high-torque and high-speed drilling operations, and has strong power while ensuring a compact structure.
2. The unique balanced pressure drilling system in the industry can effectively balance the weight of the drill string and precisely control the drilling pressure, so that the drilling rig can better adapt to the complex formation environment and the requirements of deep hole drilling technology.

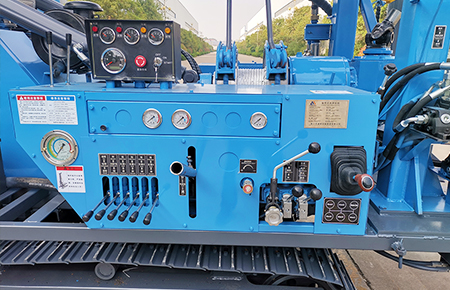

3. The industry's unique electro-hydraulic central control system, the hand-operated console centrally realizes all power operations and drilling operations, and at the same time fully monitors the machine status, which is convenient for operation and fault diagnosis. The drill pipe gripper has the function of automatic pressure maintaining and clamping, which can be controlled synchronously with the chuck type power head, and the response is fast, safe and reliable.

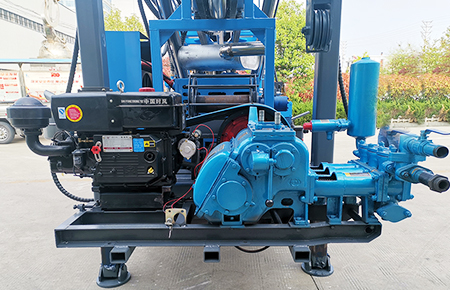

4. D Mingwell's proprietary drilling rig mud processing system adopts customized high-pressure mud pump, which is light in weight and small in pulse, and can handle high-solid phase mud and circulating mud.
Show details
Technical data
Technical Parameters MWDL350 MWDL450 MWDL600 MWDL750
Drill pipe specification/Drilling depth NTW/350 NTW/450 NTW/600 NTW/750
Drill pipe specification/Drilling depth HTW/200 HTW/300 HTW/400 HTW/500
Drilling Diameter (mm) 60-110 60-110 60-110 60-110
Mud pump No. BW 90-3 BW 90-3 BW 90-3 BW 90-3
Walking speed (Kw) 2.5 2.5 2.5 2.5
Lifting force (T) 10 10 10 12
Drilling angle(°) 45-90 45-90 45-90 45-90
Weight(T) 6.5 6.8 7 7.5
Power(Kw) Yuchai 75 Yuchai 85 Yuchai 96 Yuchai 118
Gradient (°) 30 30 30 30
Drill Pipe  (m) 1.5 1.5 1.5 1.5
Rotation speed (rpm) 0-1200 0-1200 0-1200 0-1200
Dimension 4800*1700*2280 4800*1700*2280 5300*2000*2300 5300*2000*2300
